Century Spring

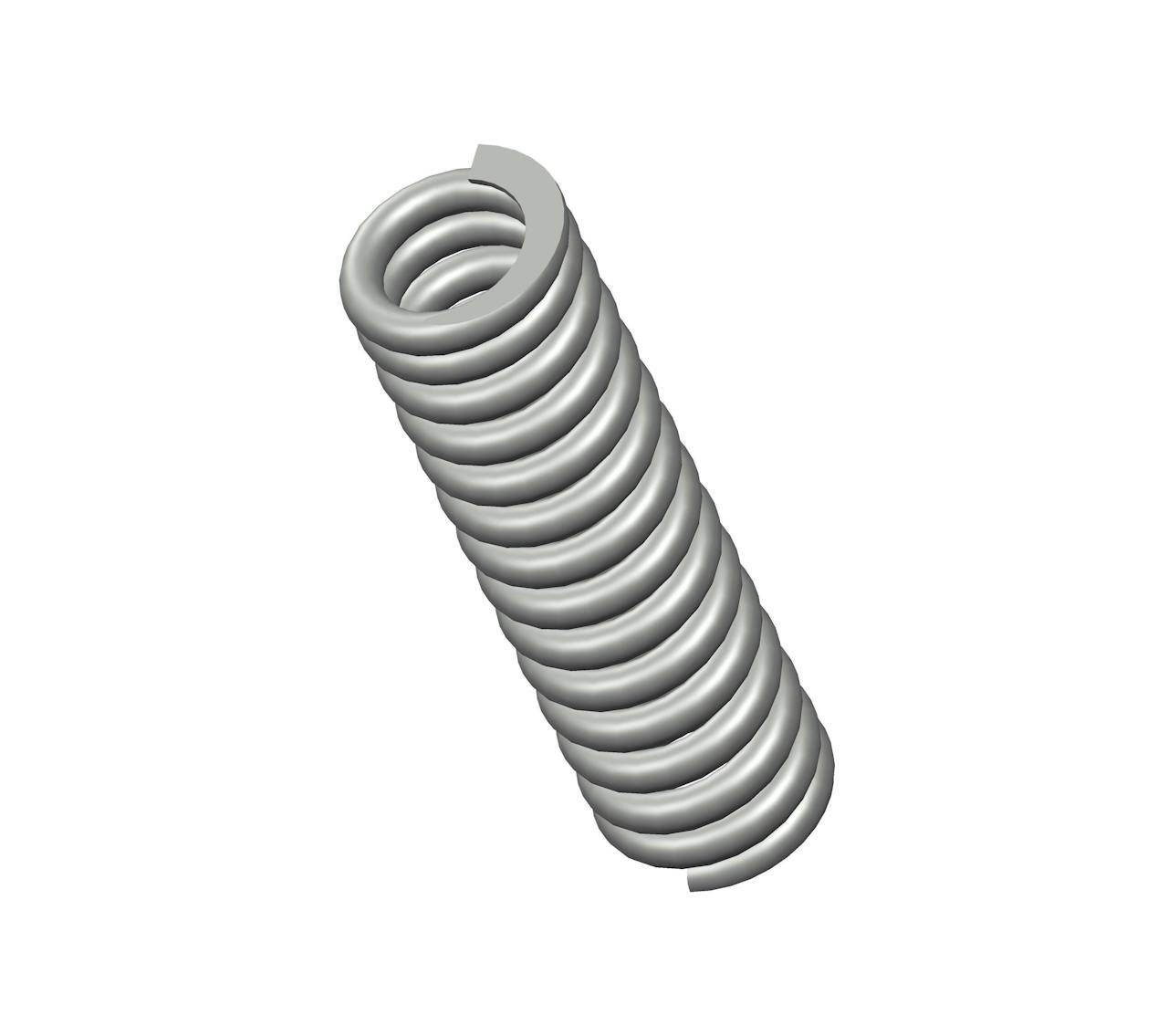

11438CS - 2.25" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 14.5 coils and closed & ground ends. This spring features an O.D. of 0.625", and an I.D. of 0.401".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11438
Ends Closed & Ground
Finish Zinc
Free Length 2.25 in
Inside Diameter 0.401 in
Material Spring Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 134 lbs/in
SKU 11438CS
Solid Length 1.62 in
Suggested Max Deflection 0.5 in
Suggested Max Load 68 lbf
Total Coils 14.5
Wire Diameter 0.112 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11438
Ends Closed & Ground
Finish Zinc
Free Length 57.15 mm
Inside Diameter 10.19 mm
Material Spring Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 23.46 N/mm
SKU 11438CS
Solid Length 41.15 mm
Suggested Max Deflection 12.7 mm
Suggested Max Load 302.46 N
Total Coils 14.5
Wire Diameter 2.84 mm
The 11438 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 11438CS compression spring is designed with a free length of 3.38" total of 12.5 coils, and a rate of 47 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 11438 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
