11379CS - 0.88" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

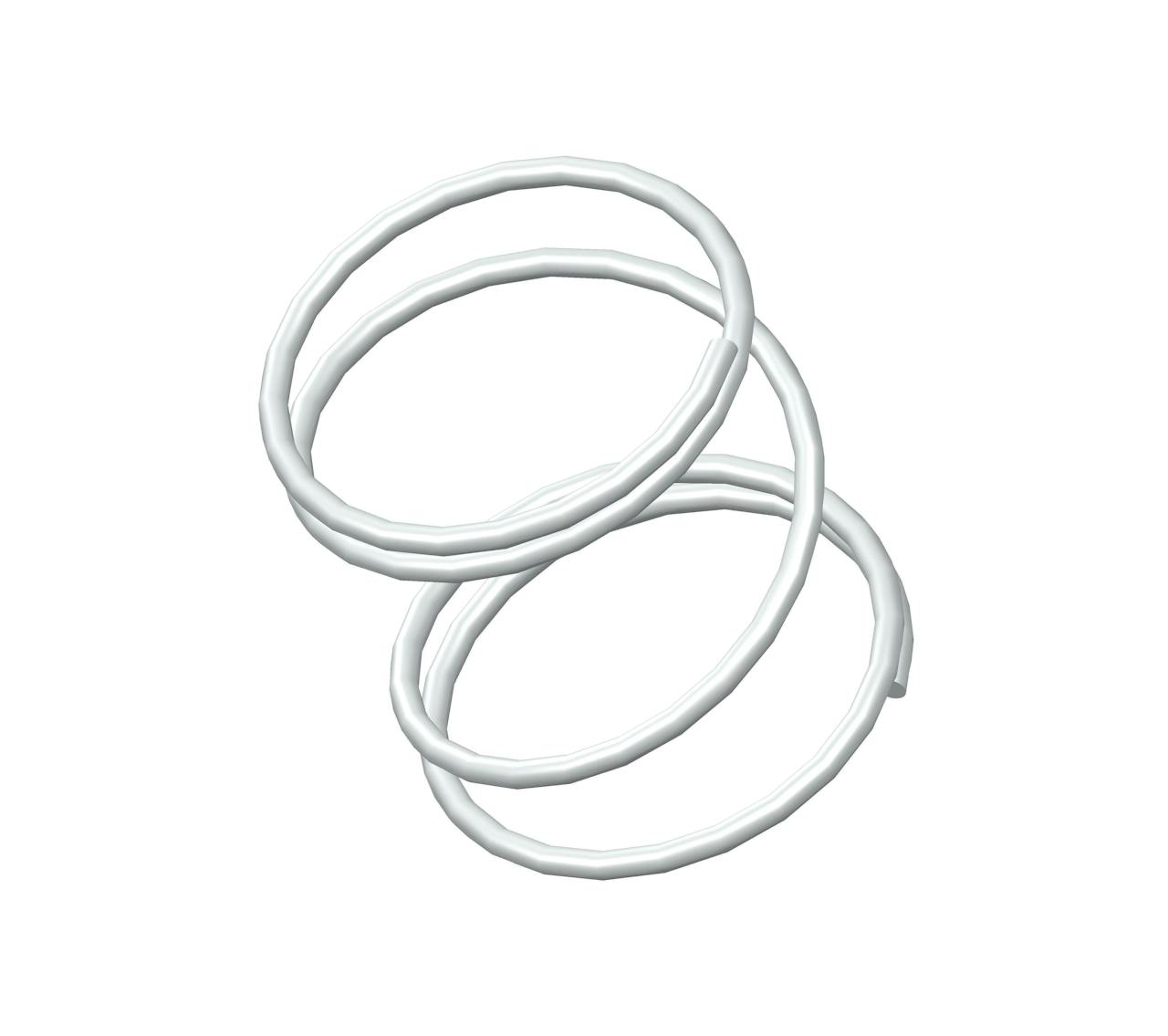

Compression spring manufactured from 302/304 stainless steel with 4 coils and closed ends. This spring features an O.D. of 0.781", and an I.D. of 0.691".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 11379 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.88 in |
| Inside Diameter | 0.691 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.781 in |
| Part Type | Standard |
| Rate | 6.6 lbs/in |
| SKU | 11379CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.65 in |
| Suggested Max Load | 4.3 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.045 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 11379 |
| Ends | Closed |
| Finish | None |
| Free Length | 22.35 mm |
| Inside Diameter | 17.55 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 19.84 mm |
| Part Type | Standard |
| Rate | 1.16 N/mm |
| SKU | 11379CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 16.51 mm |
| Suggested Max Load | 19.13 N |
| Total Coils | 4 |
| Wire Diameter | 1.14 mm |
The compression spring 11379CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 11379 compression spring design exhibits exceptional tensile strength and resilience.
The 11379 design is manufactured with a free length of 0.88", with an outer diameter of 0.781", an inner diameter of 0.691", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.6 lbs/in.
The 11379CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 11379 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
