Century Spring

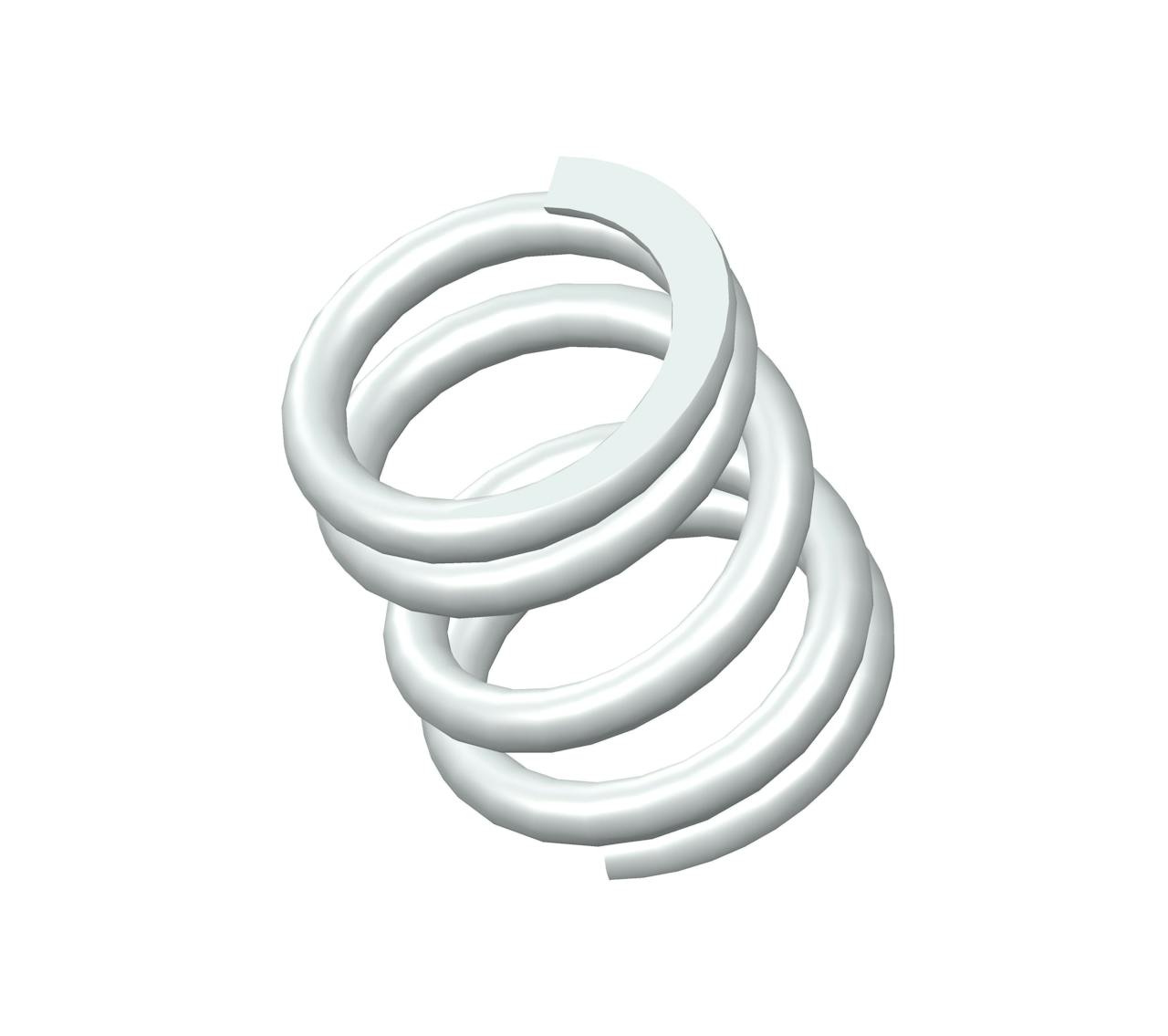

11353CS - 1.38" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 4.5 coils and closed & ground ends. This spring features an O.D. of 1.219", and an I.D. of 0.895".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11353
Ends Closed & Ground
Finish None
Free Length 1.38 in
Inside Diameter 0.895 in
Material 302/304 Stainless Steel
Outside Diameter 1.219 in
Part Type Standard
Rate 297 lbs/in
SKU 11353CS
Solid Length 0.73 in
Suggested Max Deflection 0.31 in
Suggested Max Load 91 lbf
Total Coils 4.5
Wire Diameter 0.162 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11353
Ends Closed & Ground
Finish None
Free Length 35.05 mm
Inside Diameter 22.73 mm
Material 302/304 Stainless Steel
Outside Diameter 30.96 mm
Part Type Standard
Rate 52 N/mm
SKU 11353CS
Solid Length 18.54 mm
Suggested Max Deflection 7.87 mm
Suggested Max Load 404.77 N
Total Coils 4.5
Wire Diameter 4.11 mm
The compression spring 11353CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 11353 compression spring design exhibits exceptional tensile strength and resilience.

The 11353 design is manufactured with a free length of 1.38", with an outer diameter of 1.219", an inner diameter of 0.895", and a total of 4.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 297 lbs/in.

The 11353CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 11353 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
