Century Spring

11217 - 2.25 Inch Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

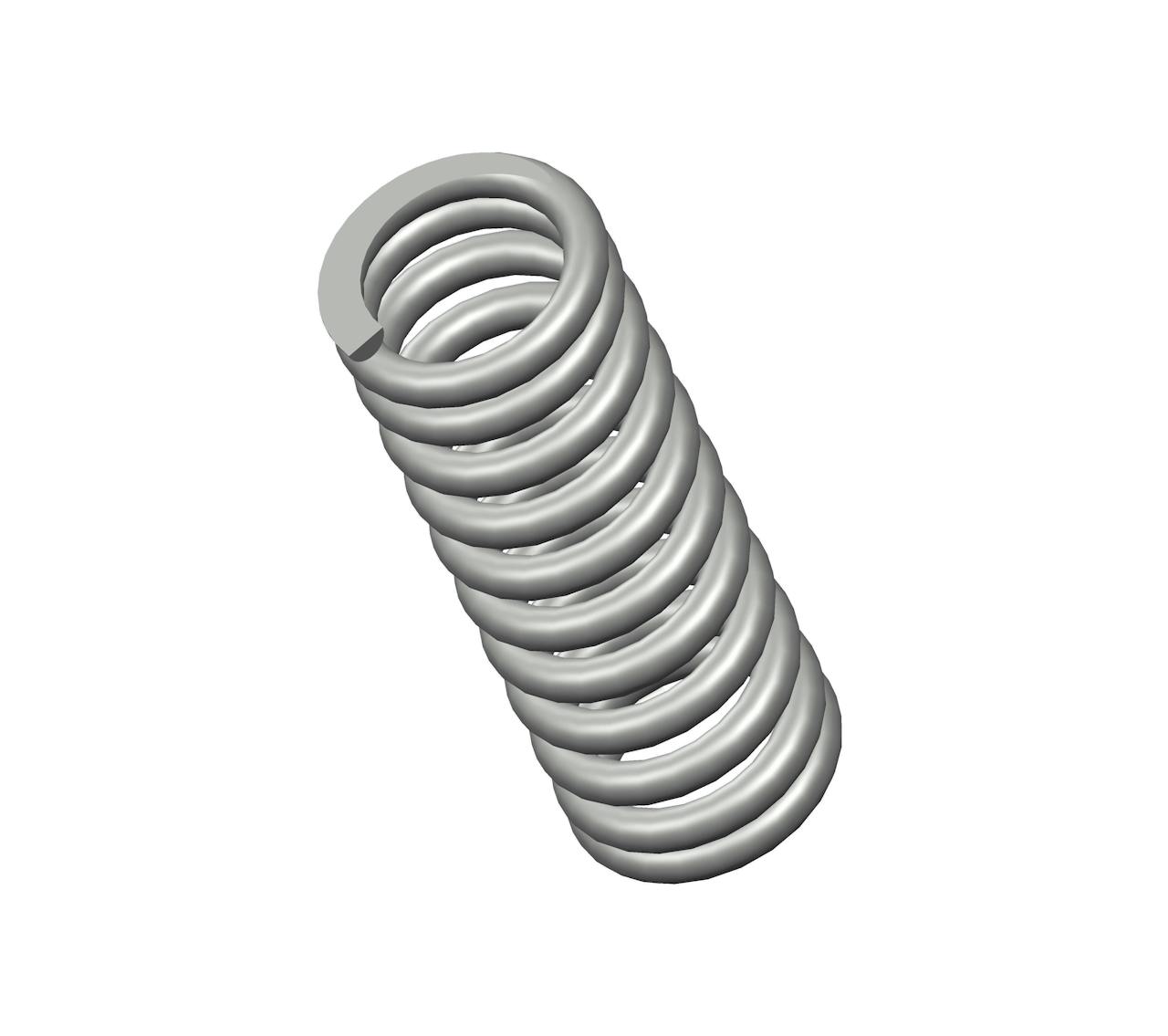

Compression spring manufactured from Spring Steel with 11.3 coils and Closed & Ground ends. This spring features an O.D. of 0.812 Inch, and an I.D. of 0.562 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11217
Ends Closed & Ground
Finish Zinc
Free Length 2.25 in
Inside Diameter 0.562 in
Material Spring Steel
Outside Diameter 0.812 in
Part Type Standard
Rate 117 lbs/in
SKU 11217CS
Solid Length 1.41 in
Suggested Max Deflection 0.63 in
Suggested Max Load 74 lbf
Total Coils 11.3
Wire Diameter 0.125 in
The 11217 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality hard drawn and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 11217CS compression spring is designed with a free length of 0.53" total of 6 coils, and a rate of 7.8 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 11217 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
