Century Spring

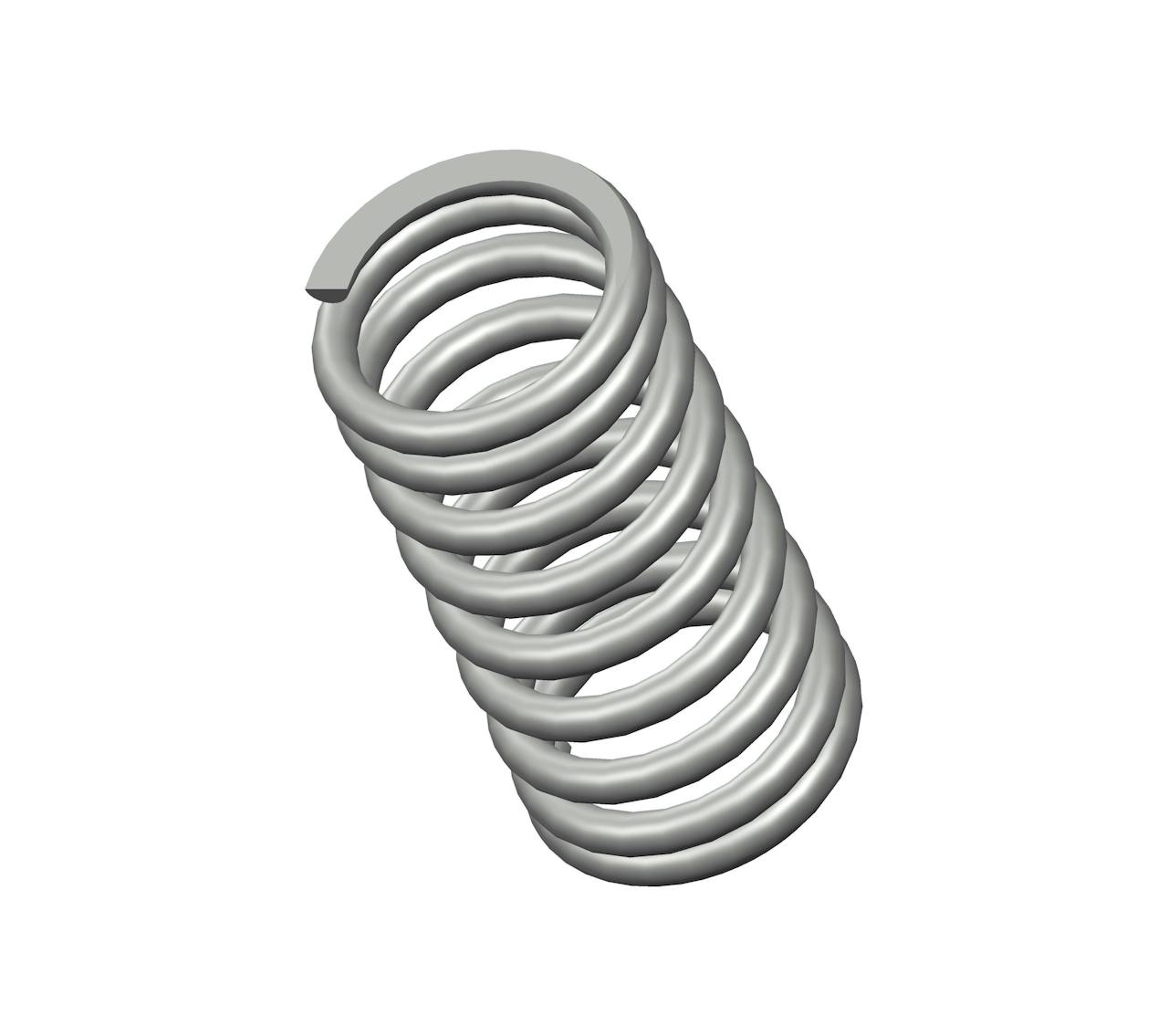

11213CS - 2.38" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 9 coils and closed ends. This spring features an O.D. of 1.172", and an I.D. of 0.876".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11213
Ends Closed
Finish Zinc
Free Length 2.38 in
Inside Diameter 0.876 in
Material Spring Steel
Outside Diameter 1.172 in
Part Type Standard
Rate 92 lbs/in
SKU 11213CS
Solid Length 1.48 in
Suggested Max Deflection 0.9 in
Suggested Max Load 82 lbf
Total Coils 9
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11213
Ends Closed
Finish Zinc
Free Length 60.45 mm
Inside Diameter 22.25 mm
Material Spring Steel
Outside Diameter 29.77 mm
Part Type Standard
Rate 16.11 N/mm
SKU 11213CS
Solid Length 37.59 mm
Suggested Max Deflection 22.86 mm
Suggested Max Load 364.74 N
Total Coils 9
Wire Diameter 3.76 mm
The 11213 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 11213CS compression spring is designed with a free length of 1.53" total of 5 coils, and a rate of 304 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 11213 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
