11164CS - 1.63" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

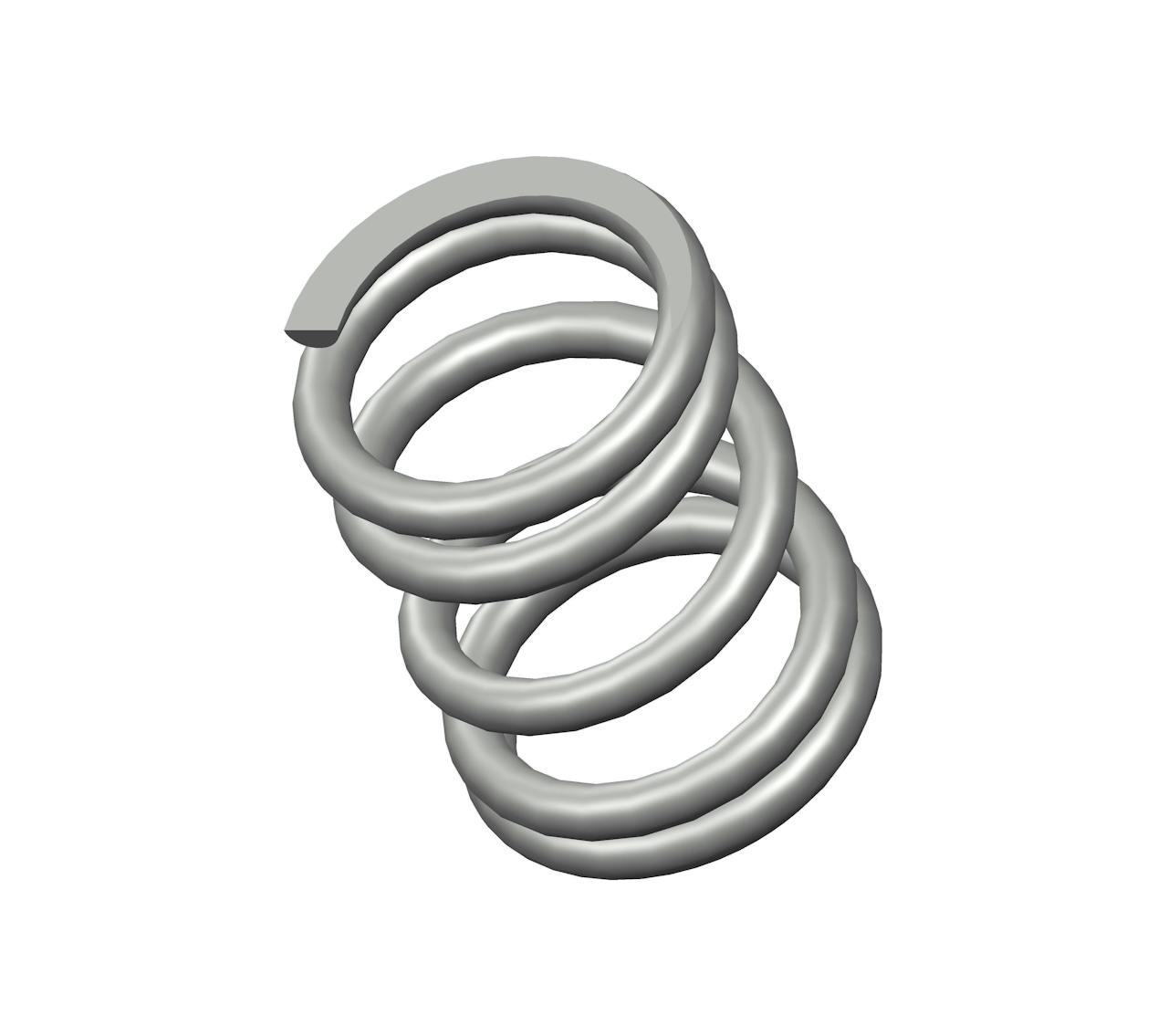

Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 1.219", and an I.D. of 0.907".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11164
Ends Closed & Ground
Finish Zinc
Free Length 1.63 in
Inside Diameter 0.907 in
Material Spring Steel
Outside Diameter 1.219 in
Part Type Standard
Rate 236 lbs/in
SKU 11164CS
Solid Length 0.78 in
Suggested Max Deflection 0.39 in
Suggested Max Load 92 lbf
Total Coils 5
Wire Diameter 0.156 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11164
Ends Closed & Ground
Finish Zinc
Free Length 41.4 mm
Inside Diameter 23.04 mm
Material Spring Steel
Outside Diameter 30.96 mm
Part Type Standard
Rate 41.32 N/mm
SKU 11164CS
Solid Length 19.81 mm
Suggested Max Deflection 9.91 mm
Suggested Max Load 409.22 N
Total Coils 5
Wire Diameter 3.96 mm
The 11164CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.156" diameter spring steel, the 11164 spring design exhibits reliable strength across its 5 active coils, withstanding repeated compression cycles with a maximum load of 92 lbf without succumbing to fatigue.

We manufacture the 11164 design to provide a compression spring that is 1.63" long at rest and provides a consistent rate of 236 lbs/in along its recommended maximum of 0.39" deflection. For best results, your application should fully accommodate the inner (0.907") and outer (1.219") diameters of this spring and be designed for its closed & ground end configuration.
