11120CS - 1.97" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

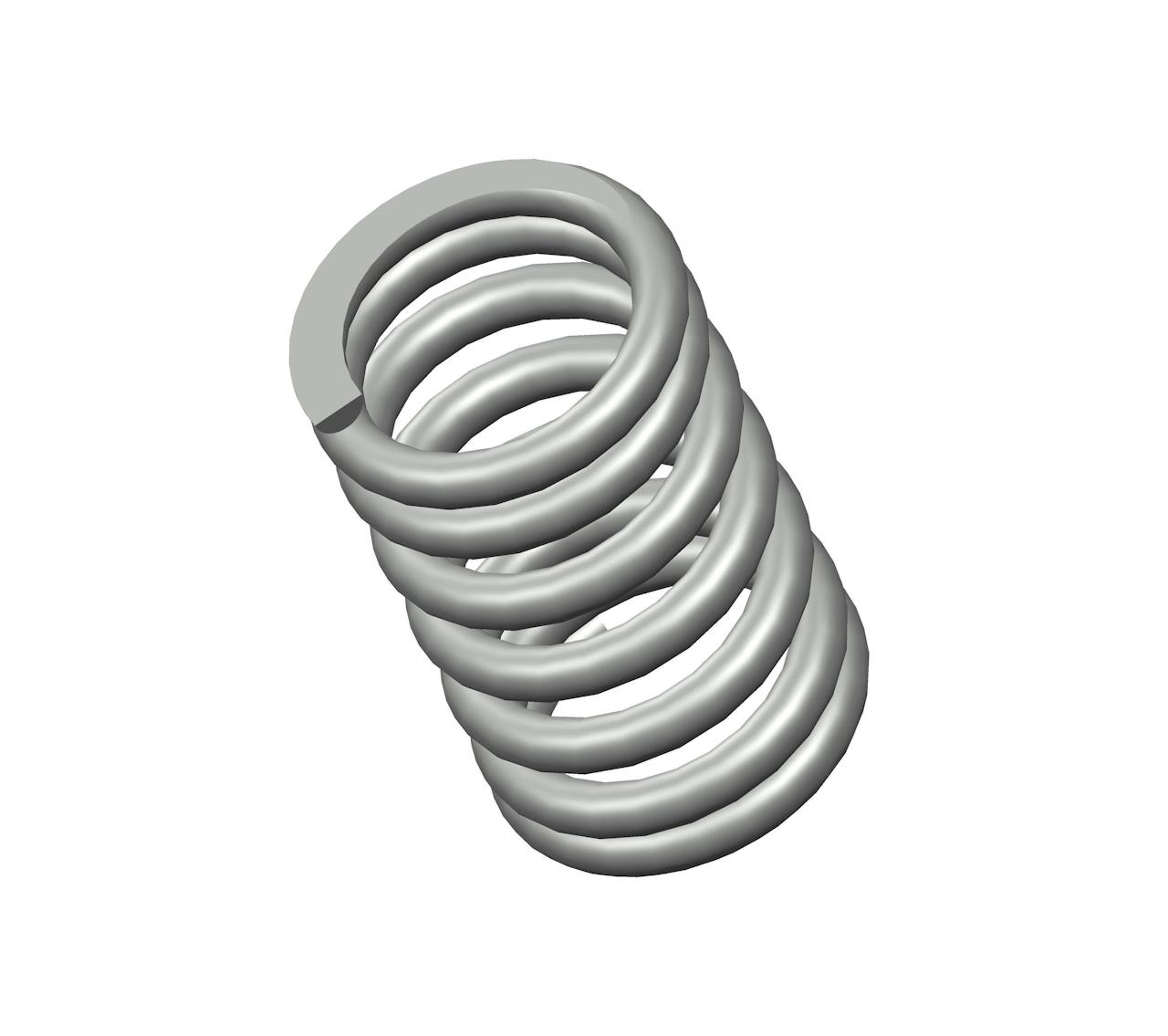

Compression spring manufactured from spring steel with 7.25 coils and closed & ground ends. This spring features an O.D. of 1.219", and an I.D. of 0.879".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11120
Ends Closed & Ground
Finish Zinc
Free Length 1.97 in
Inside Diameter 0.879 in
Material Spring Steel
Outside Diameter 1.219 in
Part Type Standard
Rate 198 lbs/in
SKU 11120CS
Solid Length 1.23 in
Suggested Max Deflection 0.6 in
Suggested Max Load 118 lbf
Total Coils 7.25
Wire Diameter 0.17 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11120
Ends Closed & Ground
Finish Zinc
Free Length 50.04 mm
Inside Diameter 22.33 mm
Material Spring Steel
Outside Diameter 30.96 mm
Part Type Standard
Rate 34.67 N/mm
SKU 11120CS
Solid Length 31.24 mm
Suggested Max Deflection 15.24 mm
Suggested Max Load 524.86 N
Total Coils 7.25
Wire Diameter 4.32 mm
The 11120 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 11120CS compression spring is designed with a free length of 2.41" total of 5 coils, and a rate of 343 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 11120 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
