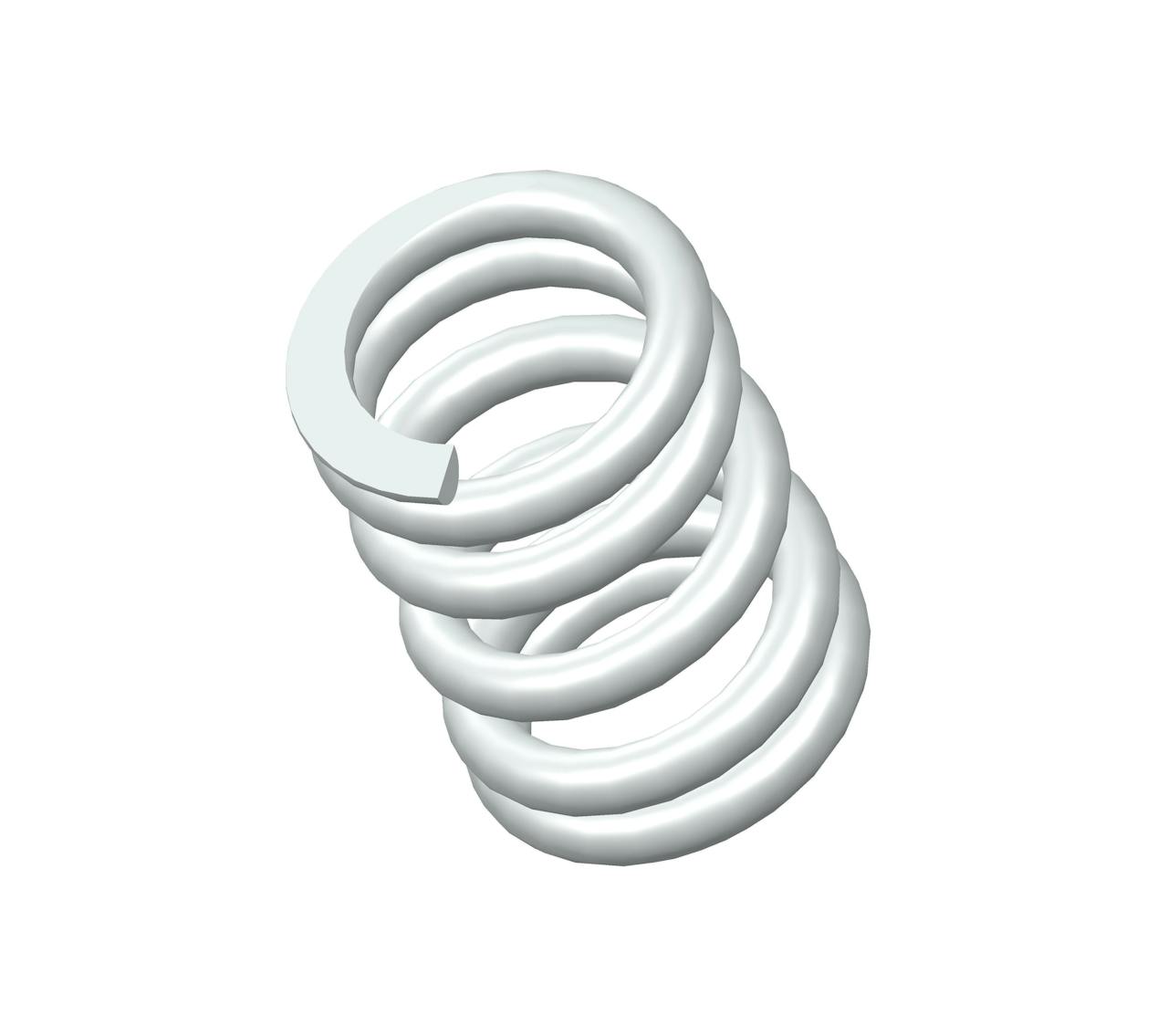

10982CS - 0.88" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.625", and an I.D. of 0.431".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10982
Ends Closed & Ground
Finish None
Free Length 0.88 in
Inside Diameter 0.431 in
Material 302/304 Stainless Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 219 lbs/in
SKU 10982CS
Solid Length 0.53 in
Suggested Max Deflection 0.2 in
Suggested Max Load 43 lbf
Total Coils 5.5
Wire Diameter 0.097 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10982
Ends Closed & Ground
Finish None
Free Length 22.35 mm
Inside Diameter 10.95 mm
Material 302/304 Stainless Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 38.35 N/mm
SKU 10982CS
Solid Length 13.46 mm
Suggested Max Deflection 5.08 mm
Suggested Max Load 191.26 N
Total Coils 5.5
Wire Diameter 2.46 mm
The compression spring 10982CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 10982 compression spring design exhibits exceptional tensile strength and resilience.

The 10982 design is manufactured with a free length of 0.88", with an outer diameter of 0.625", an inner diameter of 0.431", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 219 lbs/in.

The 10982CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 10982 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
