10942CS - 0.69" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

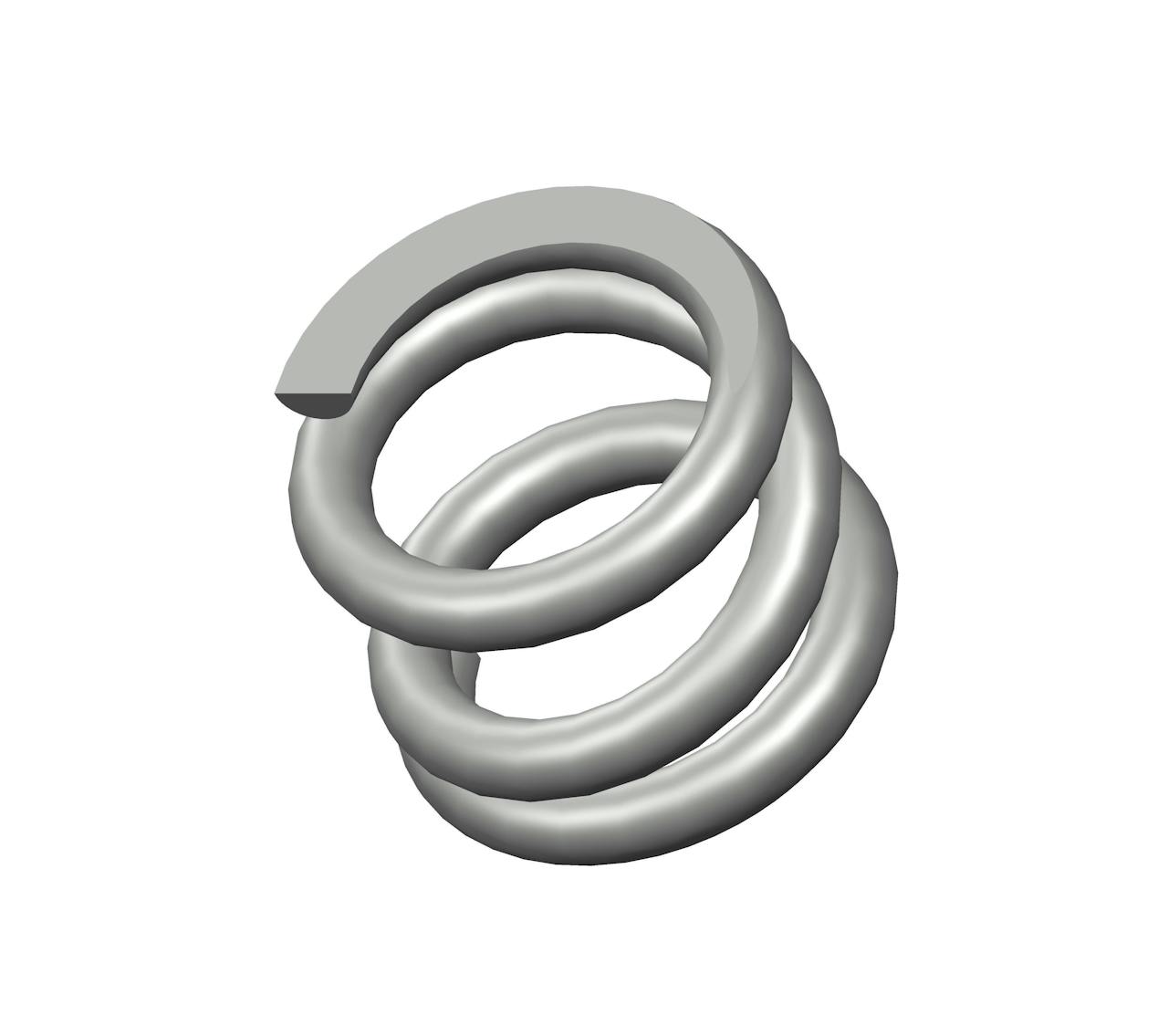

Compression spring manufactured from spring steel with 3 coils and closed & ground ends. This spring features an O.D. of 0.875", and an I.D. of 0.605".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10942
Ends Closed & Ground
Finish Zinc
Free Length 0.69 in
Inside Diameter 0.605 in
Material Spring Steel
Outside Diameter 0.875 in
Part Type Standard
Rate 1178 lbs/in
SKU 10942CS
Solid Length 0.41 in
Suggested Max Deflection 0.07 in
Suggested Max Load 84 lbf
Total Coils 3
Wire Diameter 0.135 in
The compression spring 10942CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 10942 compression spring design exhibits exceptional tensile strength and resilience.

The 10942 design is manufactured with a free length of 0.69", with an outer diameter of 0.875", an inner diameter of 0.605", and a total of 3 coils, expertly designed to deliver consistent compression characteristics including a rate of 1178 lbs/in.

The 10942CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 10942 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
