Century Spring

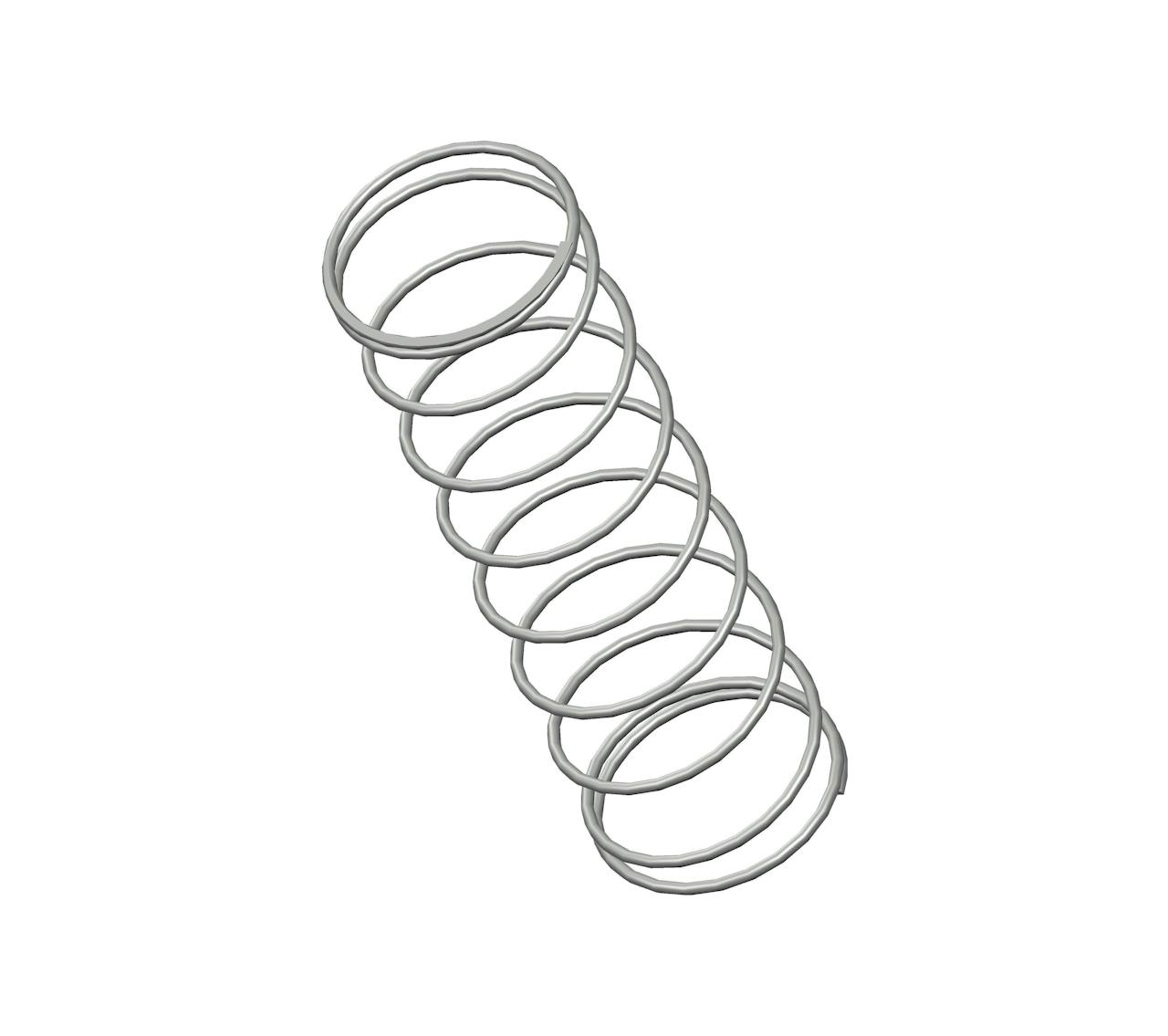

10935CS - 2.84" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 10 coils and closed ends. This spring features an O.D. of 0.859", and an I.D. of 0.777".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10935
Ends Closed
Finish None
Free Length 2.84 in
Inside Diameter 0.777 in
Material Spring Steel
Outside Diameter 0.859 in
Part Type Standard
Rate 0.93 lbs/in
SKU 10935CS
Solid Length 0.45 in
Suggested Max Deflection 2.4 in
Suggested Max Load 2.2 lbf
Total Coils 10
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10935
Ends Closed
Finish None
Free Length 72.14 mm
Inside Diameter 19.74 mm
Material Spring Steel
Outside Diameter 21.82 mm
Part Type Standard
Rate 0.16 N/mm
SKU 10935CS
Solid Length 11.43 mm
Suggested Max Deflection 60.96 mm
Suggested Max Load 9.79 N
Total Coils 10
Wire Diameter 1.04 mm
The 10935CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.041" diameter spring steel, the 10935 spring design exhibits reliable strength across its 10 active coils, withstanding repeated compression cycles with a maximum load of 2.2 lbf without succumbing to fatigue.

We manufacture the 10935 design to provide a compression spring that is 2.84" long at rest and provides a consistent rate of 0.93 lbs/in along its recommended maximum of 2.4" deflection. For best results, your application should fully accommodate the inner (0.777") and outer (0.859") diameters of this spring and be designed for its closed end configuration.
