Century Spring

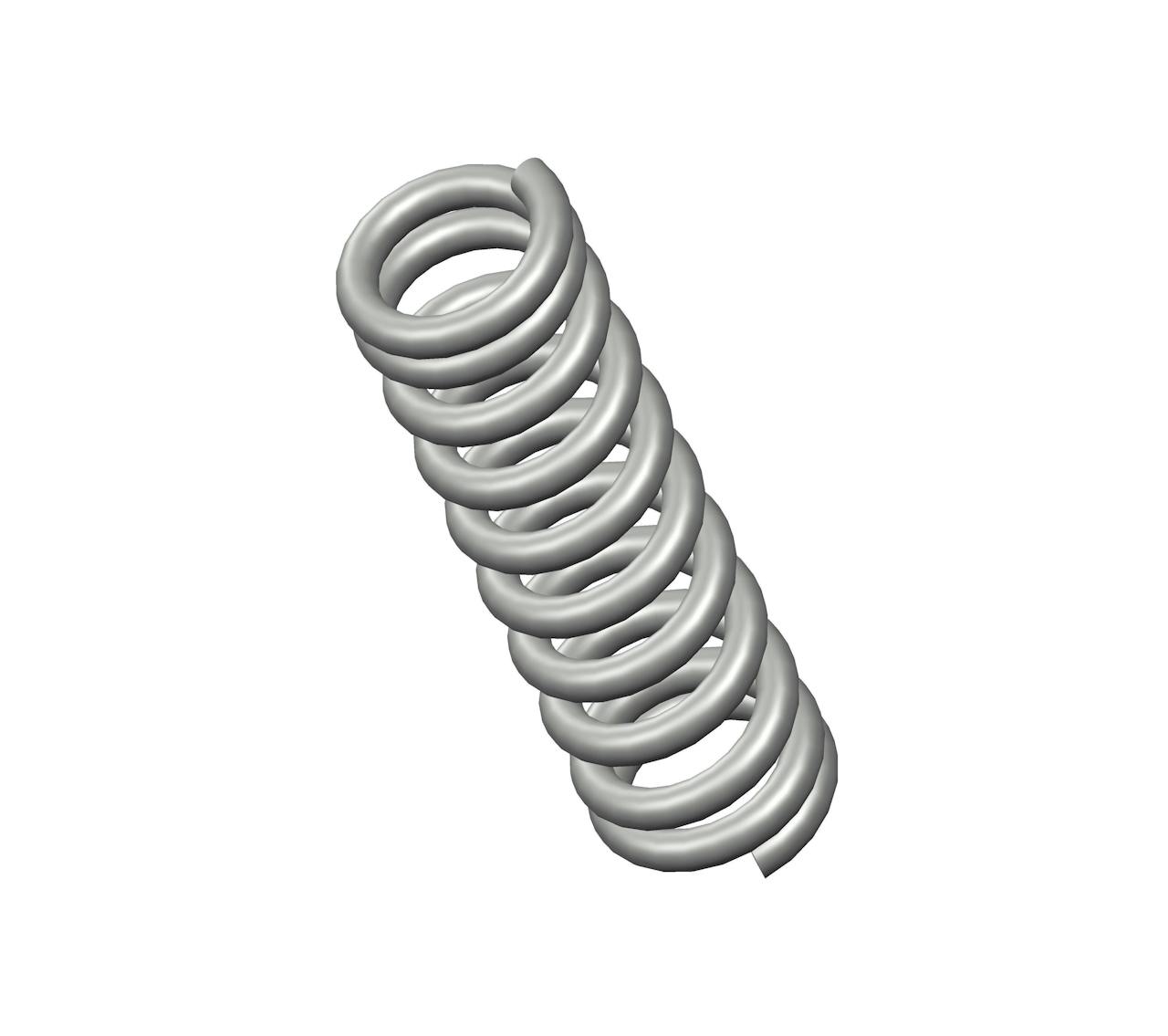

10932CS - 0.34" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 10.3 coils and closed ends. This spring features an O.D. of 0.094", and an I.D. of 0.062".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10932
Ends Closed
Finish Gold Iridite
Free Length 0.34 in
Inside Diameter 0.062 in
Material Music Wire
Outside Diameter 0.094 in
Part Type Standard
Rate 24 lbs/in
SKU 10932CS
Solid Length 0.18 in
Suggested Max Deflection 0.1 in
Suggested Max Load 2.5 lbf
Total Coils 10.3
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10932
Ends Closed
Finish Gold Iridite
Free Length 8.64 mm
Inside Diameter 1.57 mm
Material Music Wire
Outside Diameter 2.39 mm
Part Type Standard
Rate 4.2 N/mm
SKU 10932CS
Solid Length 4.57 mm
Suggested Max Deflection 2.54 mm
Suggested Max Load 11.12 N
Total Coils 10.3
Wire Diameter 0.41 mm
The 10932CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.016" diameter music wire, the 10932 spring design exhibits reliable strength across its 10.3 active coils, withstanding repeated compression cycles with a maximum load of 2.5 lbf without succumbing to fatigue.

We manufacture the 10932 design to provide a compression spring that is 0.34" long at rest and provides a consistent rate of 24 lbs/in along its recommended maximum of 0.1" deflection. For best results, your application should fully accommodate the inner (0.062") and outer (0.094") diameters of this spring and be designed for its closed end configuration.
