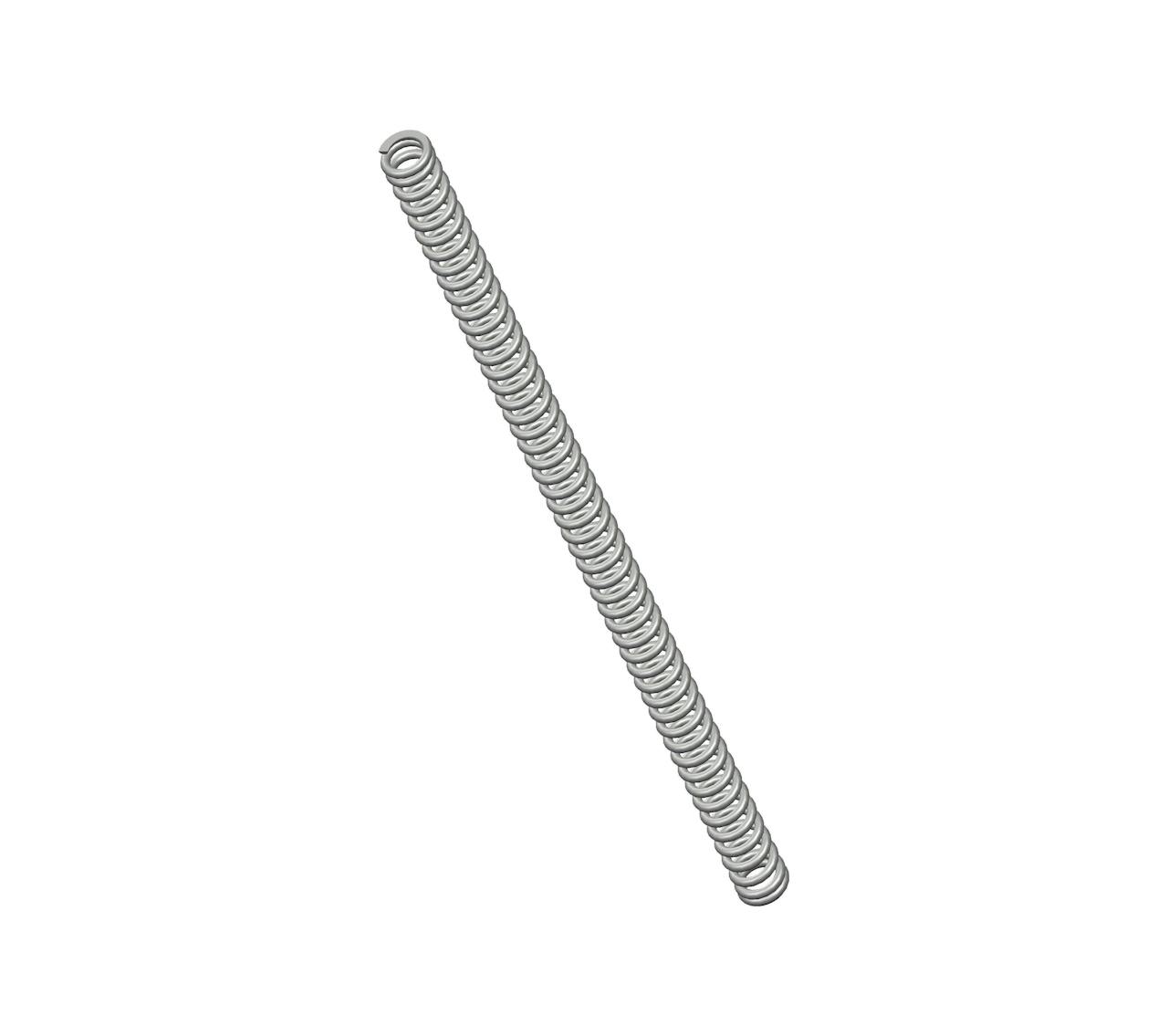

10908CS - 8.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 51 coils and closed & ground ends. This spring features an O.D. of 0.406", and an I.D. of 0.26".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10908
Ends Closed & Ground
Finish None
Free Length 8.5 in
Inside Diameter 0.26 in
Material Spring Steel
Outside Diameter 0.406 in
Part Type Standard
Rate 23 lbs/in
SKU 10908CS
Solid Length 3.72 in
Suggested Max Deflection 1.4 in
Suggested Max Load 31 lbf
Total Coils 51
Wire Diameter 0.073 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10908
Ends Closed & Ground
Finish None
Free Length 215.9 mm
Inside Diameter 6.6 mm
Material Spring Steel
Outside Diameter 10.31 mm
Part Type Standard
Rate 4.03 N/mm
SKU 10908CS
Solid Length 94.49 mm
Suggested Max Deflection 35.56 mm
Suggested Max Load 137.89 N
Total Coils 51
Wire Diameter 1.85 mm
The 10908CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.073" diameter spring steel, the 10908 spring design exhibits reliable strength across its 51 active coils, withstanding repeated compression cycles with a maximum load of 31 lbf without succumbing to fatigue.

We manufacture the 10908 design to provide a compression spring that is 8.5" long at rest and provides a consistent rate of 23 lbs/in along its recommended maximum of 1.4" deflection. For best results, your application should fully accommodate the inner (0.26") and outer (0.406") diameters of this spring and be designed for its closed & ground end configuration.
