10769CS - 3.25" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

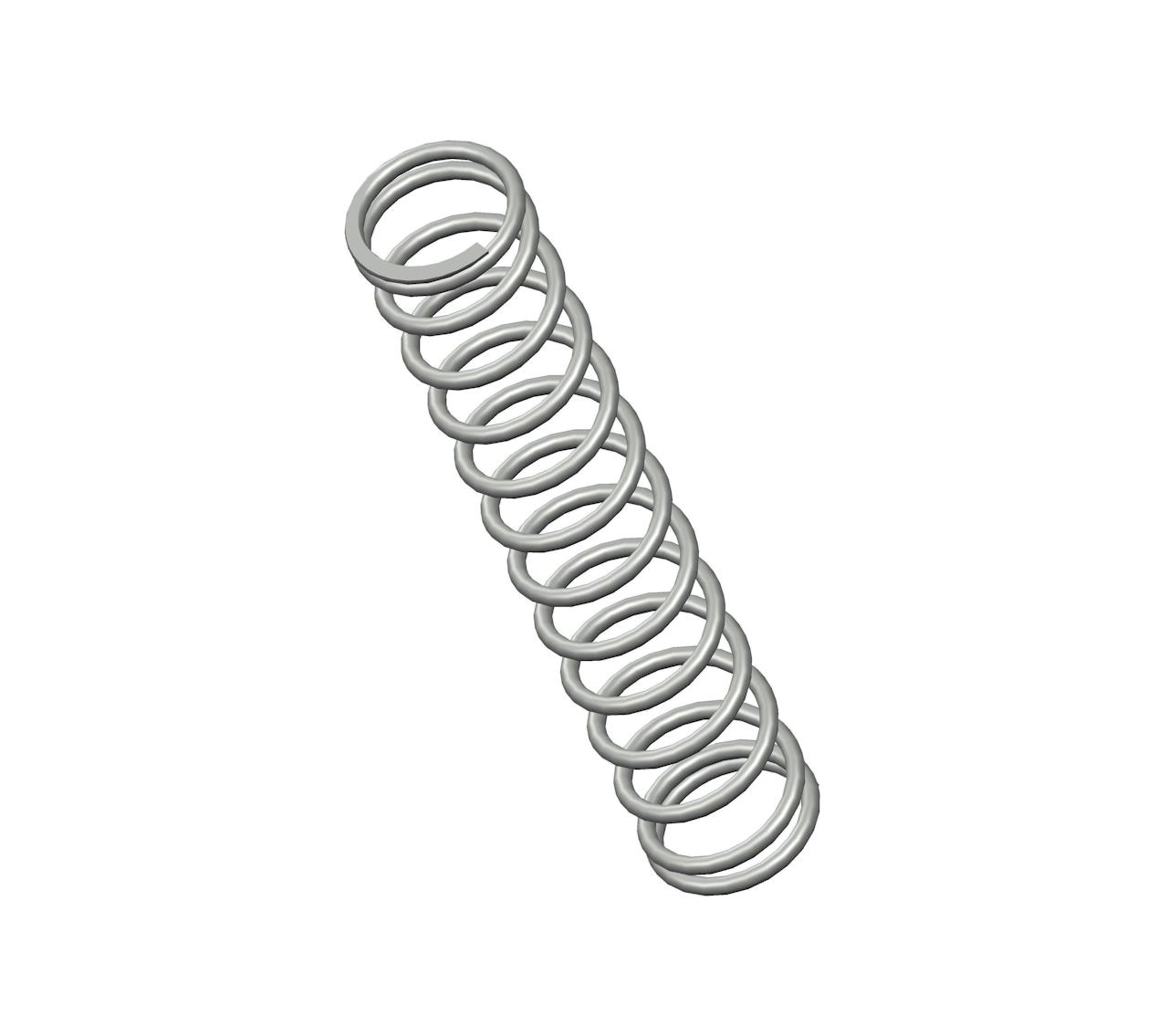

Compression spring manufactured from spring steel with 13.8 coils and closed & ground ends. This spring features an O.D. of 0.609", and an I.D. of 0.484".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10769
Ends Closed & Ground
Finish Gold Iridite
Free Length 3.25 in
Inside Diameter 0.484 in
Material Spring Steel
Outside Diameter 0.609 in
Part Type Standard
Rate 11 lbs/in
SKU 10769CS
Solid Length 0.85 in
Suggested Max Deflection 1.3 in
Suggested Max Load 14 lbf
Total Coils 13.8
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10769
Ends Closed & Ground
Finish Gold Iridite
Free Length 82.55 mm
Inside Diameter 12.29 mm
Material Spring Steel
Outside Diameter 15.47 mm
Part Type Standard
Rate 1.93 N/mm
SKU 10769CS
Solid Length 21.59 mm
Suggested Max Deflection 33.02 mm
Suggested Max Load 62.27 N
Total Coils 13.8
Wire Diameter 1.59 mm
The 10769CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.0625" diameter spring steel, the 10769 spring design exhibits reliable strength across its 13.8 active coils, withstanding repeated compression cycles with a maximum load of 14 lbf without succumbing to fatigue.

We manufacture the 10769 design to provide a compression spring that is 3.25" long at rest and provides a consistent rate of 11 lbs/in along its recommended maximum of 1.3" deflection. For best results, your application should fully accommodate the inner (0.484") and outer (0.609") diameters of this spring and be designed for its closed & ground end configuration.
