Century Spring

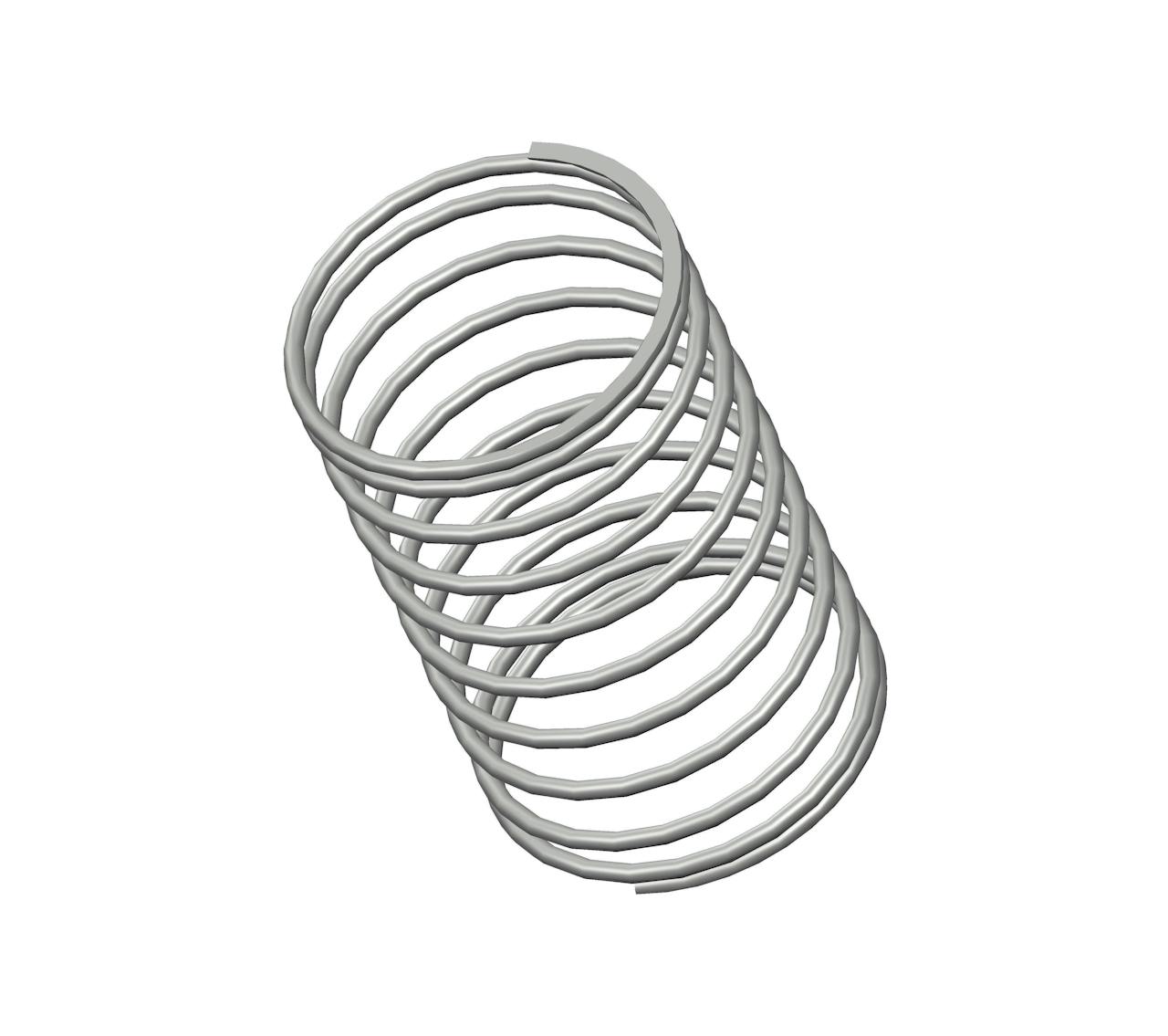

10726CS - 1.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 10.5 coils and closed ends. This spring features an O.D. of 0.938", and an I.D. of 0.848".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10726
Ends Closed
Finish Zinc
Free Length 1.5 in
Inside Diameter 0.848 in
Material Spring Steel
Outside Diameter 0.938 in
Part Type Standard
Rate 0.97 lbs/in
SKU 10726CS
Solid Length 0.52 in
Suggested Max Deflection 0.98 in
Suggested Max Load 0.96 lbf
Total Coils 10.5
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10726
Ends Closed
Finish Zinc
Free Length 38.1 mm
Inside Diameter 21.54 mm
Material Spring Steel
Outside Diameter 23.83 mm
Part Type Standard
Rate 0.17 N/mm
SKU 10726CS
Solid Length 13.21 mm
Suggested Max Deflection 24.89 mm
Suggested Max Load 4.27 N
Total Coils 10.5
Wire Diameter 1.14 mm
The 10726CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.045" diameter spring steel, the 10726 spring design exhibits reliable strength across its 10.5 active coils, withstanding repeated compression cycles with a maximum load of 0.96 lbf without succumbing to fatigue.

We manufacture the 10726 design to provide a compression spring that is 1.5" long at rest and provides a consistent rate of 0.97 lbs/in along its recommended maximum of 0.98" deflection. For best results, your application should fully accommodate the inner (0.848") and outer (0.938") diameters of this spring and be designed for its closed end configuration.
