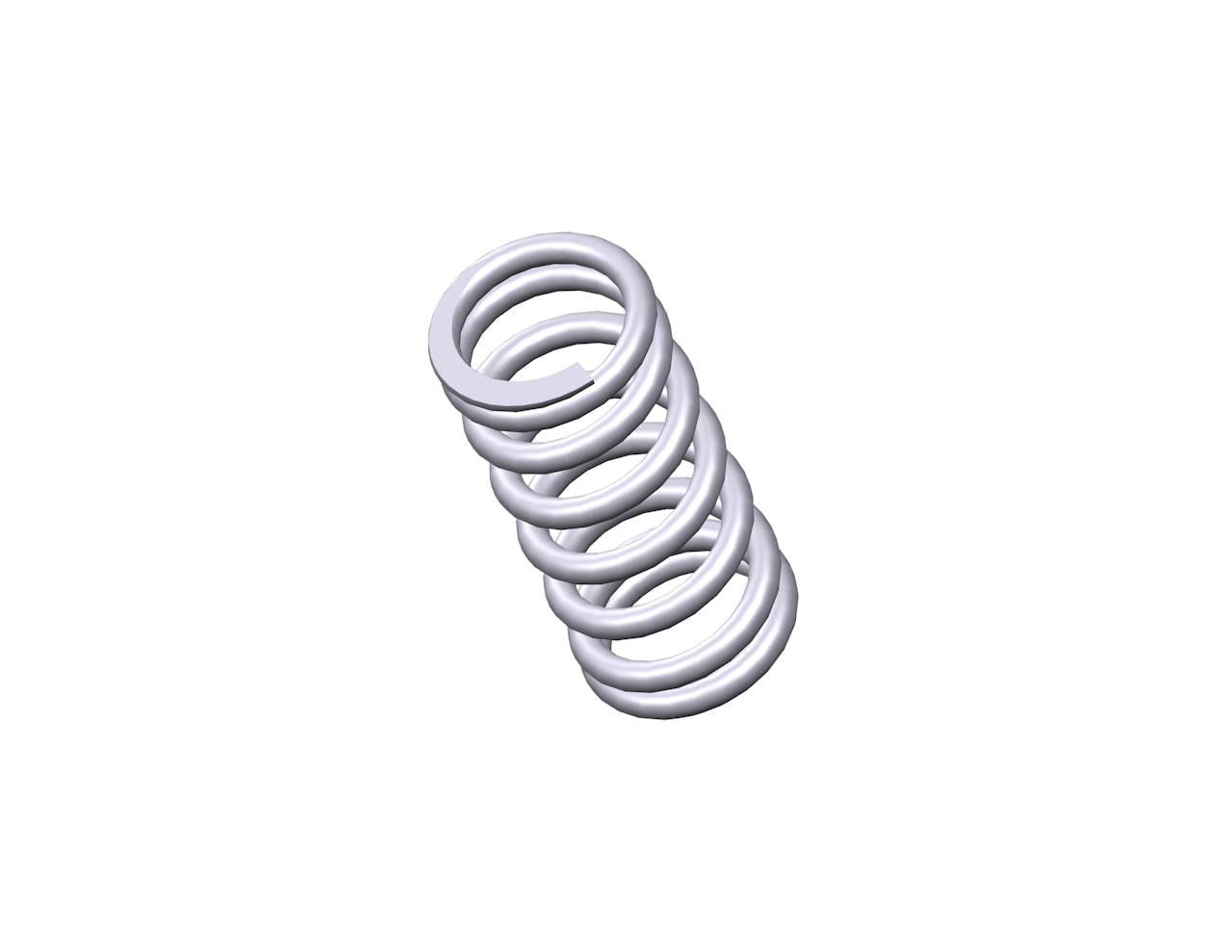

10722CS - 2.28" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 7.75 coils and closed & ground ends. This spring features an O.D. of 1.031", and an I.D. of 0.747".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10722
Ends Closed & Ground
Finish Zinc
Free Length 2.28 in
Inside Diameter 0.747 in
Material Spring Steel
Outside Diameter 1.031 in
Part Type Standard
Rate 145 lbs/in
SKU 10722CS
Solid Length 1.1 in
Suggested Max Deflection 0.58 in
Suggested Max Load 84 lbf
Total Coils 7.75
Wire Diameter 0.142 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10722
Ends Closed & Ground
Finish Zinc
Free Length 57.91 mm
Inside Diameter 18.97 mm
Material Spring Steel
Outside Diameter 26.19 mm
Part Type Standard
Rate 25.39 N/mm
SKU 10722CS
Solid Length 27.94 mm
Suggested Max Deflection 14.73 mm
Suggested Max Load 373.63 N
Total Coils 7.75
Wire Diameter 3.61 mm
The 10722 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 10722CS compression spring is designed with a free length of 3" total of 16 coils, and a rate of 100 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 10722 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
