10666CS - 2.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

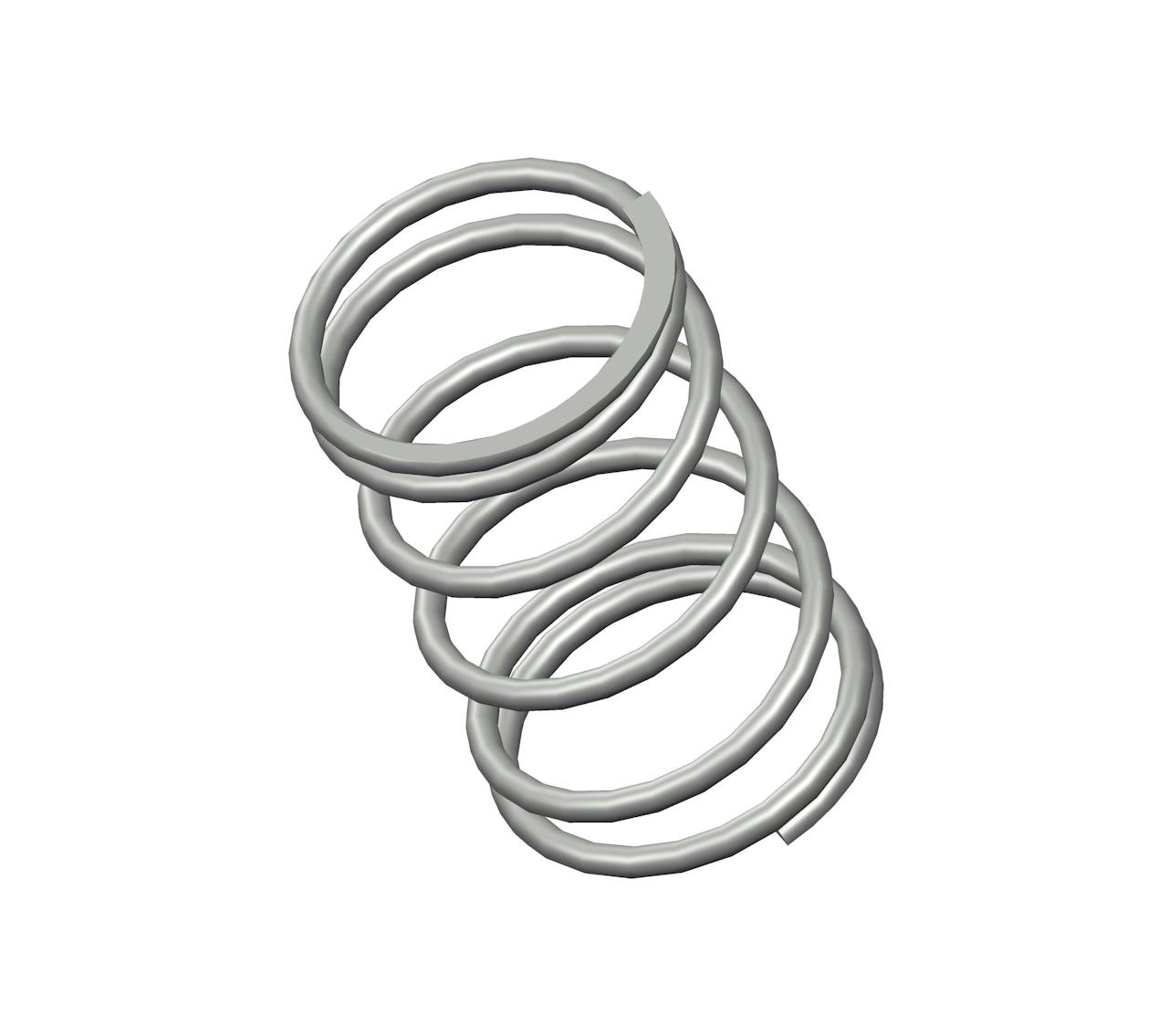

Compression spring manufactured from spring steel with 6.25 coils and closed & ground ends. This spring features an O.D. of 1.5", and an I.D. of 1.264".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10666
Ends Closed & Ground
Finish Zinc
Free Length 2.5 in
Inside Diameter 1.264 in
Material Spring Steel
Outside Diameter 1.5 in
Part Type Standard
Rate 25 lbs/in
SKU 10666CS
Solid Length 0.74 in
Suggested Max Deflection 1.4 in
Suggested Max Load 35 lbf
Total Coils 6.25
Wire Diameter 0.118 in
The compression spring 10666CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 10666 compression spring design exhibits exceptional tensile strength and resilience.

The 10666 design is manufactured with a free length of 2.5", with an outer diameter of 1.5", an inner diameter of 1.264", and a total of 6.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 25 lbs/in.

The 10666CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 10666 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
