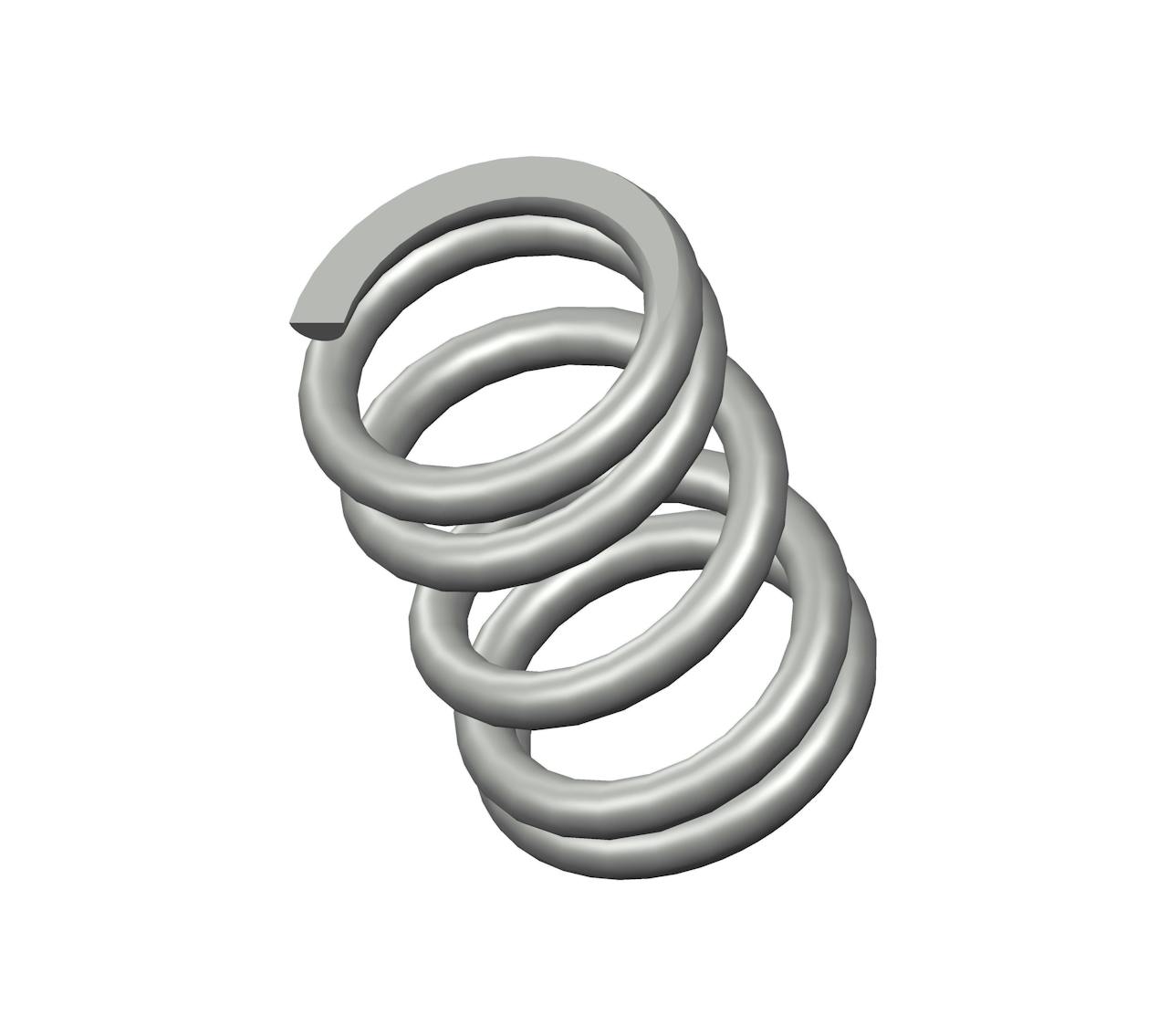

10665CS - 2.38" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 1.64", and an I.D. of 1.19".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10665
Ends Closed & Ground
Finish Zinc
Free Length 2.38 in
Inside Diameter 1.19 in
Material Spring Steel
Outside Diameter 1.64 in
Part Type Standard
Rate 433 lbs/in
SKU 10665CS
Solid Length 1.13 in
Suggested Max Deflection 0.43 in
Suggested Max Load 188 lbf
Total Coils 5
Wire Diameter 0.225 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10665
Ends Closed & Ground
Finish Zinc
Free Length 60.45 mm
Inside Diameter 30.23 mm
Material Spring Steel
Outside Diameter 41.66 mm
Part Type Standard
Rate 75.82 N/mm
SKU 10665CS
Solid Length 28.7 mm
Suggested Max Deflection 10.92 mm
Suggested Max Load 836.22 N
Total Coils 5
Wire Diameter 5.72 mm
The 10665CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.225" diameter spring steel, the 10665 spring design exhibits reliable strength across its 5 active coils, withstanding repeated compression cycles with a maximum load of 188 lbf without succumbing to fatigue.

We manufacture the 10665 design to provide a compression spring that is 2.38" long at rest and provides a consistent rate of 433 lbs/in along its recommended maximum of 0.43" deflection. For best results, your application should fully accommodate the inner (1.19") and outer (1.64") diameters of this spring and be designed for its closed & ground end configuration.
