10647CS - 3.88" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

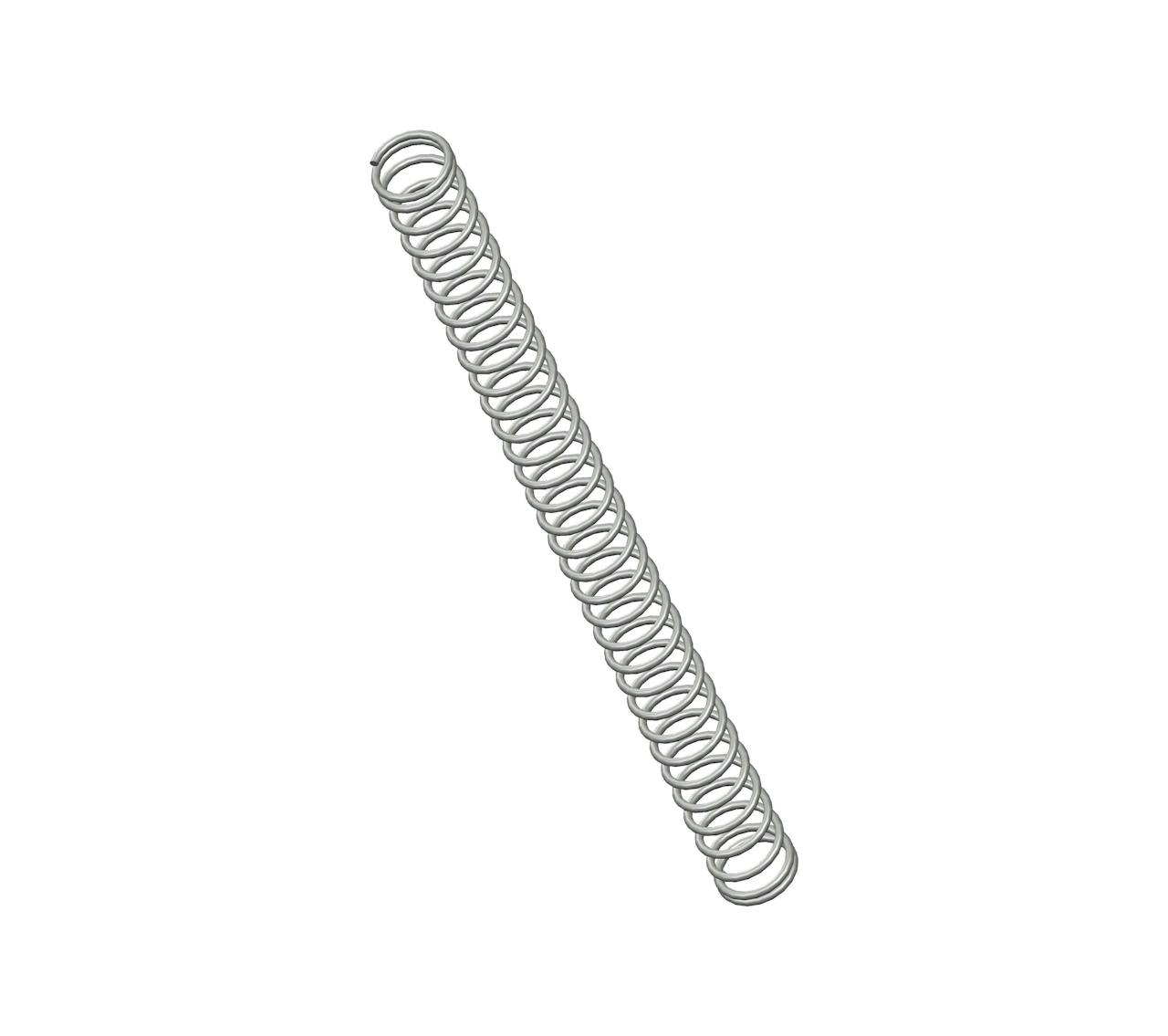

Compression spring manufactured from music wire with 33 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.236".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10647
Ends Closed
Finish Zinc
Free Length 3.88 in
Inside Diameter 0.236 in
Material Music Wire
Outside Diameter 0.296 in
Part Type Standard
Rate 2 lbs/in
SKU 10647CS
Solid Length 0.99 in
Suggested Max Deflection 2.5 in
Suggested Max Load 5.1 lbf
Total Coils 33
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10647
Ends Closed
Finish Zinc
Free Length 98.55 mm
Inside Diameter 5.99 mm
Material Music Wire
Outside Diameter 7.52 mm
Part Type Standard
Rate 0.35 N/mm
SKU 10647CS
Solid Length 25.15 mm
Suggested Max Deflection 63.5 mm
Suggested Max Load 22.68 N
Total Coils 33
Wire Diameter 0.76 mm
The 10647CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.03" diameter music wire, the 10647 spring design exhibits reliable strength across its 33 active coils, withstanding repeated compression cycles with a maximum load of 5.1 lbf without succumbing to fatigue.

We manufacture the 10647 design to provide a compression spring that is 3.88" long at rest and provides a consistent rate of 2 lbs/in along its recommended maximum of 2.5" deflection. For best results, your application should fully accommodate the inner (0.236") and outer (0.296") diameters of this spring and be designed for its closed end configuration.
