10618CS - 0.69" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

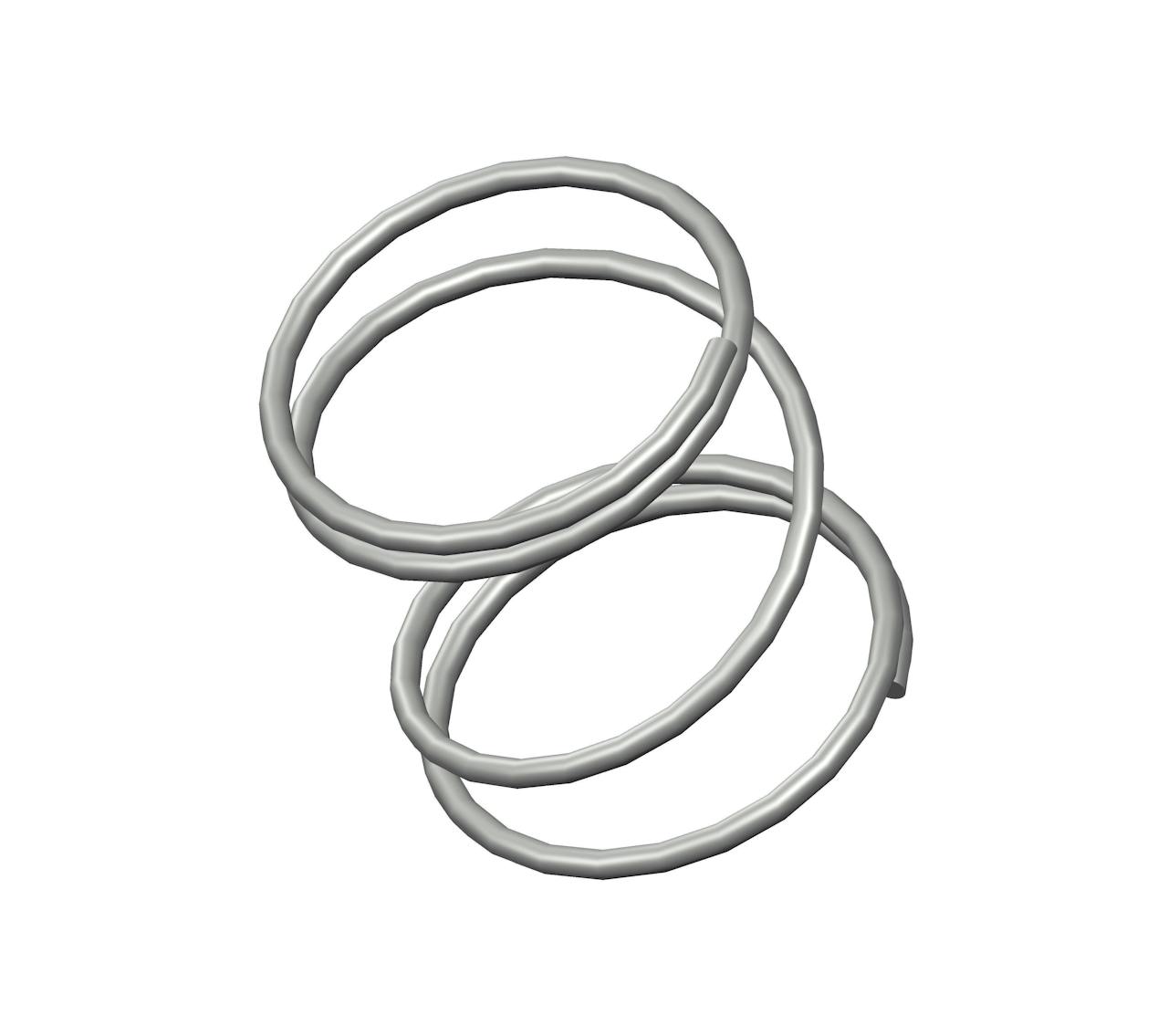

Compression spring manufactured from spring steel with 4 coils and closed ends. This spring features an O.D. of 0.609", and an I.D. of 0.537".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10618
Ends Closed
Finish Zinc
Free Length 0.69 in
Inside Diameter 0.537 in
Material Spring Steel
Outside Diameter 0.609 in
Part Type Standard
Rate 6.4 lbs/in
SKU 10618CS
Solid Length 0.18 in
Suggested Max Deflection 0.47 in
Suggested Max Load 3 lbf
Total Coils 4
Wire Diameter 0.036 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10618
Ends Closed
Finish Zinc
Free Length 17.53 mm
Inside Diameter 13.64 mm
Material Spring Steel
Outside Diameter 15.47 mm
Part Type Standard
Rate 1.12 N/mm
SKU 10618CS
Solid Length 4.57 mm
Suggested Max Deflection 11.94 mm
Suggested Max Load 13.34 N
Total Coils 4
Wire Diameter 0.91 mm
The compression spring 10618CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 10618 compression spring design exhibits exceptional tensile strength and resilience.

The 10618 design is manufactured with a free length of 0.69", with an outer diameter of 0.609", an inner diameter of 0.537", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.4 lbs/in.

The 10618CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 10618 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
