10570CS - 5" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

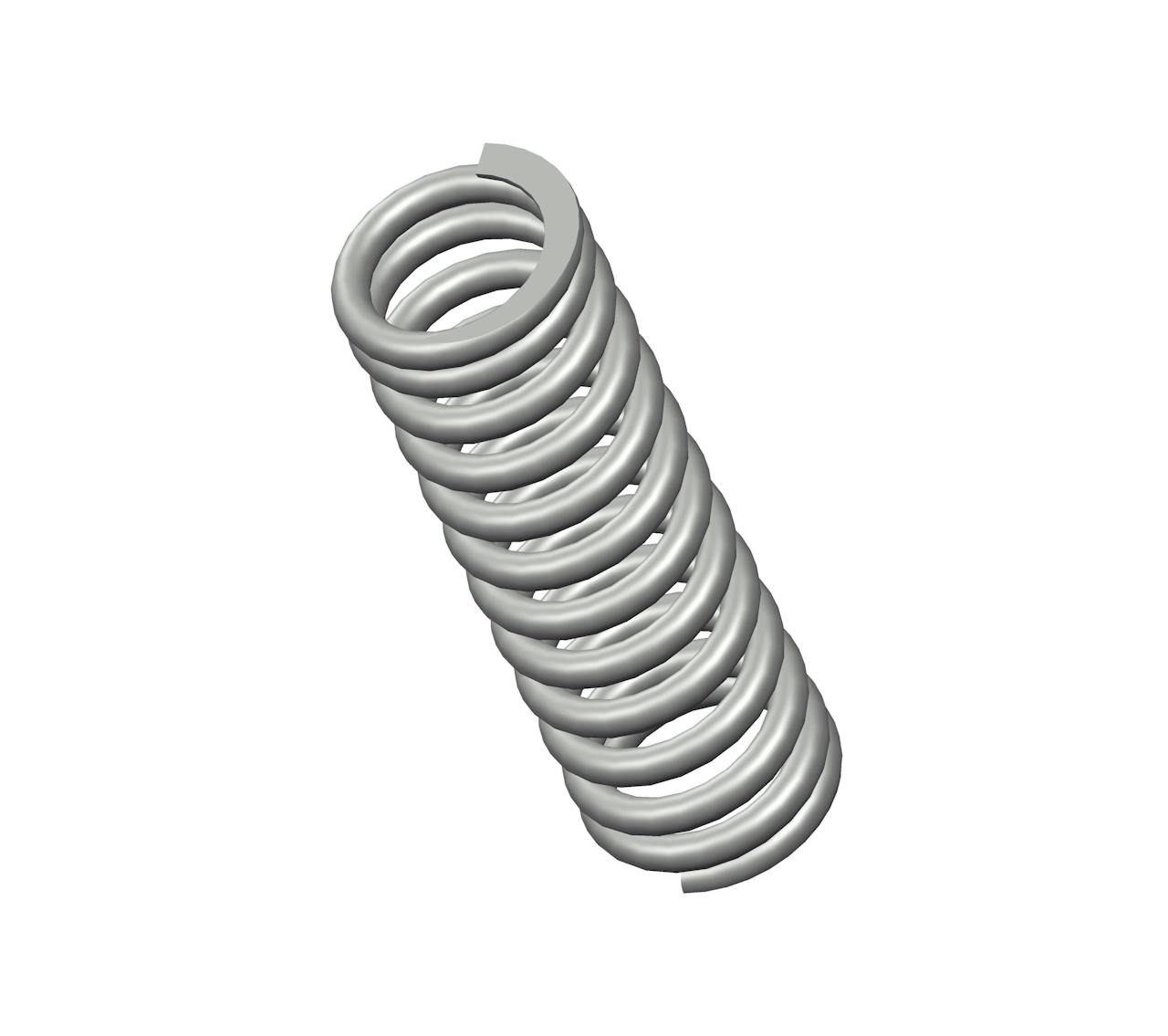

Compression spring manufactured from spring steel with 12.5 coils and closed ends. This spring features an O.D. of 1.562", and an I.D. of 1.108".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 10570 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 5 in |
| Inside Diameter | 1.108 in |
| Material | Spring Steel |
| Outside Diameter | 1.562 in |
| Part Type | Standard |
| Rate | 153 lbs/in |
| SKU | 10570CS |
| Solid Length | 3.07 in |
| Suggested Max Deflection | 1.3 in |
| Suggested Max Load | 201 lbf |
| Total Coils | 12.5 |
| Wire Diameter | 0.227 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 10570 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 127 mm |
| Inside Diameter | 28.14 mm |
| Material | Spring Steel |
| Outside Diameter | 39.67 mm |
| Part Type | Standard |
| Rate | 26.79 N/mm |
| SKU | 10570CS |
| Solid Length | 77.98 mm |
| Suggested Max Deflection | 33.02 mm |
| Suggested Max Load | 894.05 N |
| Total Coils | 12.5 |
| Wire Diameter | 5.77 mm |
The 10570 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 10570CS compression spring is designed with a free length of 2.44" total of 7.25 coils, and a rate of 204 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 10570 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 10570CS compression spring is designed with a free length of 2.44" total of 7.25 coils, and a rate of 204 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 10570 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
