10529CS - 1.16" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

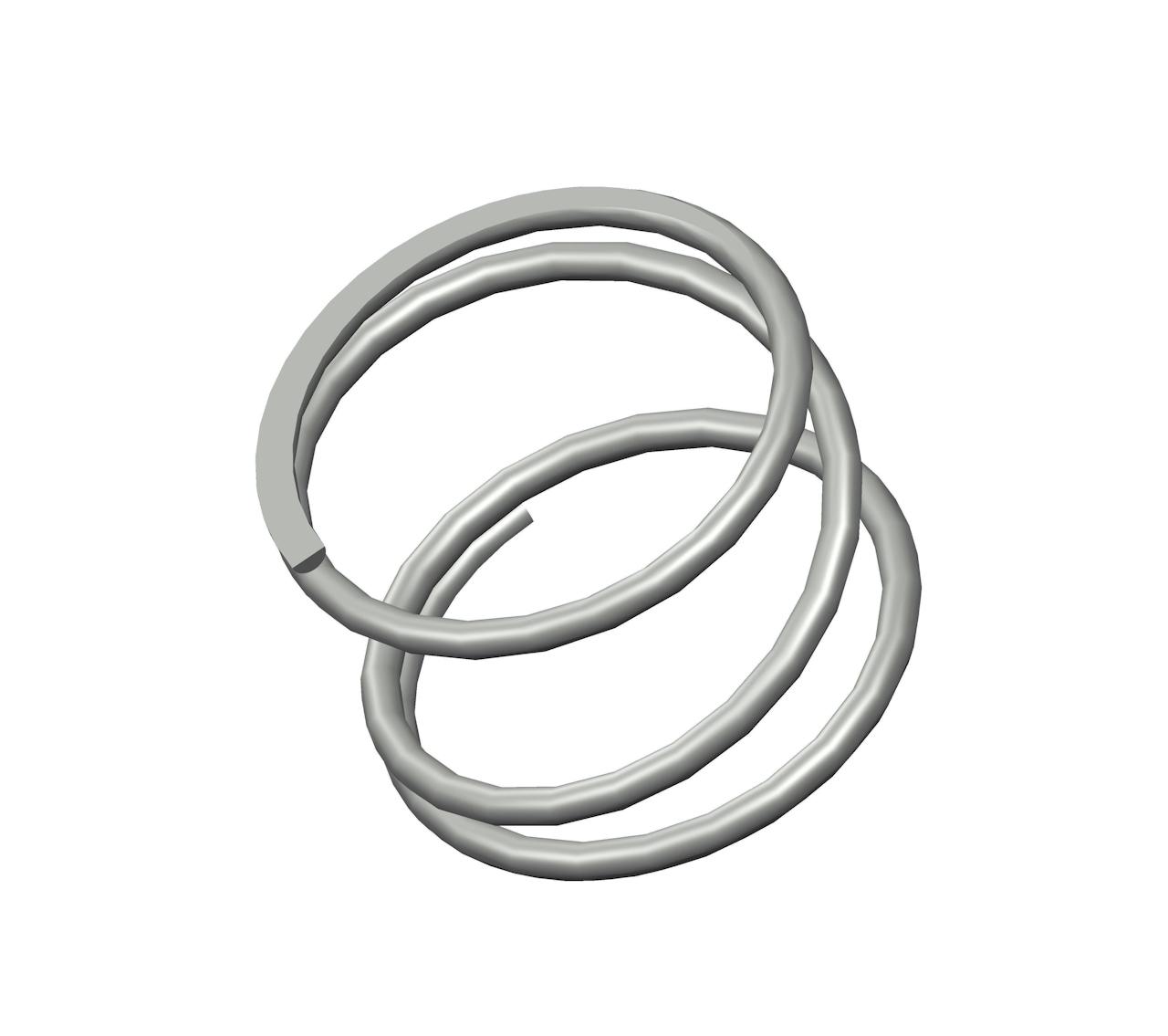

Compression spring manufactured from spring steel with 3.25 coils and closed & ground ends. This spring features an O.D. of 1.656", and an I.D. of 1.43".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10529
Ends Closed & Ground
Finish Zinc
Free Length 1.16 in
Inside Diameter 1.43 in
Material Spring Steel
Outside Diameter 1.656 in
Part Type Standard
Rate 51 lbs/in
SKU 10529CS
Solid Length 0.37 in
Suggested Max Deflection 0.55 in
Suggested Max Load 28 lbf
Total Coils 3.25
Wire Diameter 0.113 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10529
Ends Closed & Ground
Finish Zinc
Free Length 29.46 mm
Inside Diameter 36.32 mm
Material Spring Steel
Outside Diameter 42.06 mm
Part Type Standard
Rate 8.93 N/mm
SKU 10529CS
Solid Length 9.4 mm
Suggested Max Deflection 13.97 mm
Suggested Max Load 124.54 N
Total Coils 3.25
Wire Diameter 2.87 mm
The 10529CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.113" diameter spring steel, the 10529 spring design exhibits reliable strength across its 3.25 active coils, withstanding repeated compression cycles with a maximum load of 28 lbf without succumbing to fatigue.

We manufacture the 10529 design to provide a compression spring that is 1.16" long at rest and provides a consistent rate of 51 lbs/in along its recommended maximum of 0.55" deflection. For best results, your application should fully accommodate the inner (1.43") and outer (1.656") diameters of this spring and be designed for its closed & ground end configuration.
