Century Spring

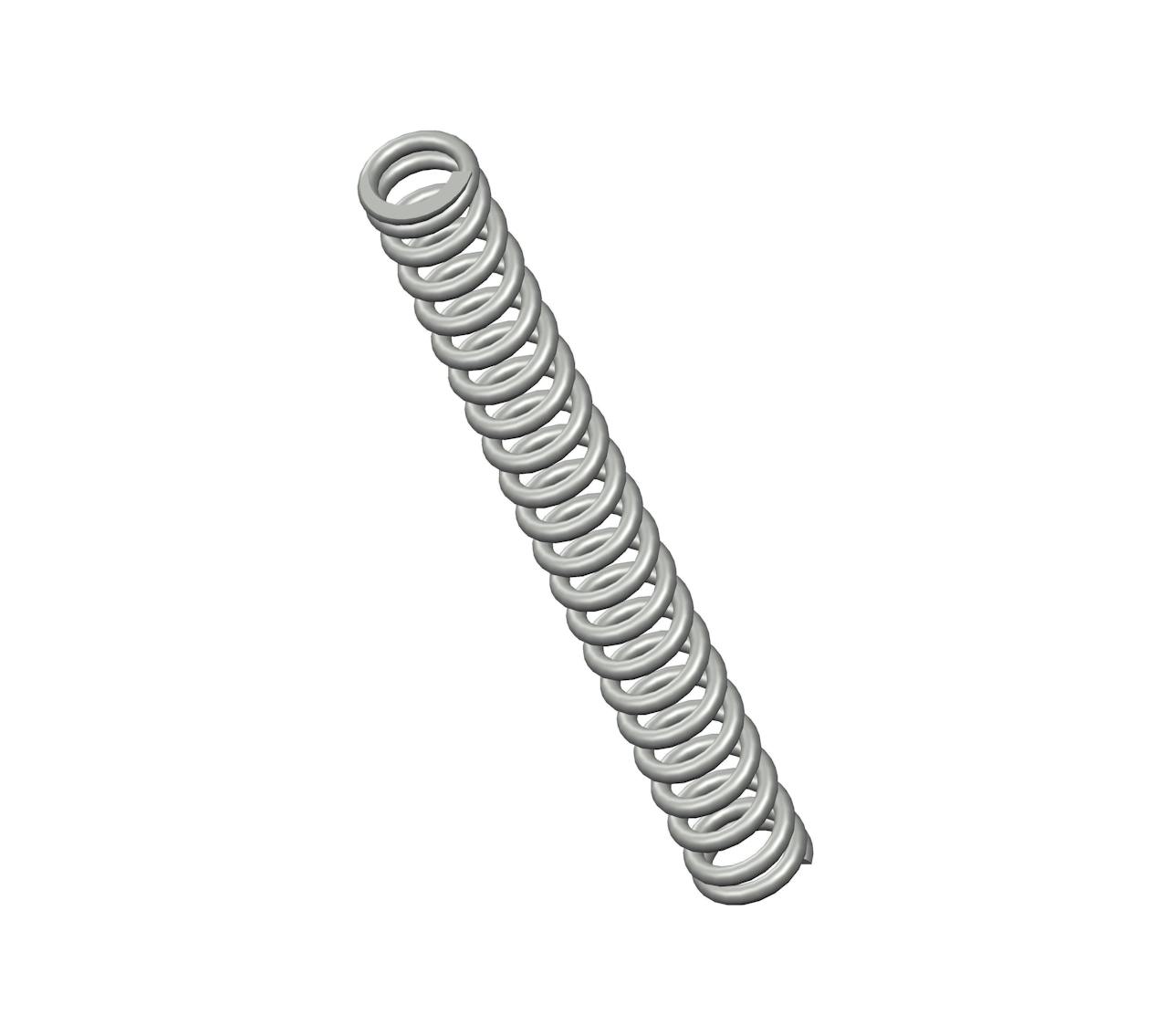

10512CS - 3.75" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 22 coils and closed & ground ends. This spring features an O.D. of 0.42", and an I.D. of 0.28".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10512
Ends Closed & Ground
Finish Zinc
Free Length 3.75 in
Inside Diameter 0.28 in
Material Spring Steel
Outside Diameter 0.42 in
Part Type Standard
Rate 40 lbs/in
SKU 10512CS
Solid Length 1.54 in
Suggested Max Deflection 0.67 in
Suggested Max Load 27 lbf
Total Coils 22
Wire Diameter 0.07 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10512
Ends Closed & Ground
Finish Zinc
Free Length 95.25 mm
Inside Diameter 7.11 mm
Material Spring Steel
Outside Diameter 10.67 mm
Part Type Standard
Rate 7 N/mm
SKU 10512CS
Solid Length 39.12 mm
Suggested Max Deflection 17.02 mm
Suggested Max Load 120.1 N
Total Coils 22
Wire Diameter 1.78 mm
The compression spring 10512CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 10512 compression spring design exhibits exceptional tensile strength and resilience.

The 10512 design is manufactured with a free length of 3.75", with an outer diameter of 0.42", an inner diameter of 0.28", and a total of 22 coils, expertly designed to deliver consistent compression characteristics including a rate of 40 lbs/in.

The 10512CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 10512 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
