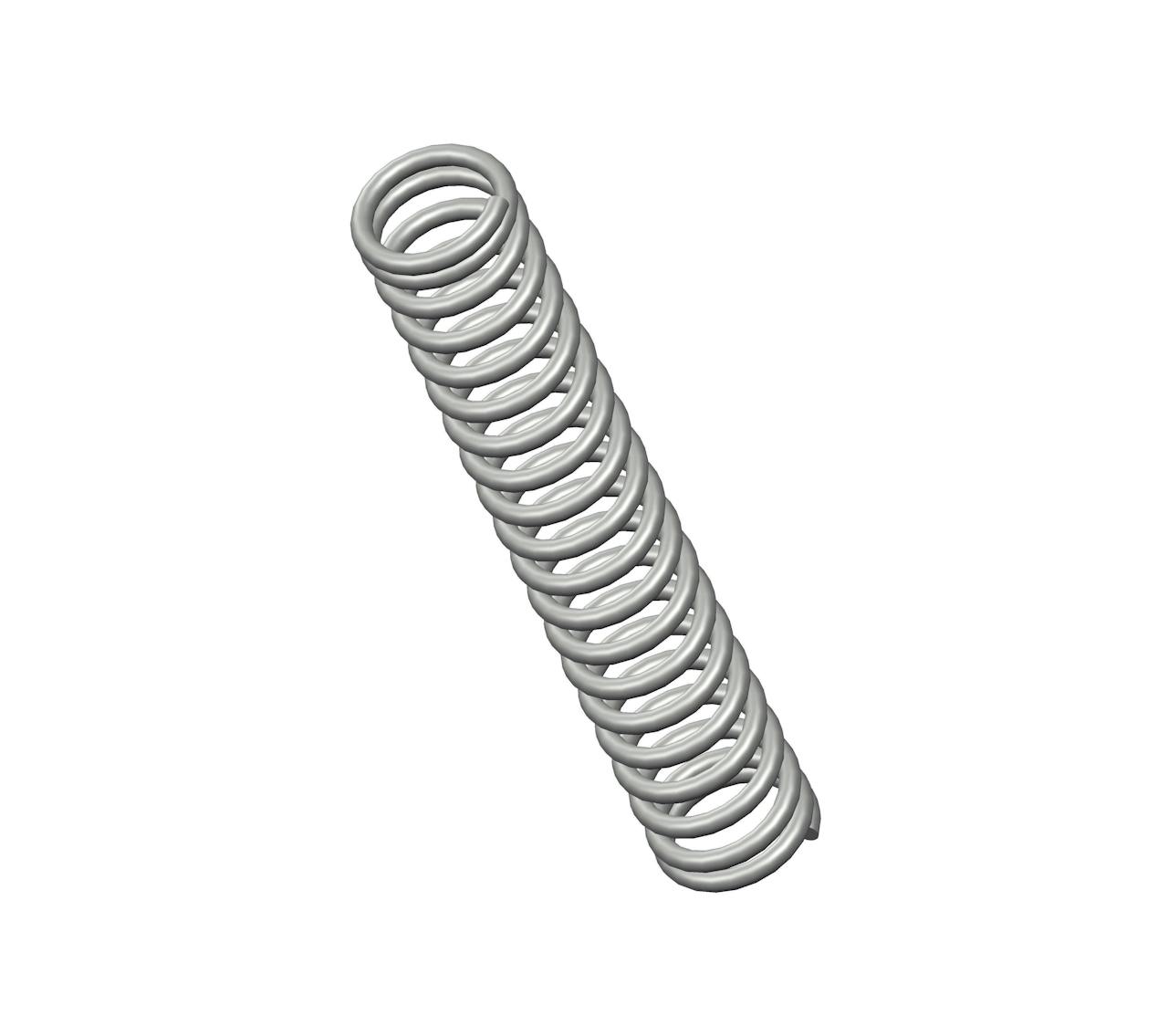

10481CS - 1.88" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 20 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.23".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10481
Ends Closed
Finish Zinc
Free Length 1.88 in
Inside Diameter 0.23 in
Material Spring Steel
Outside Diameter 0.312 in
Part Type Standard
Rate 11 lbs/in
SKU 10481CS
Solid Length 0.86 in
Suggested Max Deflection 0.74 in
Suggested Max Load 8.3 lbf
Total Coils 20
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10481
Ends Closed
Finish Zinc
Free Length 47.75 mm
Inside Diameter 5.84 mm
Material Spring Steel
Outside Diameter 7.92 mm
Part Type Standard
Rate 1.93 N/mm
SKU 10481CS
Solid Length 21.84 mm
Suggested Max Deflection 18.8 mm
Suggested Max Load 36.92 N
Total Coils 20
Wire Diameter 1.04 mm
The compression spring 10481CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 10481 compression spring design exhibits exceptional tensile strength and resilience.

The 10481 design is manufactured with a free length of 1.88", with an outer diameter of 0.312", an inner diameter of 0.23", and a total of 20 coils, expertly designed to deliver consistent compression characteristics including a rate of 11 lbs/in.

The 10481CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 10481 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
