10476CS - 3.13" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

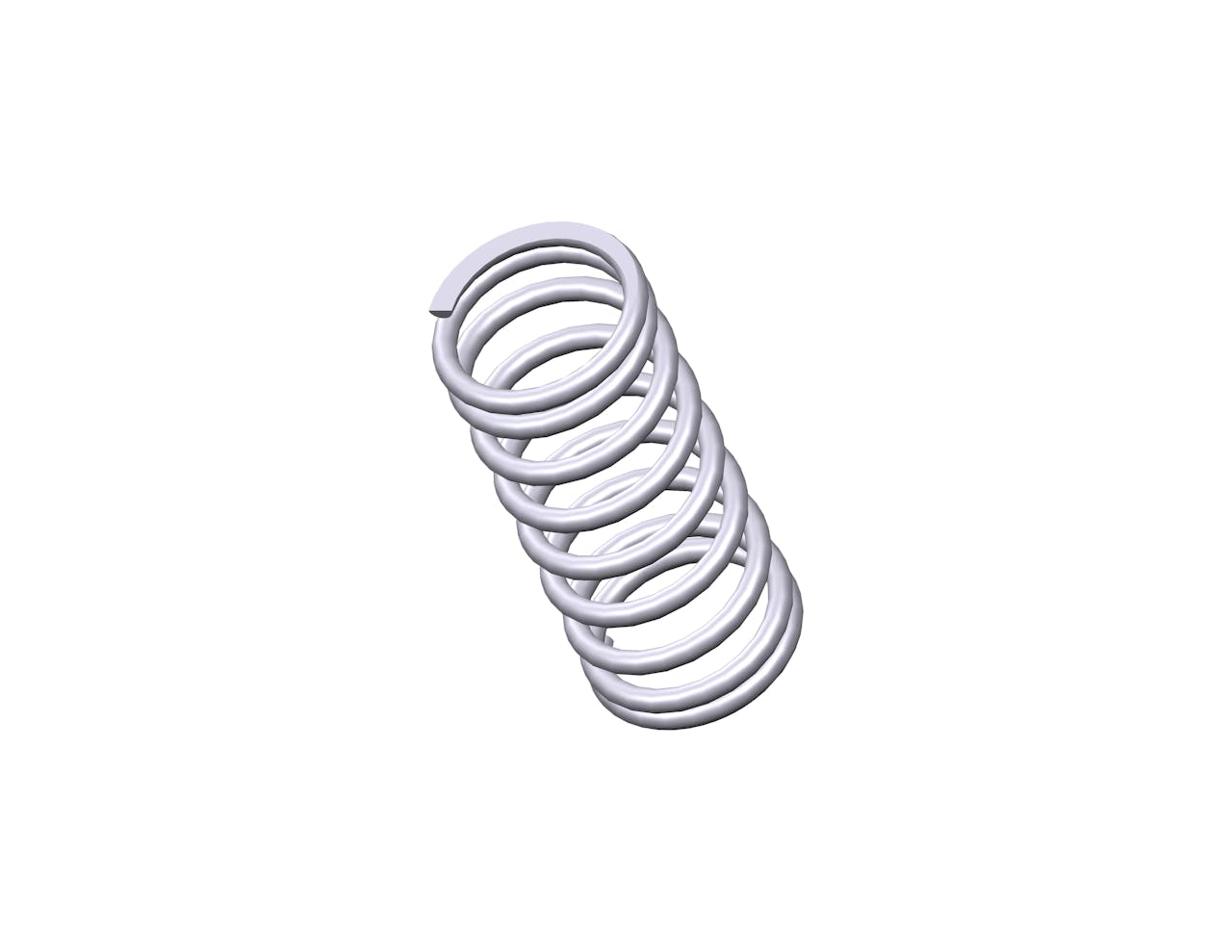

Compression spring manufactured from spring steel with 9 coils and closed & ground ends. This spring features an O.D. of 1.359", and an I.D. of 1.063".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10476
Ends Closed & Ground
Finish Zinc
Free Length 3.13 in
Inside Diameter 1.063 in
Material Spring Steel
Outside Diameter 1.359 in
Part Type Standard
Rate 55 lbs/in
SKU 10476CS
Solid Length 1.33 in
Suggested Max Deflection 1.3 in
Suggested Max Load 73 lbf
Total Coils 9
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10476
Ends Closed & Ground
Finish Zinc
Free Length 79.5 mm
Inside Diameter 27 mm
Material Spring Steel
Outside Diameter 34.52 mm
Part Type Standard
Rate 9.63 N/mm
SKU 10476CS
Solid Length 33.78 mm
Suggested Max Deflection 33.02 mm
Suggested Max Load 324.7 N
Total Coils 9
Wire Diameter 3.76 mm
The 10476 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 10476CS compression spring is designed with a free length of 0.63" total of 8 coils, and a rate of 114 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 10476 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
