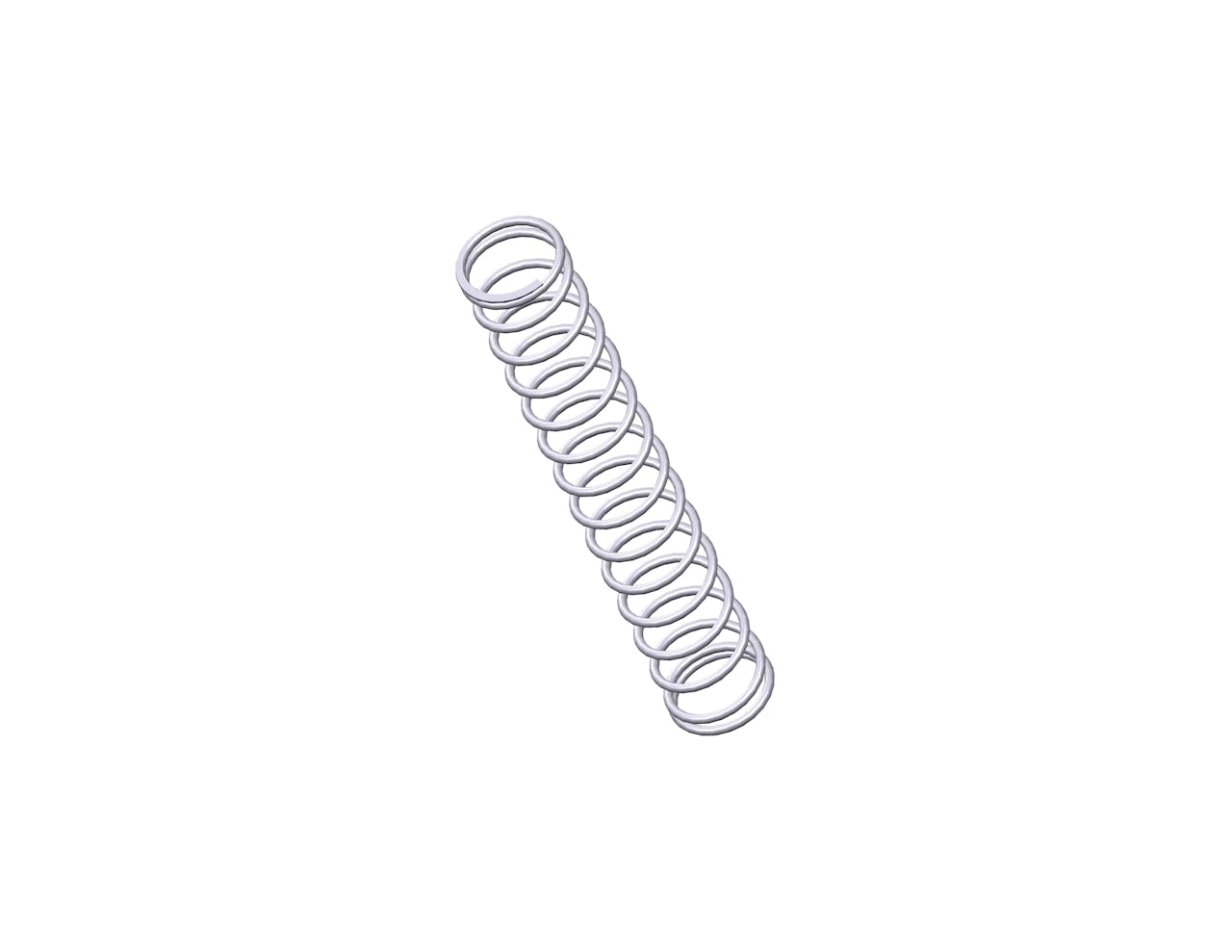

10454CS - 8.88" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 15.8 coils and closed & ground ends. This spring features an O.D. of 1.437", and an I.D. of 1.187".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10454
Ends Closed & Ground
Finish Zinc
Free Length 8.88 in
Inside Diameter 1.187 in
Material Spring Steel
Outside Diameter 1.437 in
Part Type Standard
Rate 13 lbs/in
SKU 10454CS
Solid Length 2.02 in
Suggested Max Deflection 3.5 in
Suggested Max Load 43 lbf
Total Coils 15.8
Wire Diameter 0.125 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10454
Ends Closed & Ground
Finish Zinc
Free Length 225.55 mm
Inside Diameter 30.15 mm
Material Spring Steel
Outside Diameter 36.5 mm
Part Type Standard
Rate 2.28 N/mm
SKU 10454CS
Solid Length 51.31 mm
Suggested Max Deflection 88.9 mm
Suggested Max Load 191.26 N
Total Coils 15.8
Wire Diameter 3.18 mm
The compression spring 10454CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 10454 compression spring design exhibits exceptional tensile strength and resilience.

The 10454 design is manufactured with a free length of 8.88", with an outer diameter of 1.437", an inner diameter of 1.187", and a total of 15.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.

The 10454CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 10454 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
