Century Spring

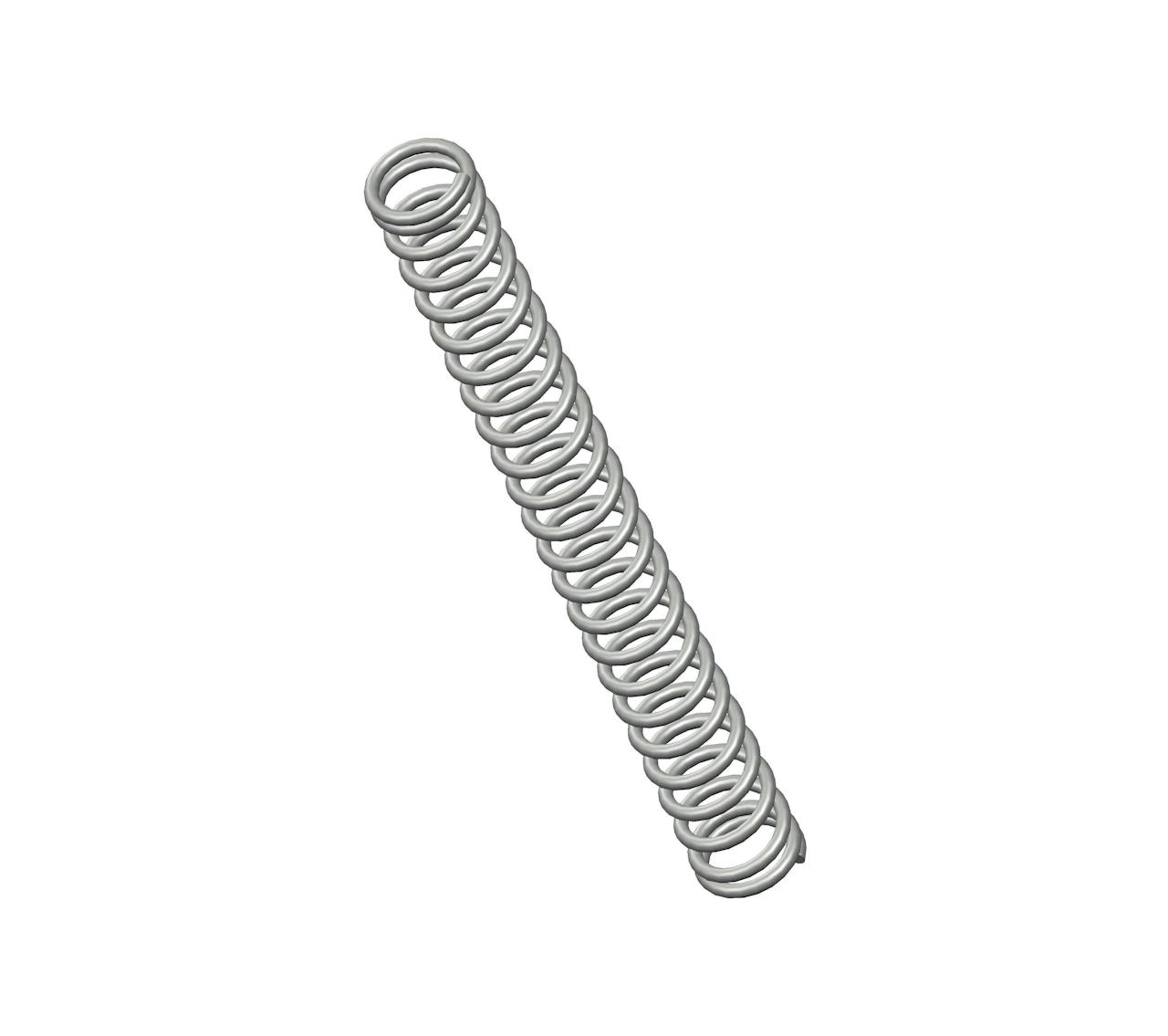

10431CS - 2.25" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 24 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.172".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10431
Ends Closed
Finish Gold Iridite
Free Length 2.25 in
Inside Diameter 0.172 in
Material Music Wire
Outside Diameter 0.234 in
Part Type Standard
Rate 7.2 lbs/in
SKU 10431CS
Solid Length 0.78 in
Suggested Max Deflection 0.97 in
Suggested Max Load 7 lbf
Total Coils 24
Wire Diameter 0.031 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10431
Ends Closed
Finish Gold Iridite
Free Length 57.15 mm
Inside Diameter 4.37 mm
Material Music Wire
Outside Diameter 5.94 mm
Part Type Standard
Rate 1.26 N/mm
SKU 10431CS
Solid Length 19.81 mm
Suggested Max Deflection 24.64 mm
Suggested Max Load 31.14 N
Total Coils 24
Wire Diameter 0.79 mm
The 10431 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 10431CS compression spring is designed with a free length of 2.22" total of 16 coils, and a rate of 16 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 10431 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
