Century Spring

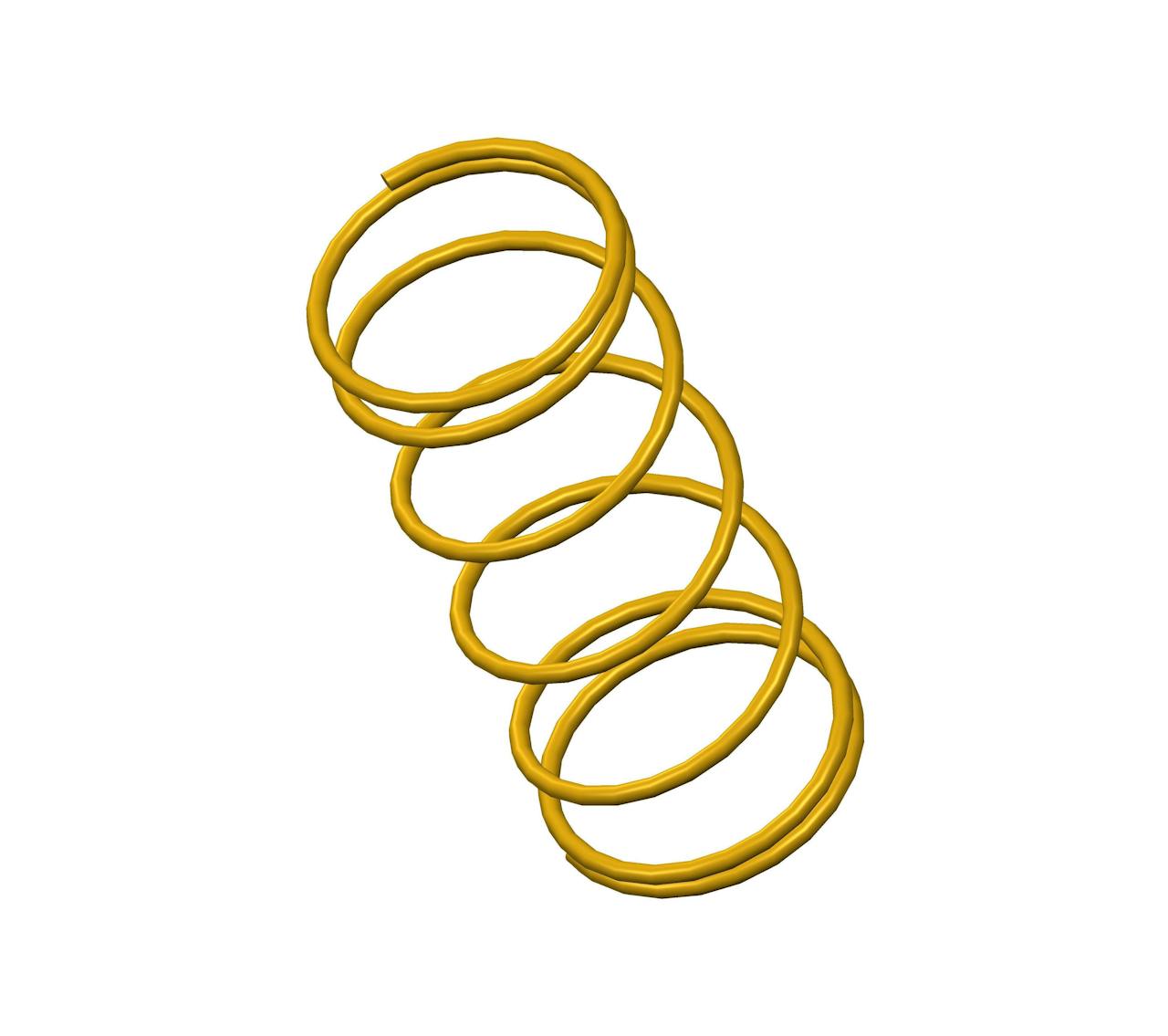

10422CS - 0.75" Phosphor Bronze Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from phosphor bronze with 6.75 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.274".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10422
Ends Closed
Finish None
Free Length 0.75 in
Inside Diameter 0.274 in
Material Phosphor Bronze
Outside Diameter 0.312 in
Part Type Standard
Rate 0.85 lbs/in
SKU 10422CS
Solid Length 0.15 in
Suggested Max Deflection 0.6 in
Suggested Max Load 0.51 lbf
Total Coils 6.75
Wire Diameter 0.019 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10422
Ends Closed
Finish None
Free Length 19.05 mm
Inside Diameter 6.96 mm
Material Phosphor Bronze
Outside Diameter 7.92 mm
Part Type Standard
Rate 0.15 N/mm
SKU 10422CS
Solid Length 3.81 mm
Suggested Max Deflection 15.24 mm
Suggested Max Load 2.27 N
Total Coils 6.75
Wire Diameter 0.48 mm
The 10422 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality phosphor bronze and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 10422CS compression spring is designed with a free length of 1.11" total of 8.5 coils, and a rate of 217 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 10422 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
