10410CS - 6" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

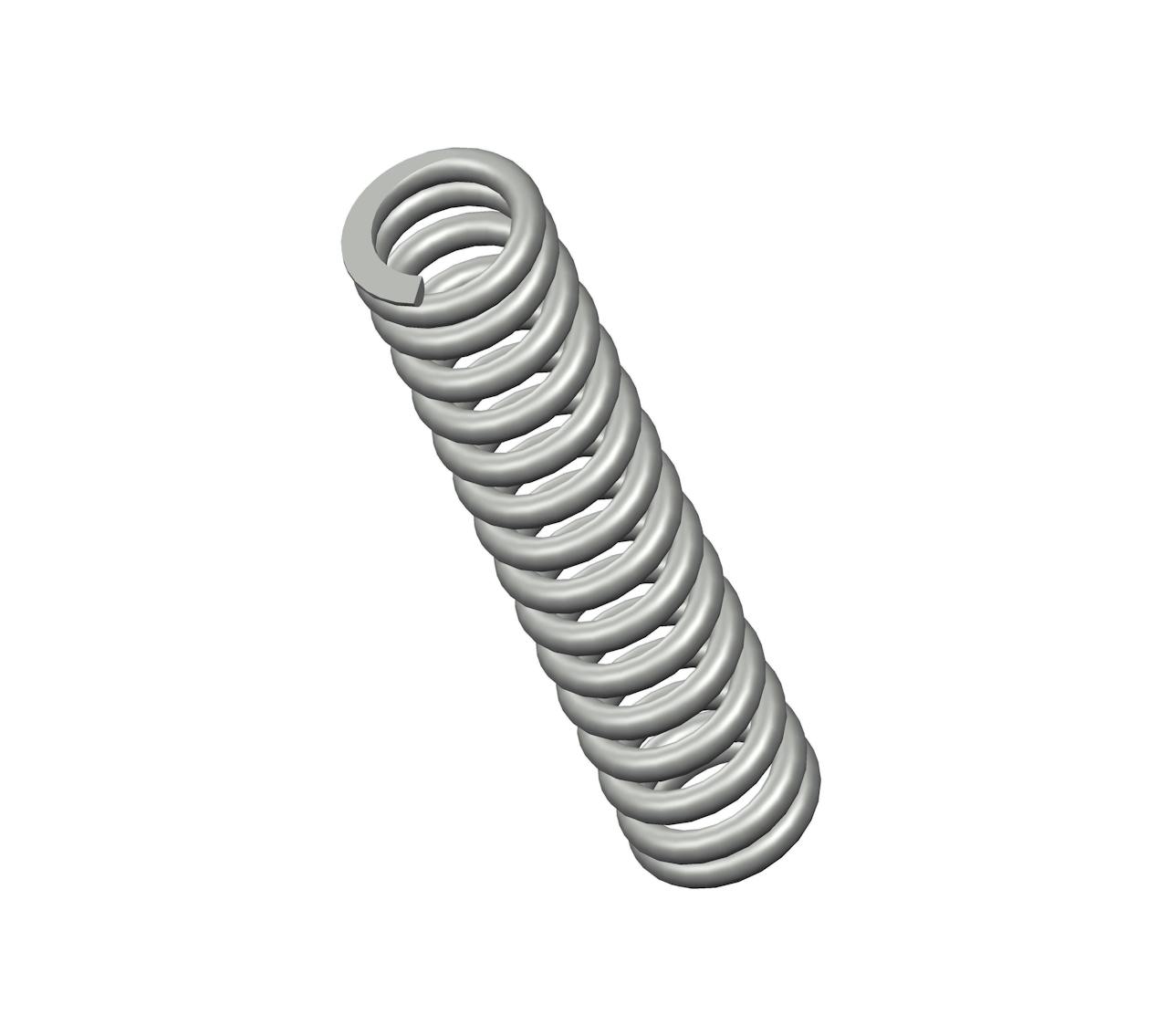

Compression spring manufactured from spring steel with 15.5 coils and closed & ground ends. This spring features an O.D. of 1.312", and an I.D. of 0.874".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 10410 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 6 in |
| Inside Diameter | 0.874 in |
| Material | Spring Steel |
| Outside Diameter | 1.312 in |
| Part Type | Standard |
| Rate | 188 lbs/in |
| SKU | 10410CS |
| Solid Length | 3.39 in |
| Suggested Max Deflection | 1.2 in |
| Suggested Max Load | 220 lbf |
| Total Coils | 15.5 |
| Wire Diameter | 0.219 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 10410 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 152.4 mm |
| Inside Diameter | 22.2 mm |
| Material | Spring Steel |
| Outside Diameter | 33.32 mm |
| Part Type | Standard |
| Rate | 32.92 N/mm |
| SKU | 10410CS |
| Solid Length | 86.11 mm |
| Suggested Max Deflection | 30.48 mm |
| Suggested Max Load | 978.56 N |
| Total Coils | 15.5 |
| Wire Diameter | 5.56 mm |
The 10410CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.219" diameter spring steel, the 10410 spring design exhibits reliable strength across its 15.5 active coils, withstanding repeated compression cycles with a maximum load of 220 lbf without succumbing to fatigue.
We manufacture the 10410 design to provide a compression spring that is 6" long at rest and provides a consistent rate of 188 lbs/in along its recommended maximum of 1.2" deflection. For best results, your application should fully accommodate the inner (0.874") and outer (1.312") diameters of this spring and be designed for its closed & ground end configuration.
We manufacture the 10410 design to provide a compression spring that is 6" long at rest and provides a consistent rate of 188 lbs/in along its recommended maximum of 1.2" deflection. For best results, your application should fully accommodate the inner (0.874") and outer (1.312") diameters of this spring and be designed for its closed & ground end configuration.
