Century Spring

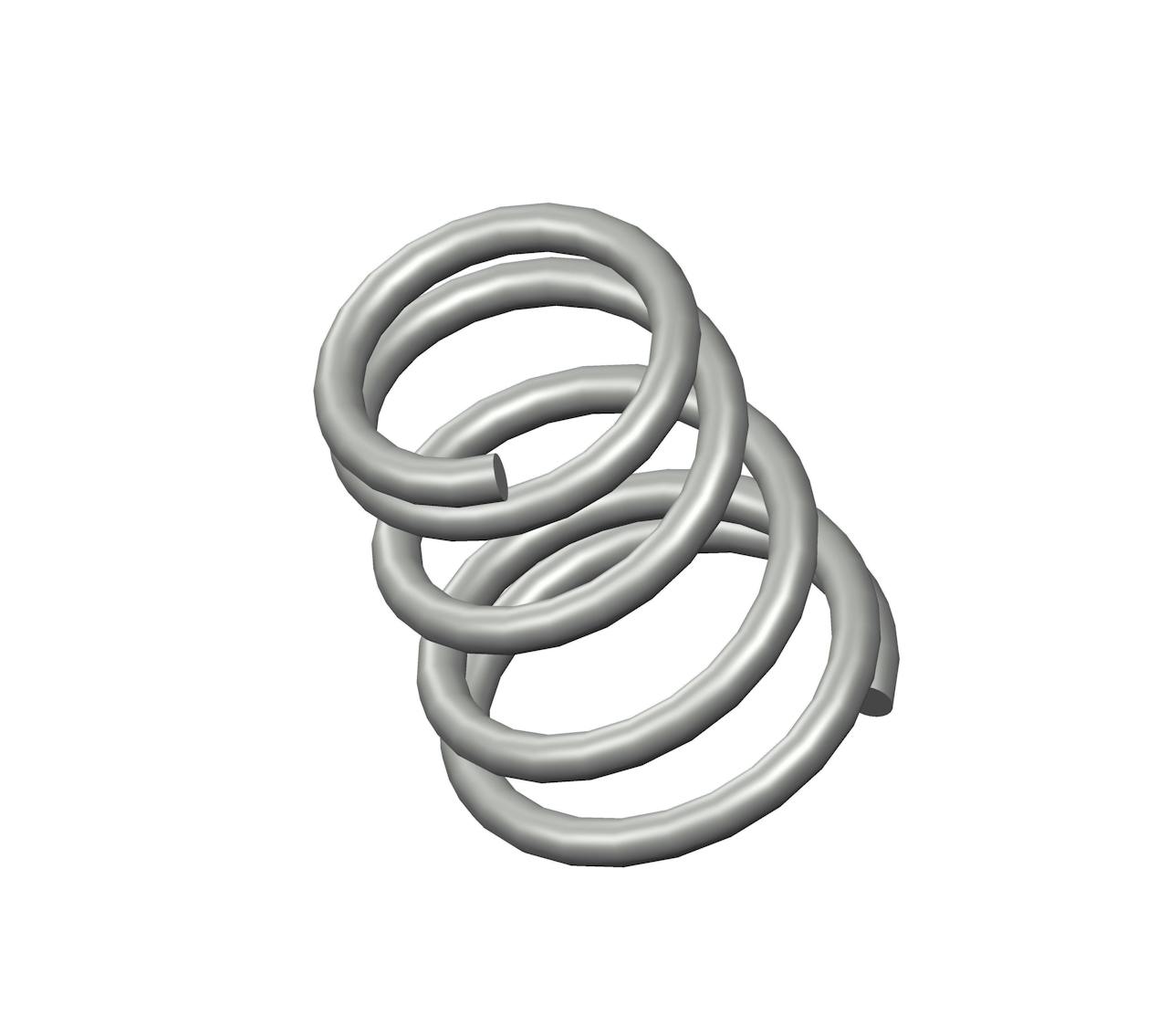

10392CS - 3" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 8 coils and closed & ground ends. This spring features an O.D. of 1.5", and an I.D. of 0.976".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10392
Ends Closed & Ground
Finish Zinc
Free Length 3 in
Inside Diameter 0.976 in
Material Spring Steel
Outside Diameter 1.5 in
Part Type Standard
Rate 595 lbs/in
SKU 10392CS
Solid Length 2.1 in
Suggested Max Deflection 0.51 in
Suggested Max Load 305 lbf
Total Coils 8
Wire Diameter 0.262 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10392
Ends Closed & Ground
Finish Zinc
Free Length 76.2 mm
Inside Diameter 24.79 mm
Material Spring Steel
Outside Diameter 38.1 mm
Part Type Standard
Rate 104.18 N/mm
SKU 10392CS
Solid Length 53.34 mm
Suggested Max Deflection 12.95 mm
Suggested Max Load 1356.64 N
Total Coils 8
Wire Diameter 6.65 mm
The 10392CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.262" diameter spring steel, the 10392 spring design exhibits reliable strength across its 8 active coils, withstanding repeated compression cycles with a maximum load of 305 lbf without succumbing to fatigue.

We manufacture the 10392 design to provide a compression spring that is 3" long at rest and provides a consistent rate of 595 lbs/in along its recommended maximum of 0.51" deflection. For best results, your application should fully accommodate the inner (0.976") and outer (1.5") diameters of this spring and be designed for its closed & ground end configuration.
