10386CS - 4" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

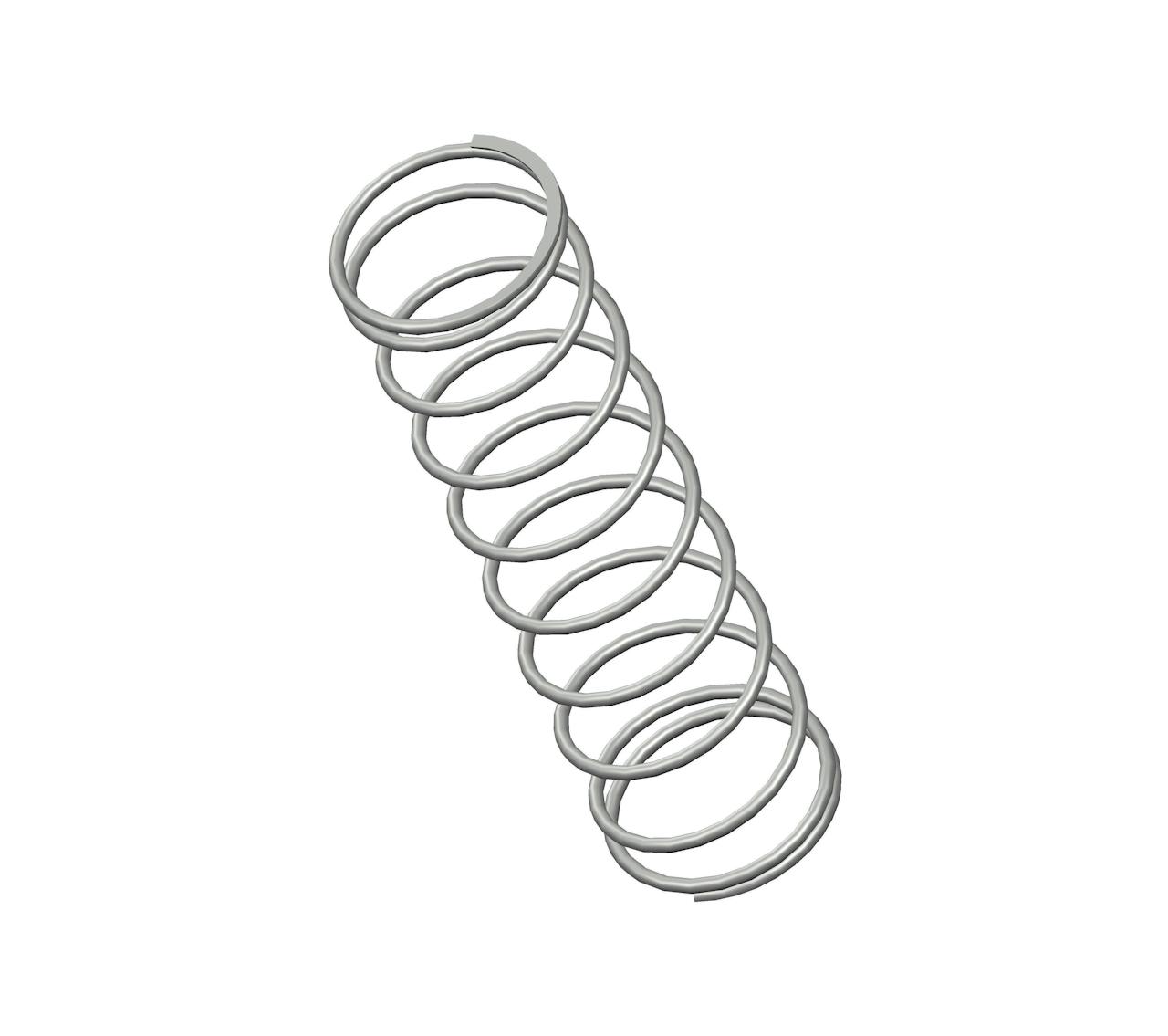

Compression spring manufactured from spring steel with 10.5 coils and closed & ground ends. This spring features an O.D. of 1.078", and an I.D. of 0.944".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10386
Ends Closed & Ground
Finish Zinc
Free Length 4 in
Inside Diameter 0.944 in
Material Spring Steel
Outside Diameter 1.078 in
Part Type Standard
Rate 3.3 lbs/in
SKU 10386CS
Solid Length 0.7 in
Suggested Max Deflection 3.1 in
Suggested Max Load 10 lbf
Total Coils 10.5
Wire Diameter 0.067 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10386
Ends Closed & Ground
Finish Zinc
Free Length 101.6 mm
Inside Diameter 23.98 mm
Material Spring Steel
Outside Diameter 27.38 mm
Part Type Standard
Rate 0.58 N/mm
SKU 10386CS
Solid Length 17.78 mm
Suggested Max Deflection 78.74 mm
Suggested Max Load 44.48 N
Total Coils 10.5
Wire Diameter 1.7 mm
The 10386CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.067" diameter spring steel, the 10386 spring design exhibits reliable strength across its 10.5 active coils, withstanding repeated compression cycles with a maximum load of 10 lbf without succumbing to fatigue.

We manufacture the 10386 design to provide a compression spring that is 4" long at rest and provides a consistent rate of 3.3 lbs/in along its recommended maximum of 3.1" deflection. For best results, your application should fully accommodate the inner (0.944") and outer (1.078") diameters of this spring and be designed for its closed & ground end configuration.
