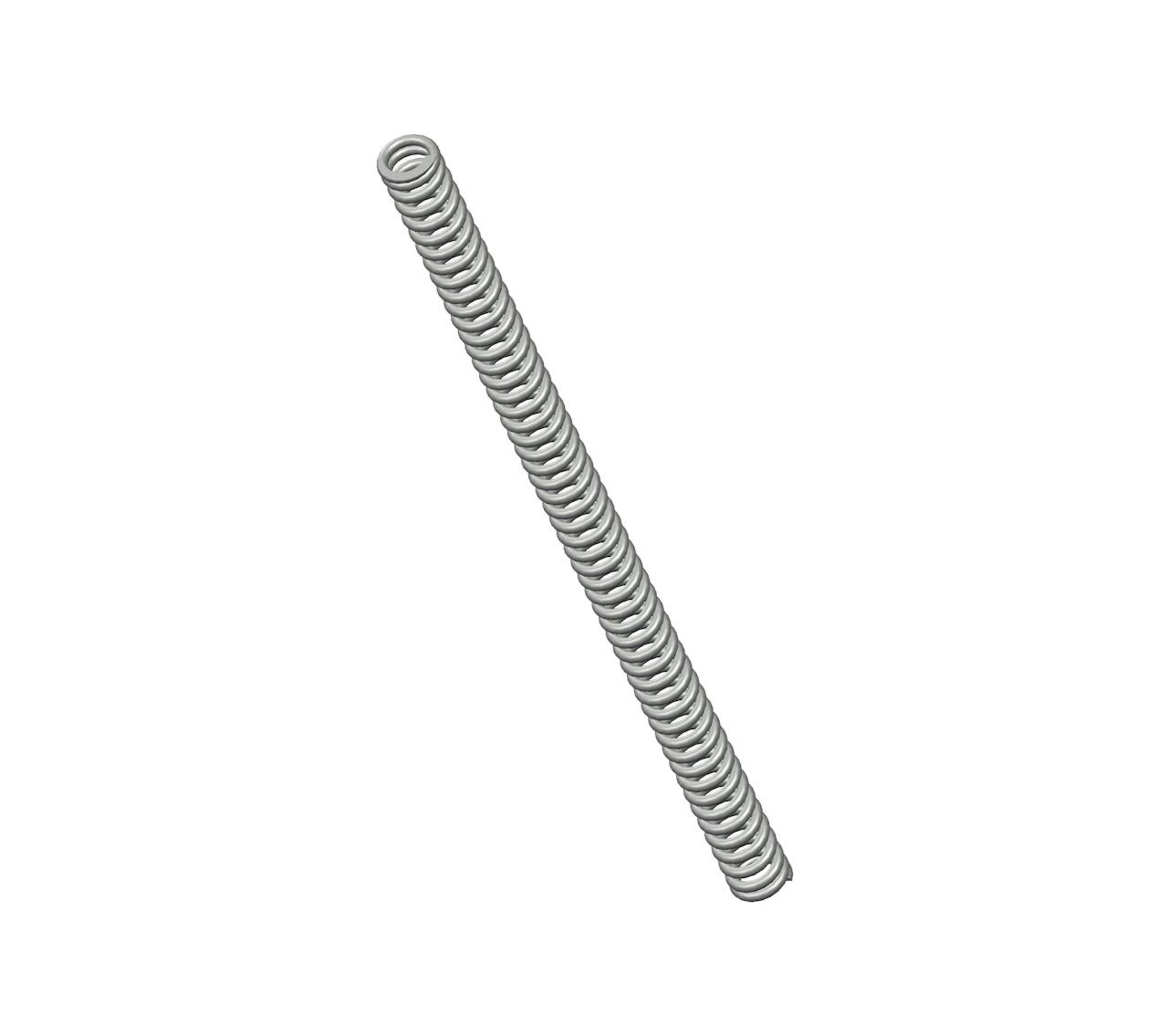

10380CS - 7.25" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 52 coils and closed & ground ends. This spring features an O.D. of 0.406", and an I.D. of 0.262".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 10380 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 7.25 in |
| Inside Diameter | 0.262 in |
| Material | Spring Steel |
| Outside Diameter | 0.406 in |
| Part Type | Standard |
| Rate | 21 lbs/in |
| SKU | 10380CS |
| Solid Length | 3.74 in |
| Suggested Max Deflection | 1.4 in |
| Suggested Max Load | 30 lbf |
| Total Coils | 52 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 10380 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 184.15 mm |
| Inside Diameter | 6.65 mm |
| Material | Spring Steel |
| Outside Diameter | 10.31 mm |
| Part Type | Standard |
| Rate | 3.68 N/mm |
| SKU | 10380CS |
| Solid Length | 95 mm |
| Suggested Max Deflection | 35.56 mm |
| Suggested Max Load | 133.44 N |
| Total Coils | 52 |
| Wire Diameter | 1.83 mm |
The 10380CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.072" diameter spring steel, the 10380 spring design exhibits reliable strength across its 52 active coils, withstanding repeated compression cycles with a maximum load of 30 lbf without succumbing to fatigue.
We manufacture the 10380 design to provide a compression spring that is 7.25" long at rest and provides a consistent rate of 21 lbs/in along its recommended maximum of 1.4" deflection. For best results, your application should fully accommodate the inner (0.262") and outer (0.406") diameters of this spring and be designed for its closed & ground end configuration.
