Century Spring

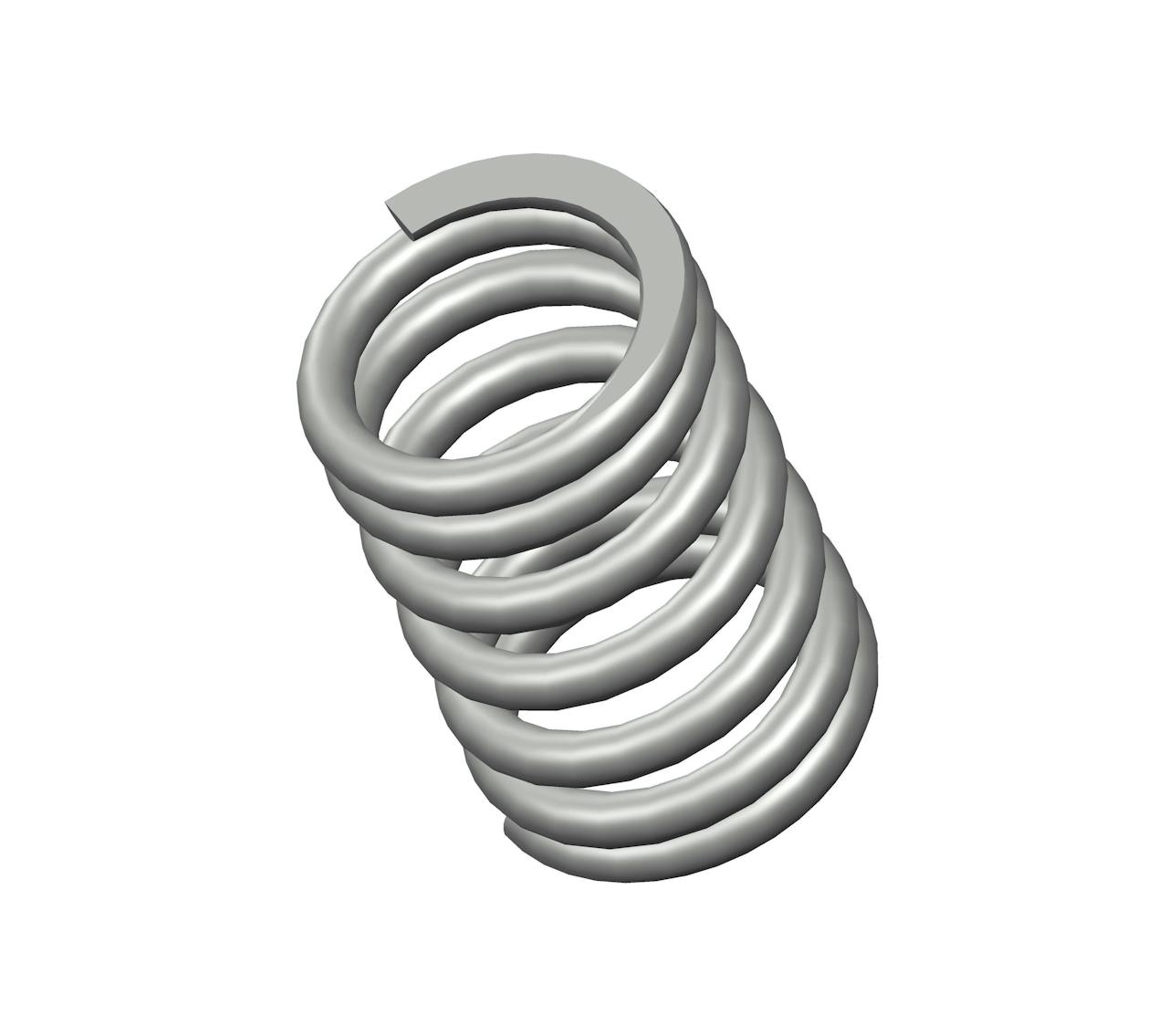

10359CS - 2.06" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 6.75 coils and closed & ground ends. This spring features an O.D. of 1.39", and an I.D. of 1.016".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10359
Ends Closed & Ground
Finish Zinc
Free Length 2.06 in
Inside Diameter 1.016 in
Material Spring Steel
Outside Diameter 1.39 in
Part Type Standard
Rate 213 lbs/in
SKU 10359CS
Solid Length 1.26 in
Suggested Max Deflection 0.62 in
Suggested Max Load 132 lbf
Total Coils 6.75
Wire Diameter 0.187 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10359
Ends Closed & Ground
Finish Zinc
Free Length 52.32 mm
Inside Diameter 25.81 mm
Material Spring Steel
Outside Diameter 35.31 mm
Part Type Standard
Rate 37.3 N/mm
SKU 10359CS
Solid Length 32 mm
Suggested Max Deflection 15.75 mm
Suggested Max Load 587.14 N
Total Coils 6.75
Wire Diameter 4.75 mm
The 10359CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.187" diameter spring steel, the 10359 spring design exhibits reliable strength across its 6.75 active coils, withstanding repeated compression cycles with a maximum load of 132 lbf without succumbing to fatigue.

We manufacture the 10359 design to provide a compression spring that is 2.06" long at rest and provides a consistent rate of 213 lbs/in along its recommended maximum of 0.62" deflection. For best results, your application should fully accommodate the inner (1.016") and outer (1.39") diameters of this spring and be designed for its closed & ground end configuration.
