Century Spring

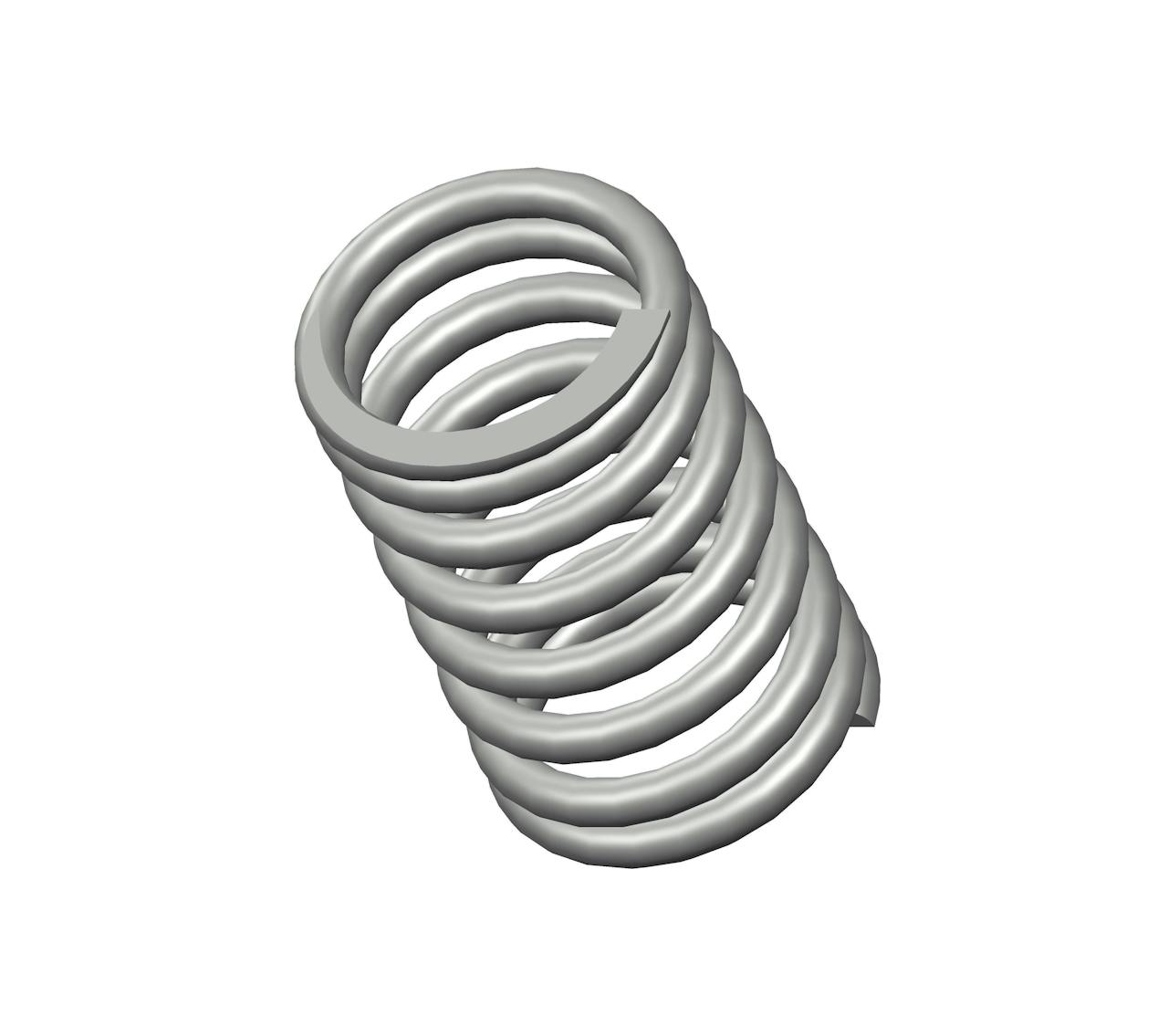

10354CS - 1.03" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.625", and an I.D. of 0.471".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10354
Ends Closed & Ground
Finish Zinc
Free Length 1.03 in
Inside Diameter 0.471 in
Material Spring Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 51 lbs/in
SKU 10354CS
Solid Length 0.62 in
Suggested Max Deflection 0.42 in
Suggested Max Load 21 lbf
Total Coils 8
Wire Diameter 0.077 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10354
Ends Closed & Ground
Finish Zinc
Free Length 26.16 mm
Inside Diameter 11.96 mm
Material Spring Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 8.93 N/mm
SKU 10354CS
Solid Length 15.75 mm
Suggested Max Deflection 10.67 mm
Suggested Max Load 93.41 N
Total Coils 8
Wire Diameter 1.96 mm
The compression spring 10354CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 10354 compression spring design exhibits exceptional tensile strength and resilience.

The 10354 design is manufactured with a free length of 1.03", with an outer diameter of 0.625", an inner diameter of 0.471", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 51 lbs/in.

The 10354CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 10354 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
