Century Spring

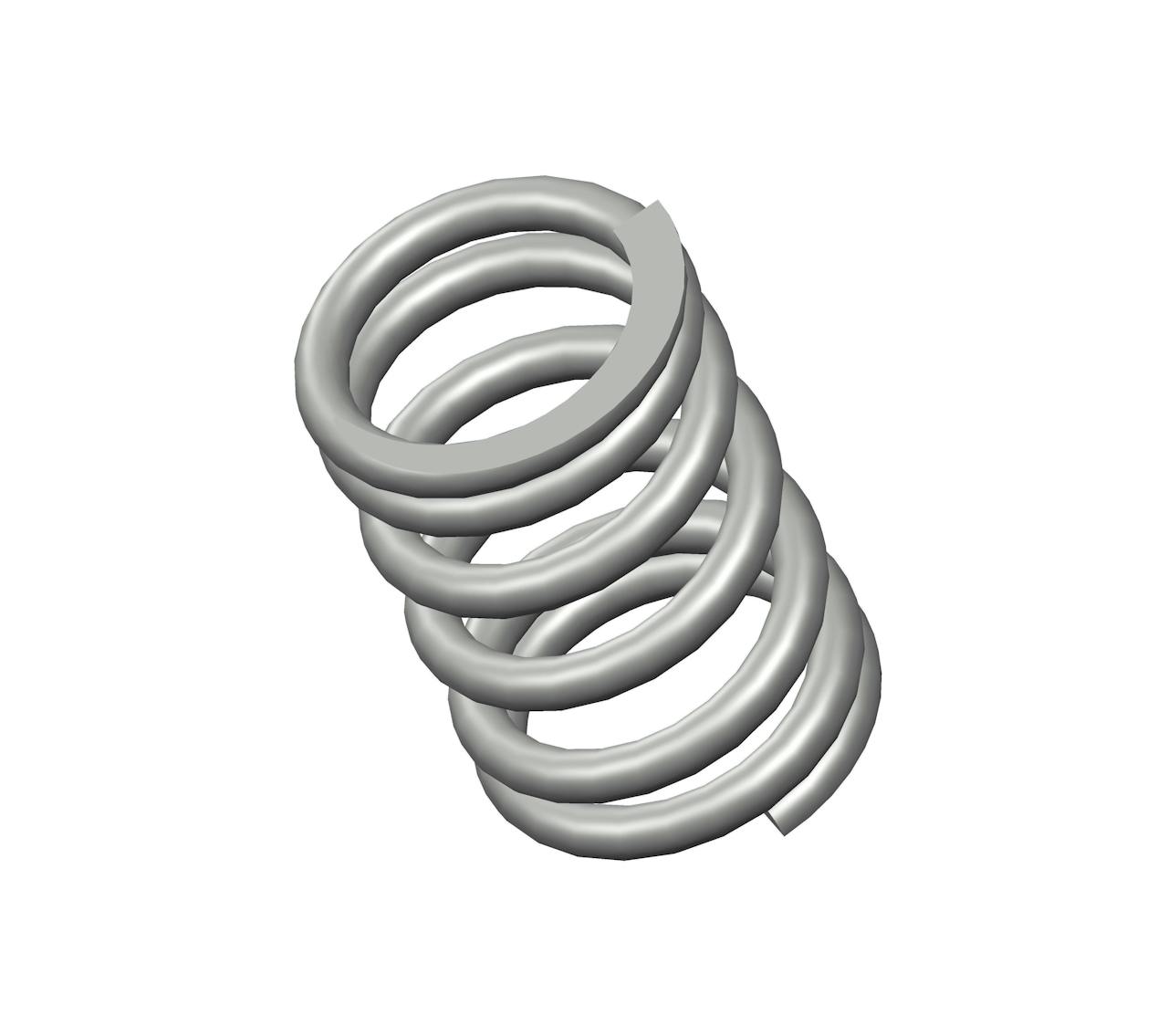

10329CS - 2.44" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 6.25 coils and closed & ground ends. This spring features an O.D. of 1.578", and an I.D. of 1.164".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10329
Ends Closed & Ground
Finish Zinc
Free Length 2.44 in
Inside Diameter 1.164 in
Material Spring Steel
Outside Diameter 1.578 in
Part Type Standard
Rate 241 lbs/in
SKU 10329CS
Solid Length 1.29 in
Suggested Max Deflection 0.66 in
Suggested Max Load 158 lbf
Total Coils 6.25
Wire Diameter 0.207 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10329
Ends Closed & Ground
Finish Zinc
Free Length 61.98 mm
Inside Diameter 29.57 mm
Material Spring Steel
Outside Diameter 40.08 mm
Part Type Standard
Rate 42.2 N/mm
SKU 10329CS
Solid Length 32.77 mm
Suggested Max Deflection 16.76 mm
Suggested Max Load 702.78 N
Total Coils 6.25
Wire Diameter 5.26 mm
The 10329CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.207" diameter spring steel, the 10329 spring design exhibits reliable strength across its 6.25 active coils, withstanding repeated compression cycles with a maximum load of 158 lbf without succumbing to fatigue.

We manufacture the 10329 design to provide a compression spring that is 2.44" long at rest and provides a consistent rate of 241 lbs/in along its recommended maximum of 0.66" deflection. For best results, your application should fully accommodate the inner (1.164") and outer (1.578") diameters of this spring and be designed for its closed & ground end configuration.
