10308CS - 2.75" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

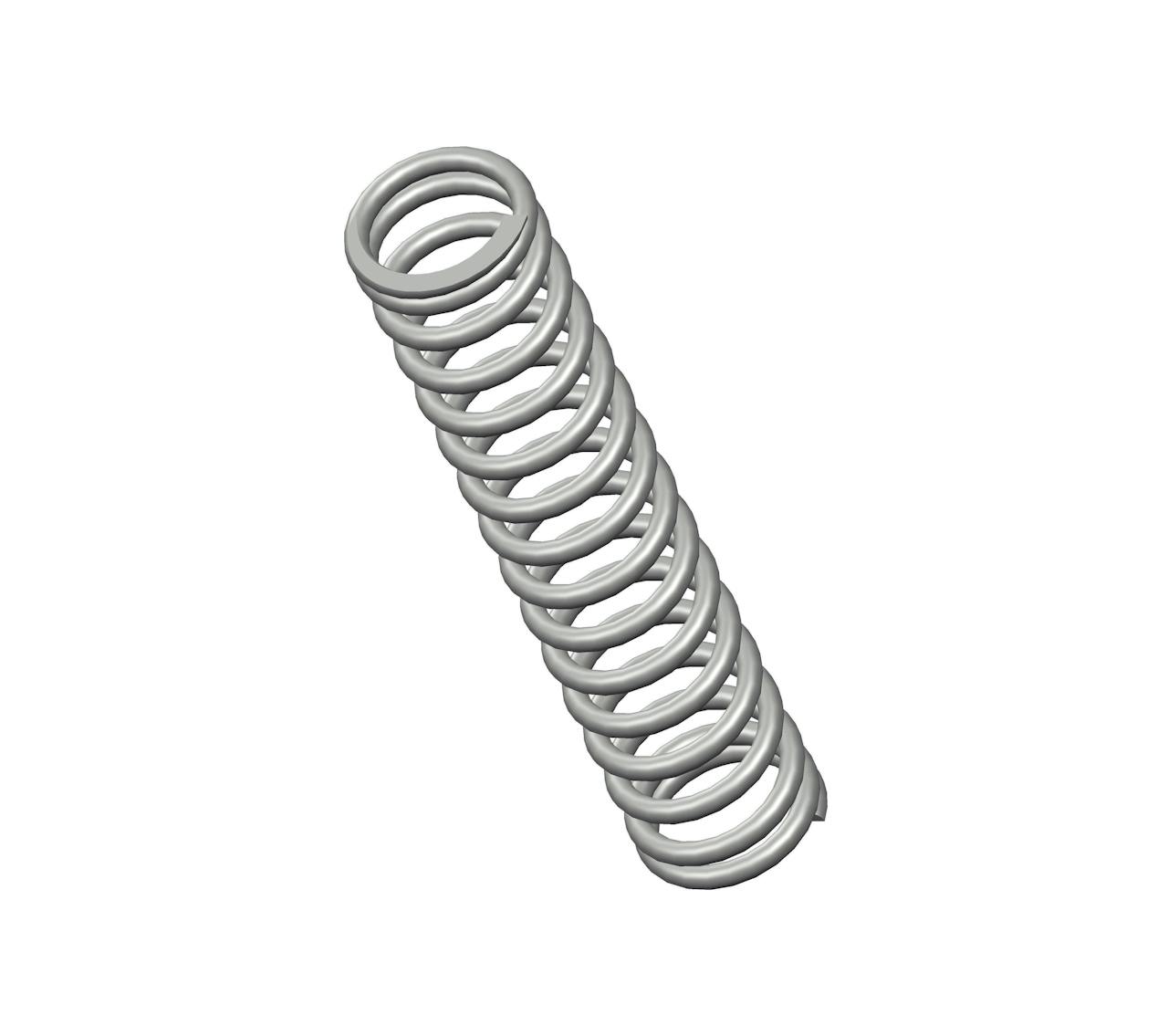

Compression spring manufactured from spring steel with 16 coils and closed & ground ends. This spring features an O.D. of 0.562", and an I.D. of 0.418".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10308
Ends Closed & Ground
Finish Zinc
Free Length 2.75 in
Inside Diameter 0.418 in
Material Spring Steel
Outside Diameter 0.562 in
Part Type Standard
Rate 23 lbs/in
SKU 10308CS
Solid Length 1.15 in
Suggested Max Deflection 0.95 in
Suggested Max Load 22 lbf
Total Coils 16
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10308
Ends Closed & Ground
Finish Zinc
Free Length 69.85 mm
Inside Diameter 10.62 mm
Material Spring Steel
Outside Diameter 14.27 mm
Part Type Standard
Rate 4.03 N/mm
SKU 10308CS
Solid Length 29.21 mm
Suggested Max Deflection 24.13 mm
Suggested Max Load 97.86 N
Total Coils 16
Wire Diameter 1.83 mm
The 10308CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.072" diameter spring steel, the 10308 spring design exhibits reliable strength across its 16 active coils, withstanding repeated compression cycles with a maximum load of 22 lbf without succumbing to fatigue.

We manufacture the 10308 design to provide a compression spring that is 2.75" long at rest and provides a consistent rate of 23 lbs/in along its recommended maximum of 0.95" deflection. For best results, your application should fully accommodate the inner (0.418") and outer (0.562") diameters of this spring and be designed for its closed & ground end configuration.
