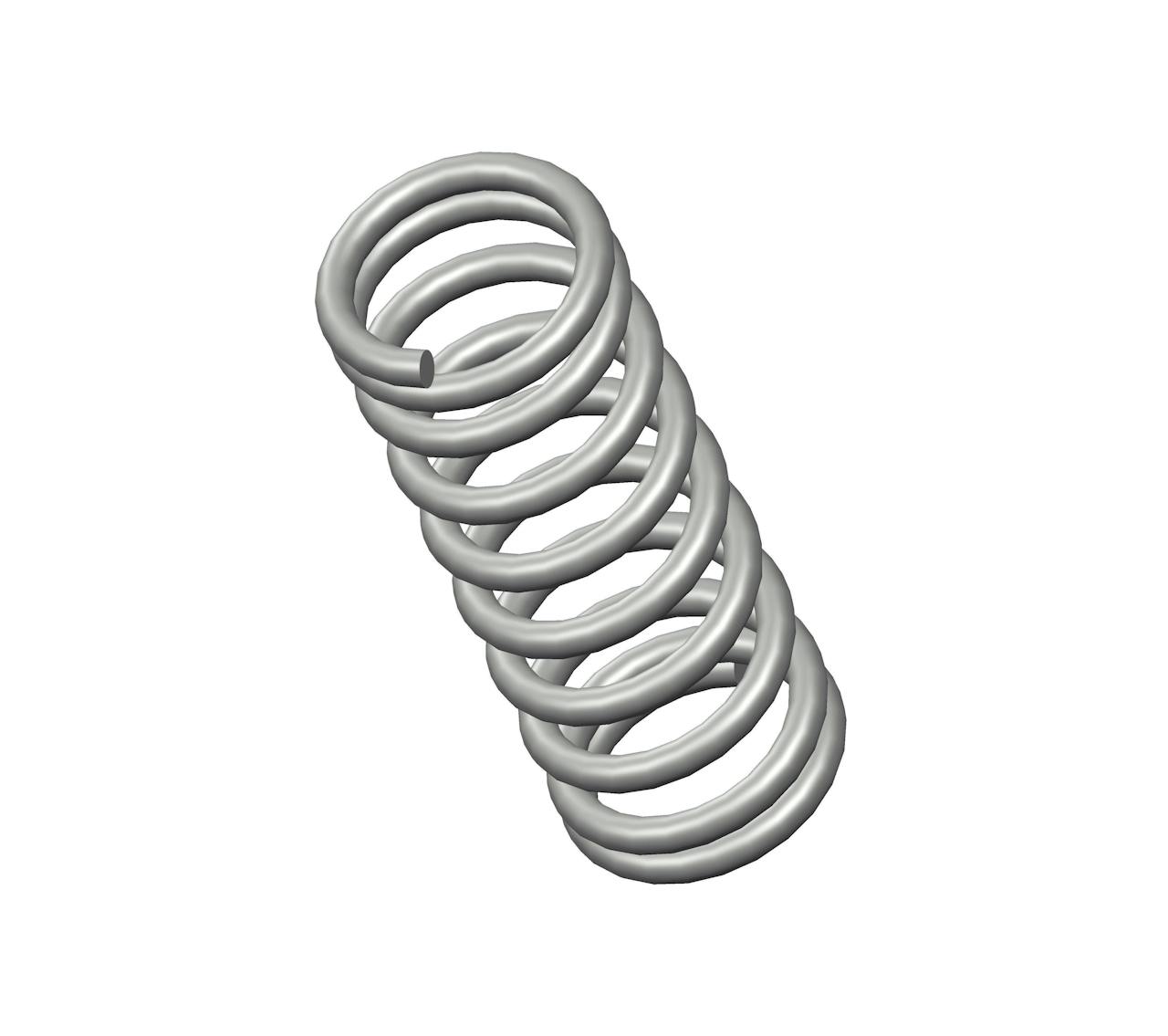

10257CS - 2" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 9.5 coils and closed ends. This spring features an O.D. of 0.718", and an I.D. of 0.536".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10257
Ends Closed
Finish Zinc
Free Length 2 in
Inside Diameter 0.536 in
Material Spring Steel
Outside Diameter 0.718 in
Part Type Standard
Rate 53 lbs/in
SKU 10257CS
Solid Length 0.96 in
Suggested Max Deflection 0.63 in
Suggested Max Load 34 lbf
Total Coils 9.5
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10257
Ends Closed
Finish Zinc
Free Length 50.8 mm
Inside Diameter 13.61 mm
Material Spring Steel
Outside Diameter 18.24 mm
Part Type Standard
Rate 9.28 N/mm
SKU 10257CS
Solid Length 24.38 mm
Suggested Max Deflection 16 mm
Suggested Max Load 151.23 N
Total Coils 9.5
Wire Diameter 2.31 mm
The 10257CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.091" diameter spring steel, the 10257 spring design exhibits reliable strength across its 9.5 active coils, withstanding repeated compression cycles with a maximum load of 34 lbf without succumbing to fatigue.

We manufacture the 10257 design to provide a compression spring that is 2" long at rest and provides a consistent rate of 53 lbs/in along its recommended maximum of 0.63" deflection. For best results, your application should fully accommodate the inner (0.536") and outer (0.718") diameters of this spring and be designed for its closed end configuration.
