Century Spring

10236CS - 7.75" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

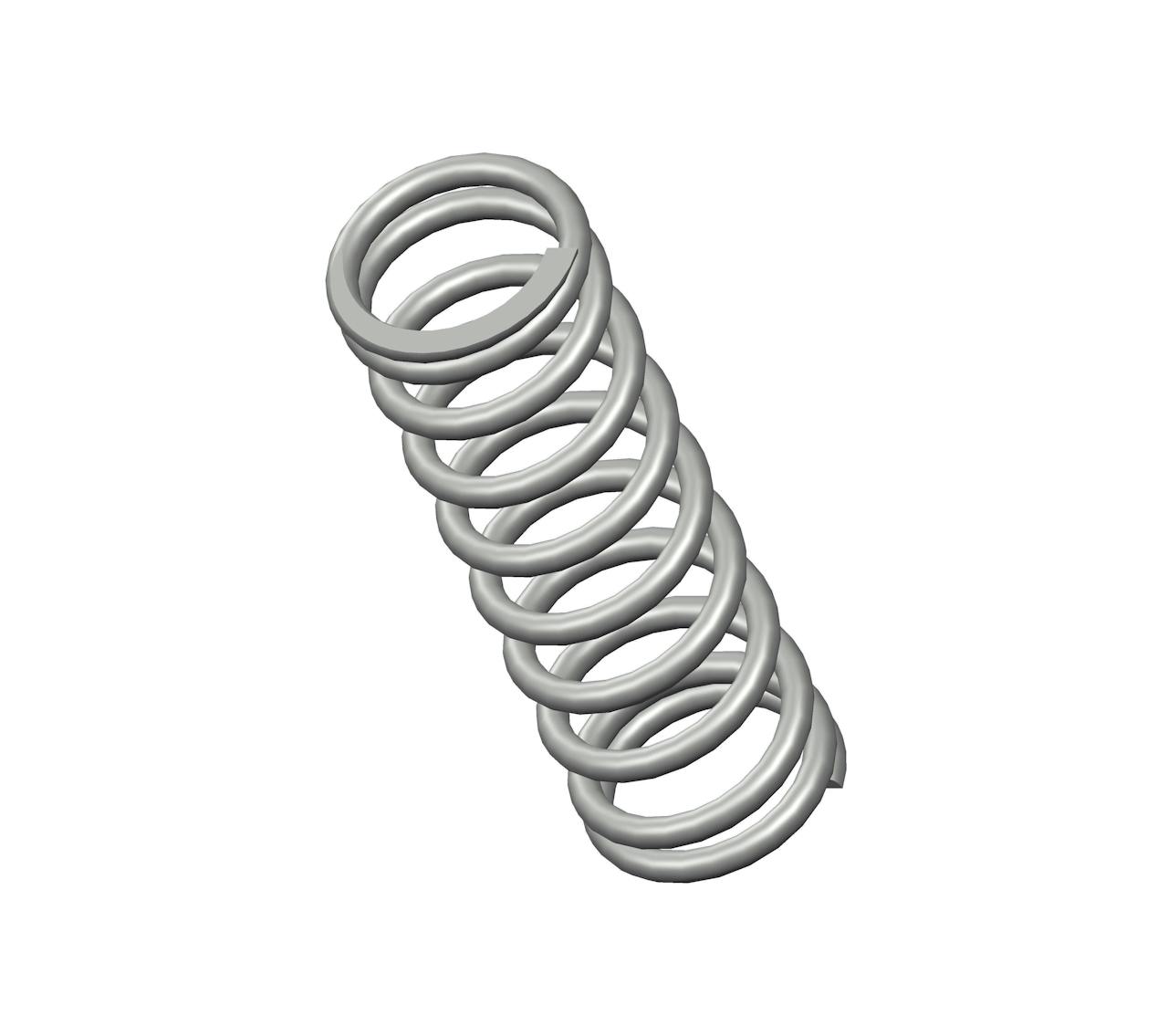

Compression spring manufactured from spring steel with 10 coils and closed & ground ends. This spring features an O.D. of 2.437", and an I.D. of 1.847".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10236
Ends Closed & Ground
Finish None
Free Length 7.75 in
Inside Diameter 1.847 in
Material Spring Steel
Outside Diameter 2.437 in
Part Type Standard
Rate 138 lbs/in
SKU 10236CS
Solid Length 2.95 in
Suggested Max Deflection 2 in
Suggested Max Load 278 lbf
Total Coils 10
Wire Diameter 0.295 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10236
Ends Closed & Ground
Finish None
Free Length 196.85 mm
Inside Diameter 46.91 mm
Material Spring Steel
Outside Diameter 61.9 mm
Part Type Standard
Rate 24.16 N/mm
SKU 10236CS
Solid Length 74.93 mm
Suggested Max Deflection 50.8 mm
Suggested Max Load 1236.54 N
Total Coils 10
Wire Diameter 7.49 mm
The 10236CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.295" diameter spring steel, the 10236 spring design exhibits reliable strength across its 10 active coils, withstanding repeated compression cycles with a maximum load of 278 lbf without succumbing to fatigue.

We manufacture the 10236 design to provide a compression spring that is 7.75" long at rest and provides a consistent rate of 138 lbs/in along its recommended maximum of 2" deflection. For best results, your application should fully accommodate the inner (1.847") and outer (2.437") diameters of this spring and be designed for its closed & ground end configuration.
