Century Spring

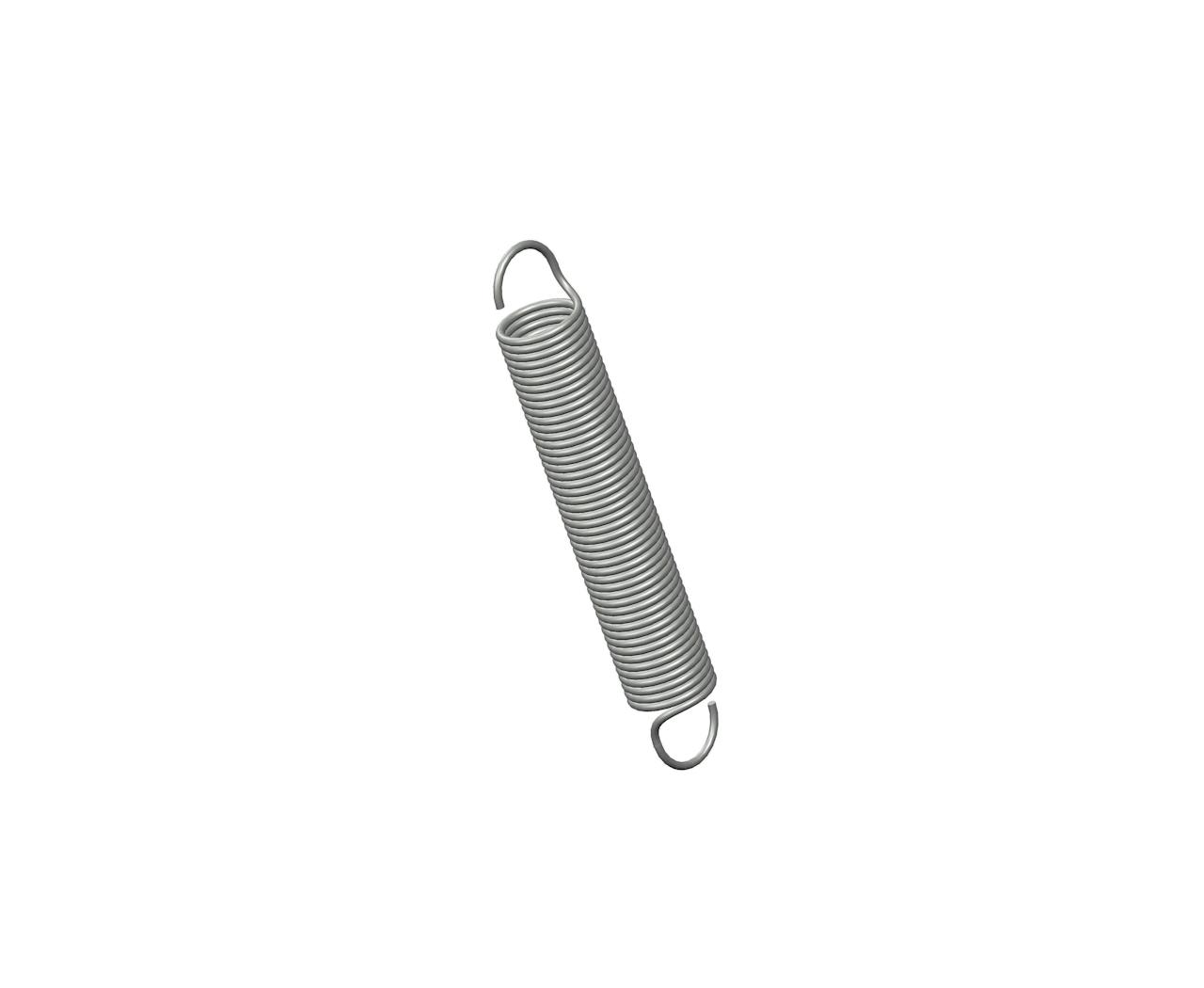

101CS - 7 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 1.062 Inch and an initial tension of 5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 101
Ends Machine Hook
Finish Zinc
Initial Tension 6.1 lb
Length 7 in
Material High Carbon Steel
Outside Diameter 1.062 in
Part Type Standard
Rate 3.7 lbs/in
SKU 101CS
Sugg Max Deflection 7.6 in
Sugg Max Load 33 lbf
Wind Direction Left
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 101
Ends Machine Hook
Finish Zinc
Initial Tension 2.77 kg
Length 177.8 mm
Material High Carbon Steel
Outside Diameter 26.97 mm
Part Type Standard
Rate 0.65 N/mm
SKU 101CS
Sugg Max Deflection 193.04 mm
Sugg Max Load 146.78 N
Wind Direction Left
Wire Diameter 2.67 mm
