Century Spring

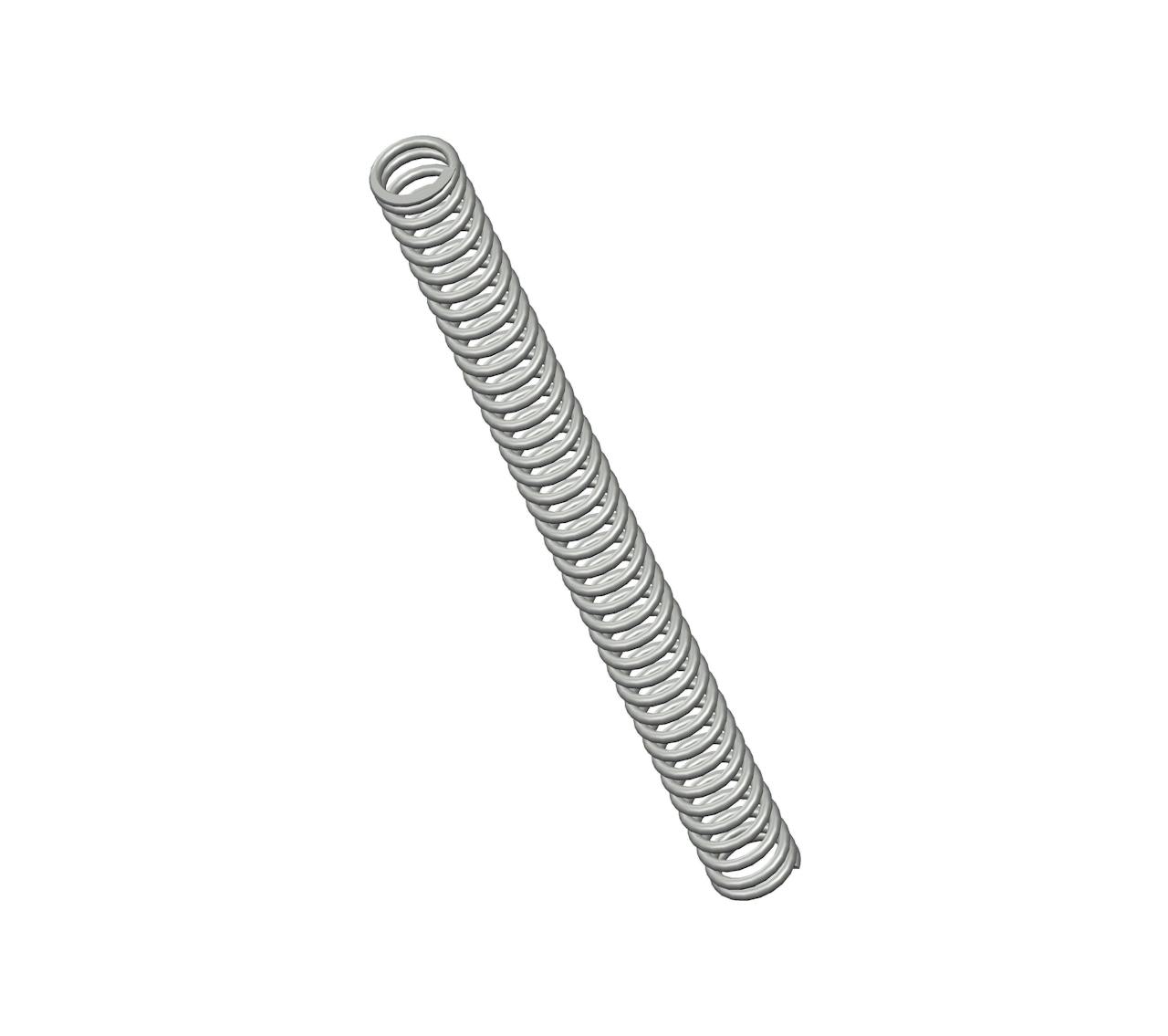

10173CS - 4.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 40 coils and closed & ground ends. This spring features an O.D. of 0.375", and an I.D. of 0.275".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10173
Ends Closed & Ground
Finish Zinc
Free Length 4.5 in
Inside Diameter 0.275 in
Material Spring Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 6.9 lbs/in
SKU 10173CS
Solid Length 2 in
Suggested Max Deflection 1.7 in
Suggested Max Load 12 lbf
Total Coils 40
Wire Diameter 0.05 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10173
Ends Closed & Ground
Finish Zinc
Free Length 114.3 mm
Inside Diameter 6.99 mm
Material Spring Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 1.21 N/mm
SKU 10173CS
Solid Length 50.8 mm
Suggested Max Deflection 43.18 mm
Suggested Max Load 53.38 N
Total Coils 40
Wire Diameter 1.27 mm
The 10173CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.05" diameter spring steel, the 10173 spring design exhibits reliable strength across its 40 active coils, withstanding repeated compression cycles with a maximum load of 12 lbf without succumbing to fatigue.

We manufacture the 10173 design to provide a compression spring that is 4.5" long at rest and provides a consistent rate of 6.9 lbs/in along its recommended maximum of 1.7" deflection. For best results, your application should fully accommodate the inner (0.275") and outer (0.375") diameters of this spring and be designed for its closed & ground end configuration.
