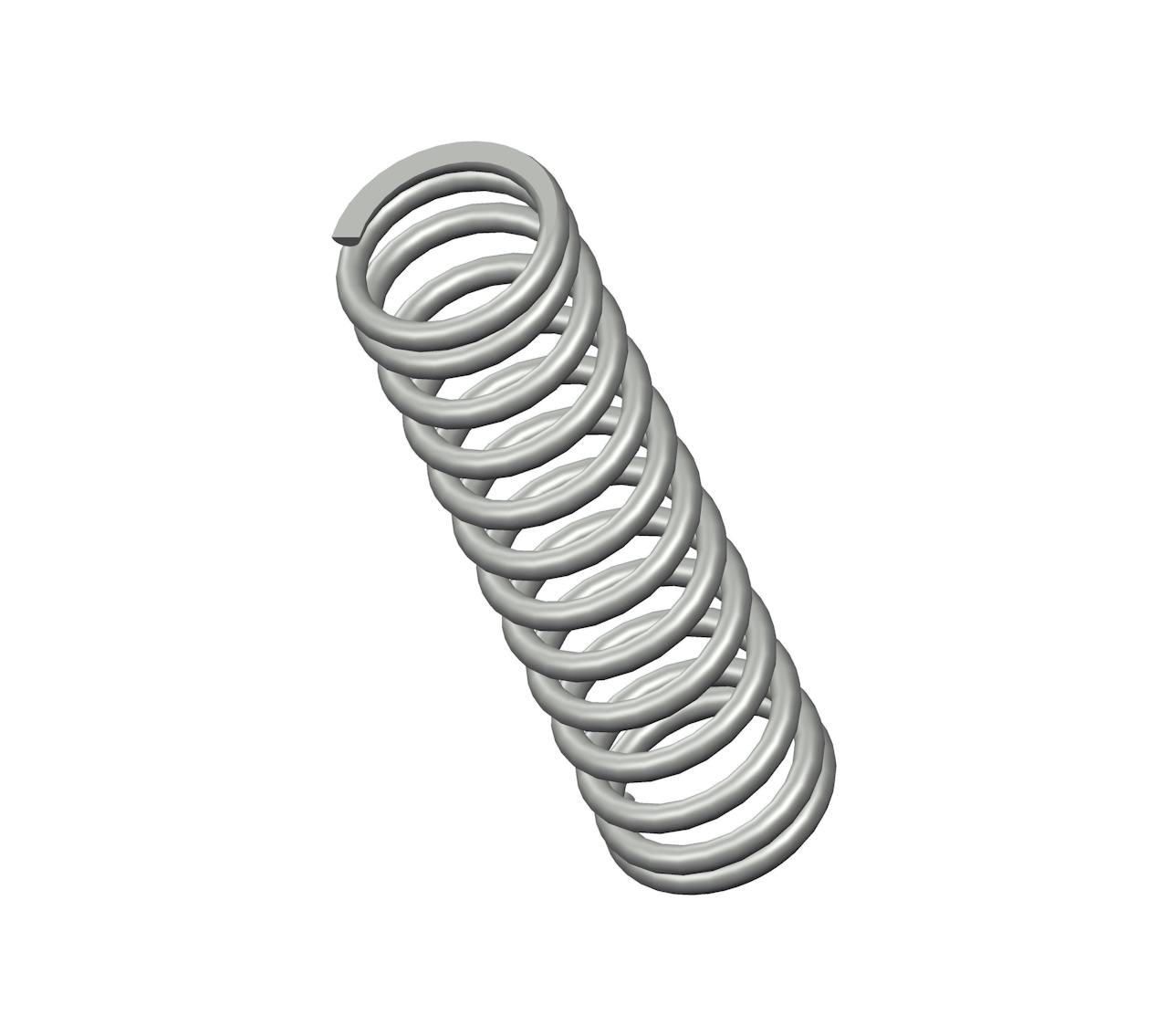

10147CS - 1.13" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 13 coils and closed & ground ends. This spring features an O.D. of 0.312", and an I.D. of 0.236".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10147
Ends Closed & Ground
Finish Zinc
Free Length 1.13 in
Inside Diameter 0.236 in
Material Spring Steel
Outside Diameter 0.312 in
Part Type Standard
Rate 13 lbs/in
SKU 10147CS
Solid Length 0.49 in
Suggested Max Deflection 0.5 in
Suggested Max Load 6.7 lbf
Total Coils 13
Wire Diameter 0.038 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10147
Ends Closed & Ground
Finish Zinc
Free Length 28.7 mm
Inside Diameter 5.99 mm
Material Spring Steel
Outside Diameter 7.92 mm
Part Type Standard
Rate 2.28 N/mm
SKU 10147CS
Solid Length 12.45 mm
Suggested Max Deflection 12.7 mm
Suggested Max Load 29.8 N
Total Coils 13
Wire Diameter 0.97 mm
The compression spring 10147CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 10147 compression spring design exhibits exceptional tensile strength and resilience.

The 10147 design is manufactured with a free length of 1.13", with an outer diameter of 0.312", an inner diameter of 0.236", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.

The 10147CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 10147 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
