Century Spring

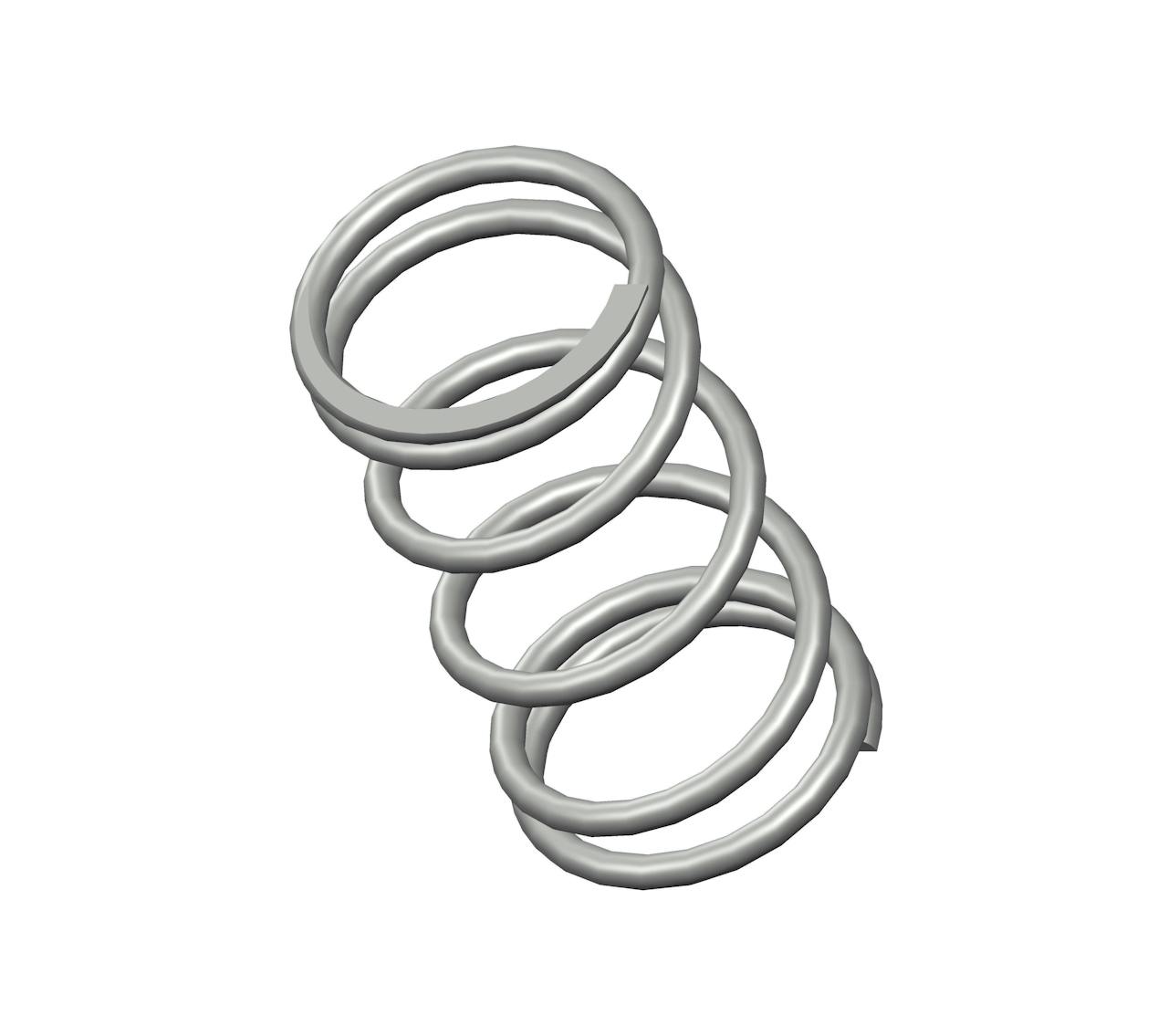

10143CS - 0.88" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.453", and an I.D. of 0.369".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10143
Ends Closed & Ground
Finish Zinc
Free Length 0.88 in
Inside Diameter 0.369 in
Material Spring Steel
Outside Diameter 0.453 in
Part Type Standard
Rate 16 lbs/in
SKU 10143CS
Solid Length 0.25 in
Suggested Max Deflection 0.39 in
Suggested Max Load 6.3 lbf
Total Coils 6
Wire Diameter 0.042 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10143
Ends Closed & Ground
Finish Zinc
Free Length 22.35 mm
Inside Diameter 9.37 mm
Material Spring Steel
Outside Diameter 11.51 mm
Part Type Standard
Rate 2.8 N/mm
SKU 10143CS
Solid Length 6.35 mm
Suggested Max Deflection 9.91 mm
Suggested Max Load 28.02 N
Total Coils 6
Wire Diameter 1.07 mm
The 10143CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.042" diameter spring steel, the 10143 spring design exhibits reliable strength across its 6 active coils, withstanding repeated compression cycles with a maximum load of 6.3 lbf without succumbing to fatigue.

We manufacture the 10143 design to provide a compression spring that is 0.88" long at rest and provides a consistent rate of 16 lbs/in along its recommended maximum of 0.39" deflection. For best results, your application should fully accommodate the inner (0.369") and outer (0.453") diameters of this spring and be designed for its closed & ground end configuration.
