Century Spring

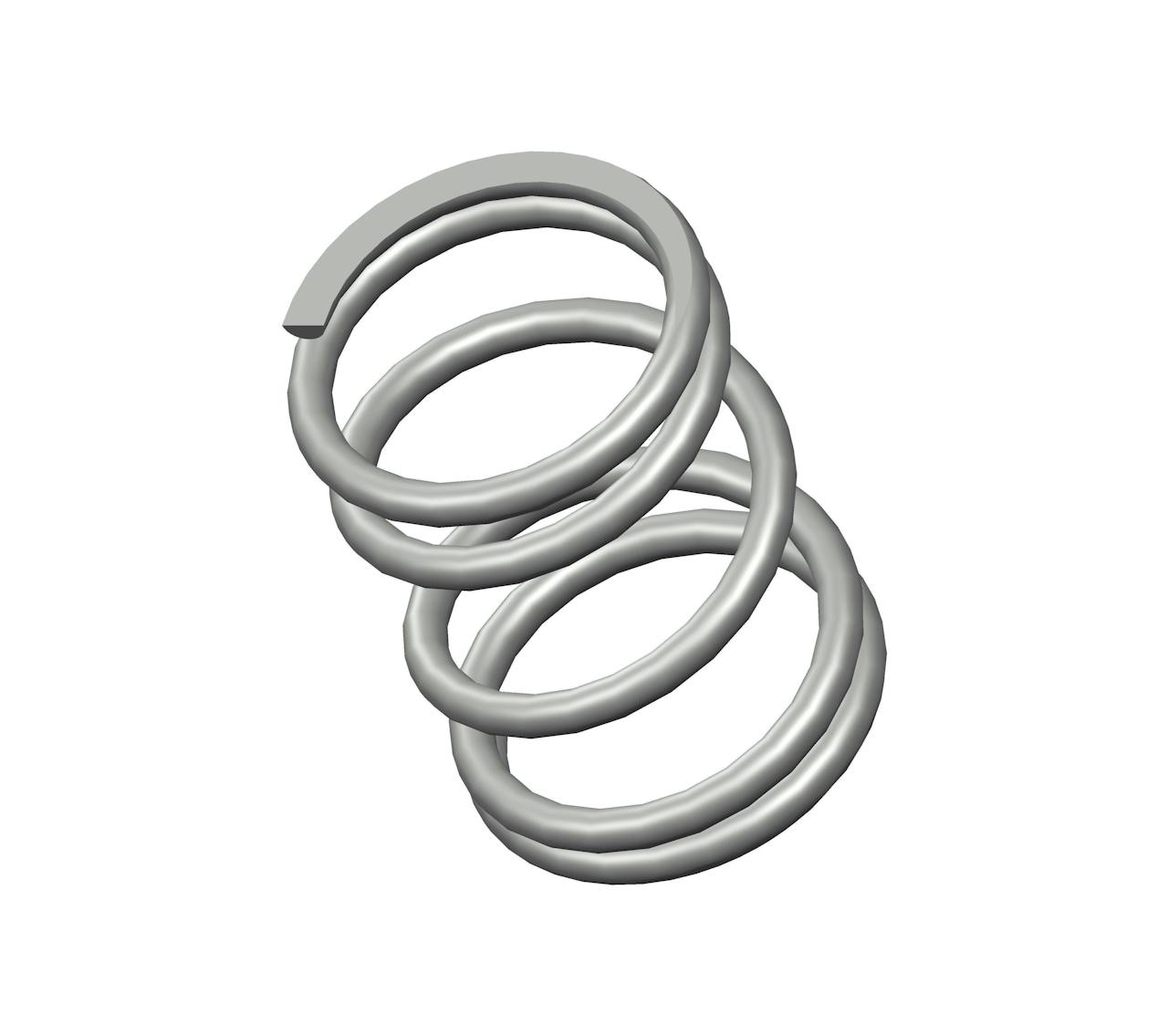

10134CS - 0.88" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.64", and an I.D. of 0.512".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10134
Ends Closed & Ground
Finish Zinc
Free Length 0.88 in
Inside Diameter 0.512 in
Material Spring Steel
Outside Diameter 0.64 in
Part Type Standard
Rate 42 lbs/in
SKU 10134CS
Solid Length 0.32 in
Suggested Max Deflection 0.35 in
Suggested Max Load 15 lbf
Total Coils 5
Wire Diameter 0.064 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10134
Ends Closed & Ground
Finish Zinc
Free Length 22.35 mm
Inside Diameter 13 mm
Material Spring Steel
Outside Diameter 16.26 mm
Part Type Standard
Rate 7.35 N/mm
SKU 10134CS
Solid Length 8.13 mm
Suggested Max Deflection 8.89 mm
Suggested Max Load 66.72 N
Total Coils 5
Wire Diameter 1.63 mm
The 10134CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.064" diameter spring steel, the 10134 spring design exhibits reliable strength across its 5 active coils, withstanding repeated compression cycles with a maximum load of 15 lbf without succumbing to fatigue.

We manufacture the 10134 design to provide a compression spring that is 0.88" long at rest and provides a consistent rate of 42 lbs/in along its recommended maximum of 0.35" deflection. For best results, your application should fully accommodate the inner (0.512") and outer (0.64") diameters of this spring and be designed for its closed & ground end configuration.
