Century Spring

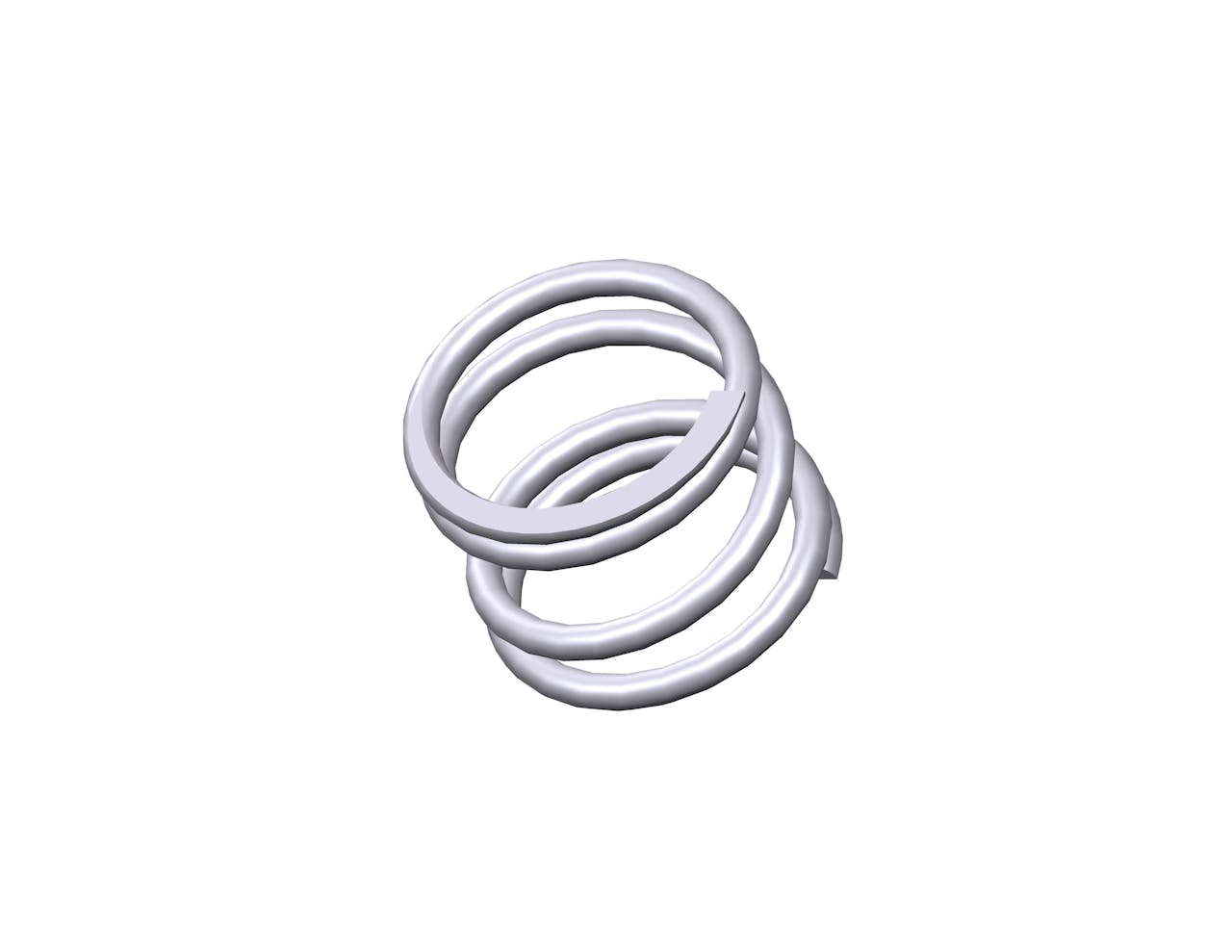

10131CS - 1.28" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 4 coils and closed & ground ends. This spring features an O.D. of 1.562", and an I.D. of 1.25".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10131
Ends Closed & Ground
Finish Zinc
Free Length 1.28 in
Inside Diameter 1.25 in
Material Spring Steel
Outside Diameter 1.562 in
Part Type Standard
Rate 153 lbs/in
SKU 10131CS
Solid Length 0.62 in
Suggested Max Deflection 0.48 in
Suggested Max Load 73 lbf
Total Coils 4
Wire Diameter 0.156 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10131
Ends Closed & Ground
Finish Zinc
Free Length 32.51 mm
Inside Diameter 31.75 mm
Material Spring Steel
Outside Diameter 39.67 mm
Part Type Standard
Rate 26.79 N/mm
SKU 10131CS
Solid Length 15.75 mm
Suggested Max Deflection 12.19 mm
Suggested Max Load 324.7 N
Total Coils 4
Wire Diameter 3.96 mm
The 10131CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.156" diameter spring steel, the 10131 spring design exhibits reliable strength across its 4 active coils, withstanding repeated compression cycles with a maximum load of 73 lbf without succumbing to fatigue.

We manufacture the 10131 design to provide a compression spring that is 1.28" long at rest and provides a consistent rate of 153 lbs/in along its recommended maximum of 0.48" deflection. For best results, your application should fully accommodate the inner (1.25") and outer (1.562") diameters of this spring and be designed for its closed & ground end configuration.
