Century Spring

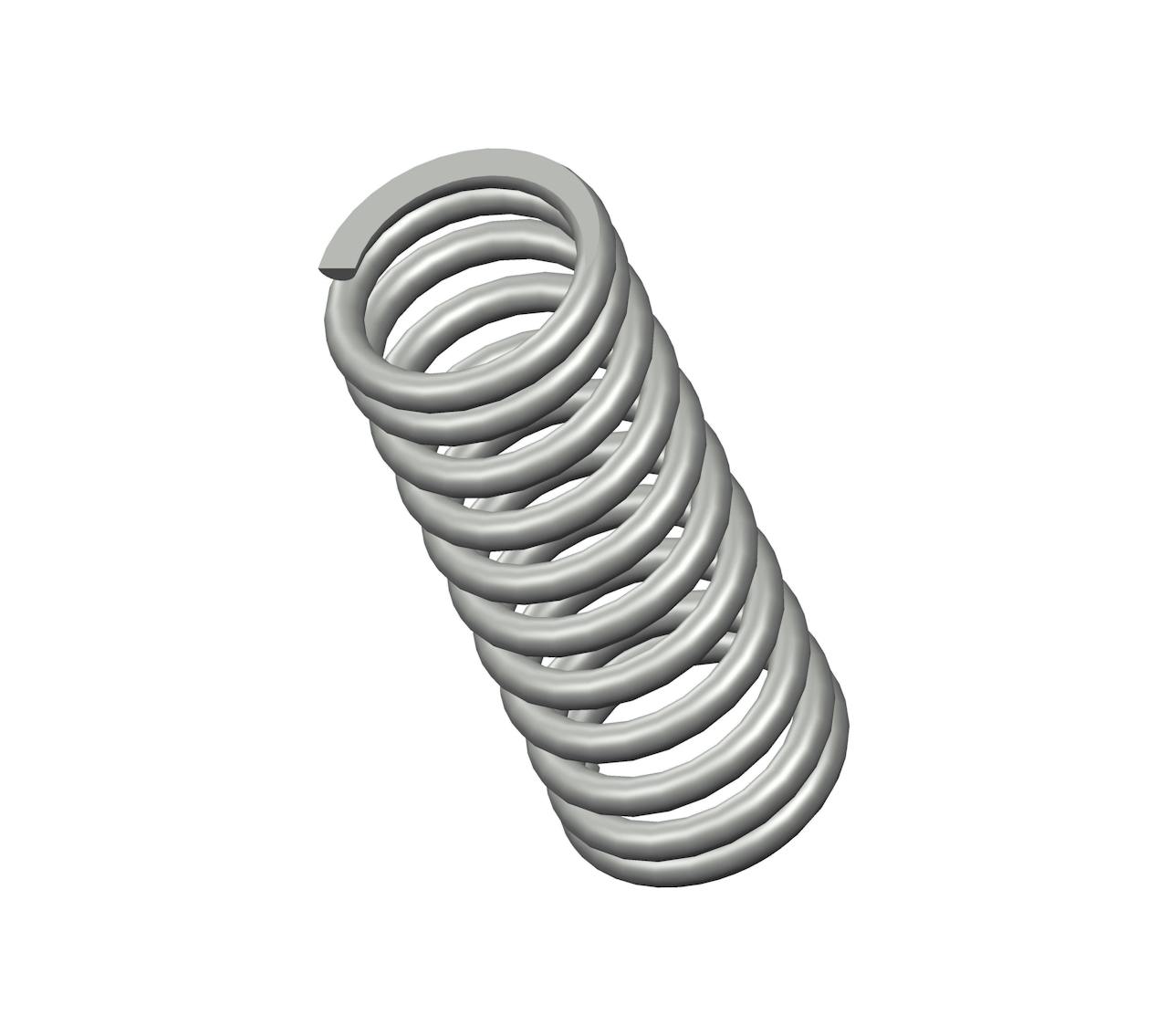

10119CS - 2.25" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 11 coils and closed & ground ends. This spring features an O.D. of 0.875", and an I.D. of 0.649".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10119
Ends Closed & Ground
Finish Zinc
Free Length 2.25 in
Inside Diameter 0.649 in
Material Spring Steel
Outside Diameter 0.875 in
Part Type Standard
Rate 59 lbs/in
SKU 10119CS
Solid Length 1.24 in
Suggested Max Deflection 0.87 in
Suggested Max Load 51 lbf
Total Coils 11
Wire Diameter 0.113 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10119
Ends Closed & Ground
Finish Zinc
Free Length 57.15 mm
Inside Diameter 16.48 mm
Material Spring Steel
Outside Diameter 22.23 mm
Part Type Standard
Rate 10.33 N/mm
SKU 10119CS
Solid Length 31.5 mm
Suggested Max Deflection 22.1 mm
Suggested Max Load 226.85 N
Total Coils 11
Wire Diameter 2.87 mm
The 10119CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.113" diameter spring steel, the 10119 spring design exhibits reliable strength across its 11 active coils, withstanding repeated compression cycles with a maximum load of 51 lbf without succumbing to fatigue.

We manufacture the 10119 design to provide a compression spring that is 2.25" long at rest and provides a consistent rate of 59 lbs/in along its recommended maximum of 0.87" deflection. For best results, your application should fully accommodate the inner (0.649") and outer (0.875") diameters of this spring and be designed for its closed & ground end configuration.
