Century Spring

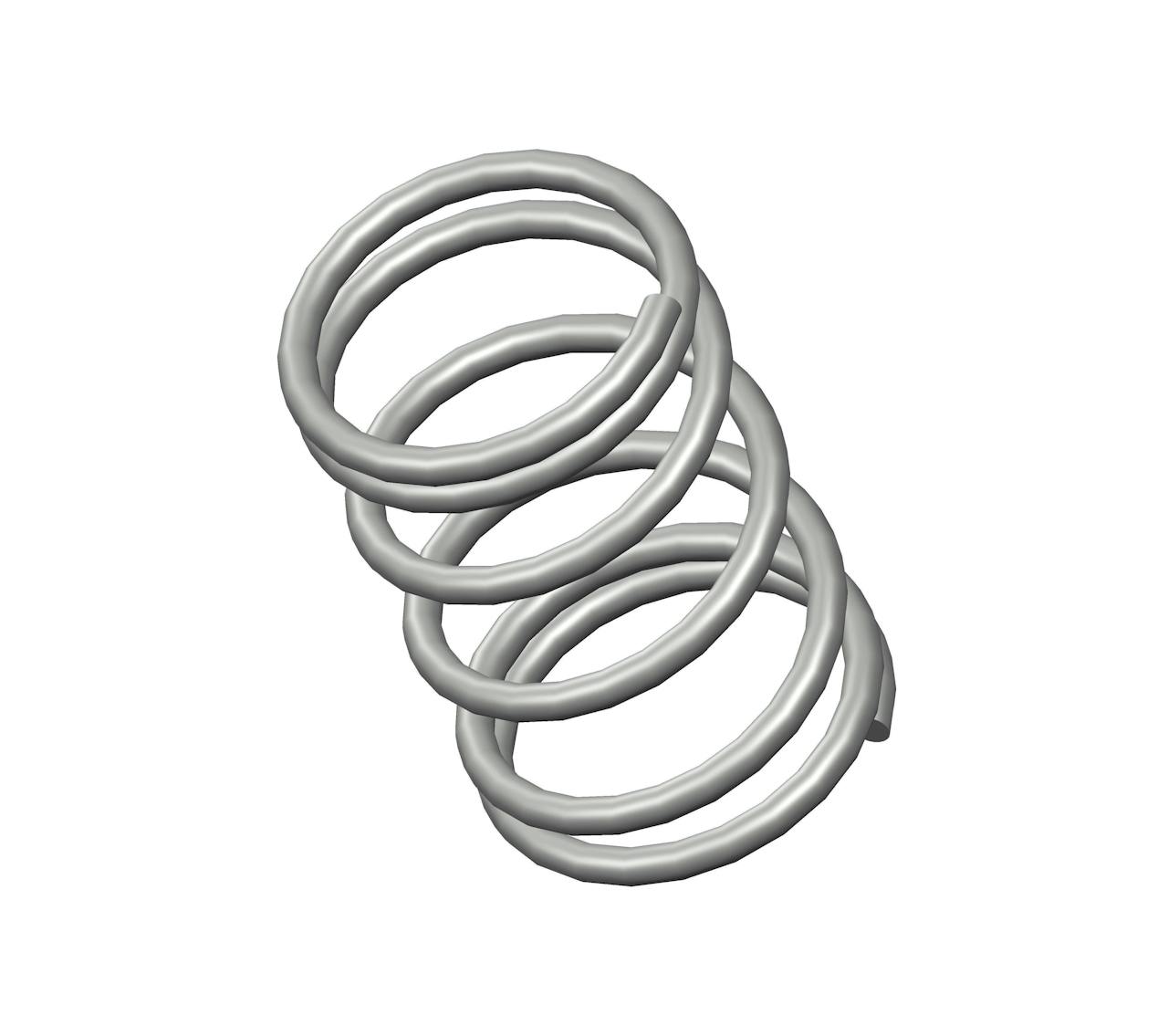

10072CS - 0.75" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 6 coils and closed ends. This spring features an O.D. of 0.453", and an I.D. of 0.371".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10072
Ends Closed
Finish Zinc
Free Length 0.75 in
Inside Diameter 0.371 in
Material Spring Steel
Outside Diameter 0.453 in
Part Type Standard
Rate 15 lbs/in
SKU 10072CS
Solid Length 0.29 in
Suggested Max Deflection 0.4 in
Suggested Max Load 5.9 lbf
Total Coils 6
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10072
Ends Closed
Finish Zinc
Free Length 19.05 mm
Inside Diameter 9.42 mm
Material Spring Steel
Outside Diameter 11.51 mm
Part Type Standard
Rate 2.63 N/mm
SKU 10072CS
Solid Length 7.37 mm
Suggested Max Deflection 10.16 mm
Suggested Max Load 26.24 N
Total Coils 6
Wire Diameter 1.04 mm
The 10072 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 10072CS compression spring is designed with a free length of 2" total of 20 coils, and a rate of 18 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 10072 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
