Century Spring

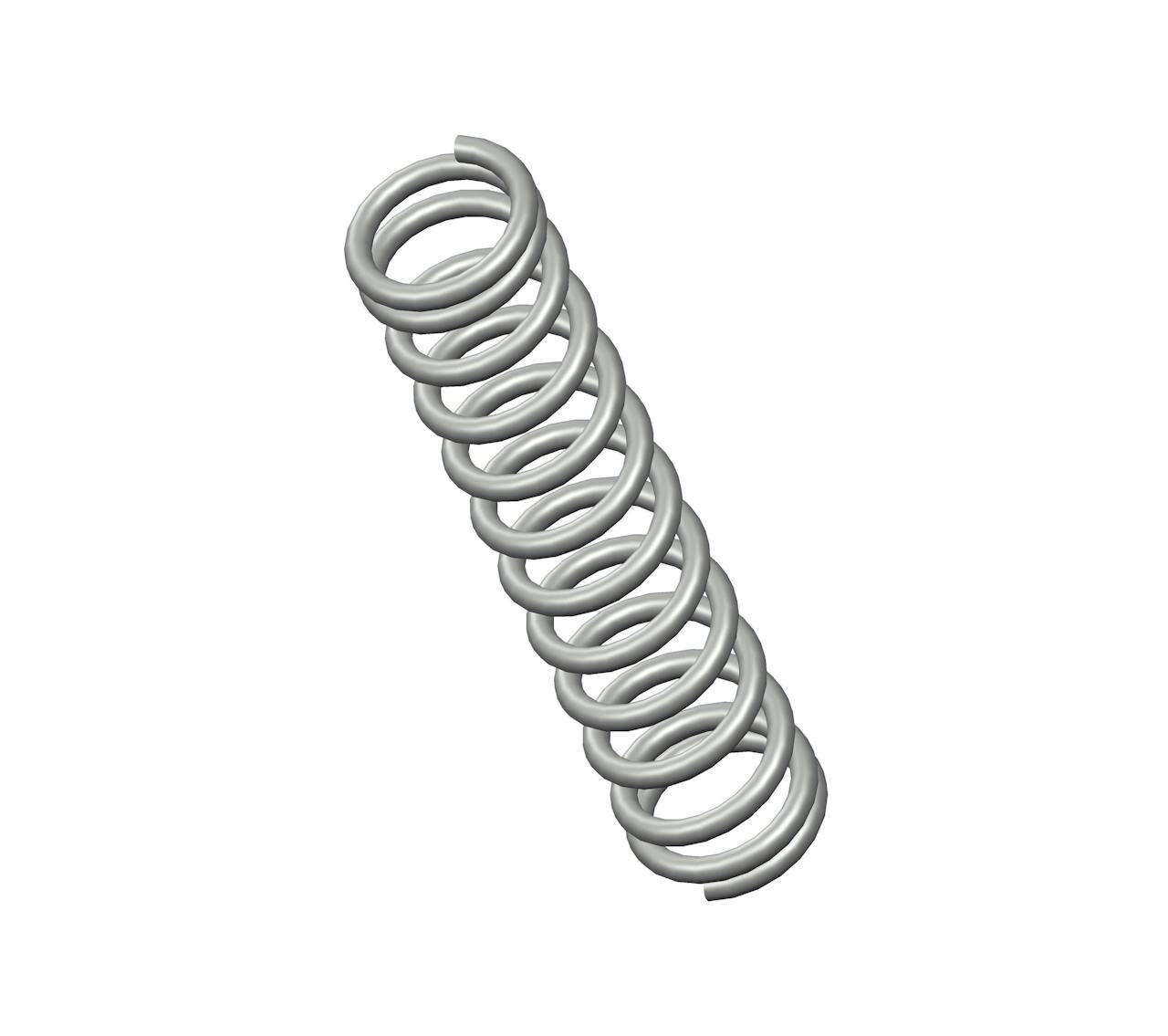

10042CS - 2.38" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 12.5 coils and closed ends. This spring features an O.D. of 0.5", and an I.D. of 0.366".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10042
Ends Closed
Finish Zinc
Free Length 2.38 in
Inside Diameter 0.366 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 34 lbs/in
SKU 10042CS
Solid Length 0.9 in
Suggested Max Deflection 0.62 in
Suggested Max Load 21 lbf
Total Coils 12.5
Wire Diameter 0.067 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10042
Ends Closed
Finish Zinc
Free Length 60.45 mm
Inside Diameter 9.3 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 5.95 N/mm
SKU 10042CS
Solid Length 22.86 mm
Suggested Max Deflection 15.75 mm
Suggested Max Load 93.41 N
Total Coils 12.5
Wire Diameter 1.7 mm
The 10042 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 10042CS compression spring is designed with a free length of 1" total of 10 coils, and a rate of 13 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 10042 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
