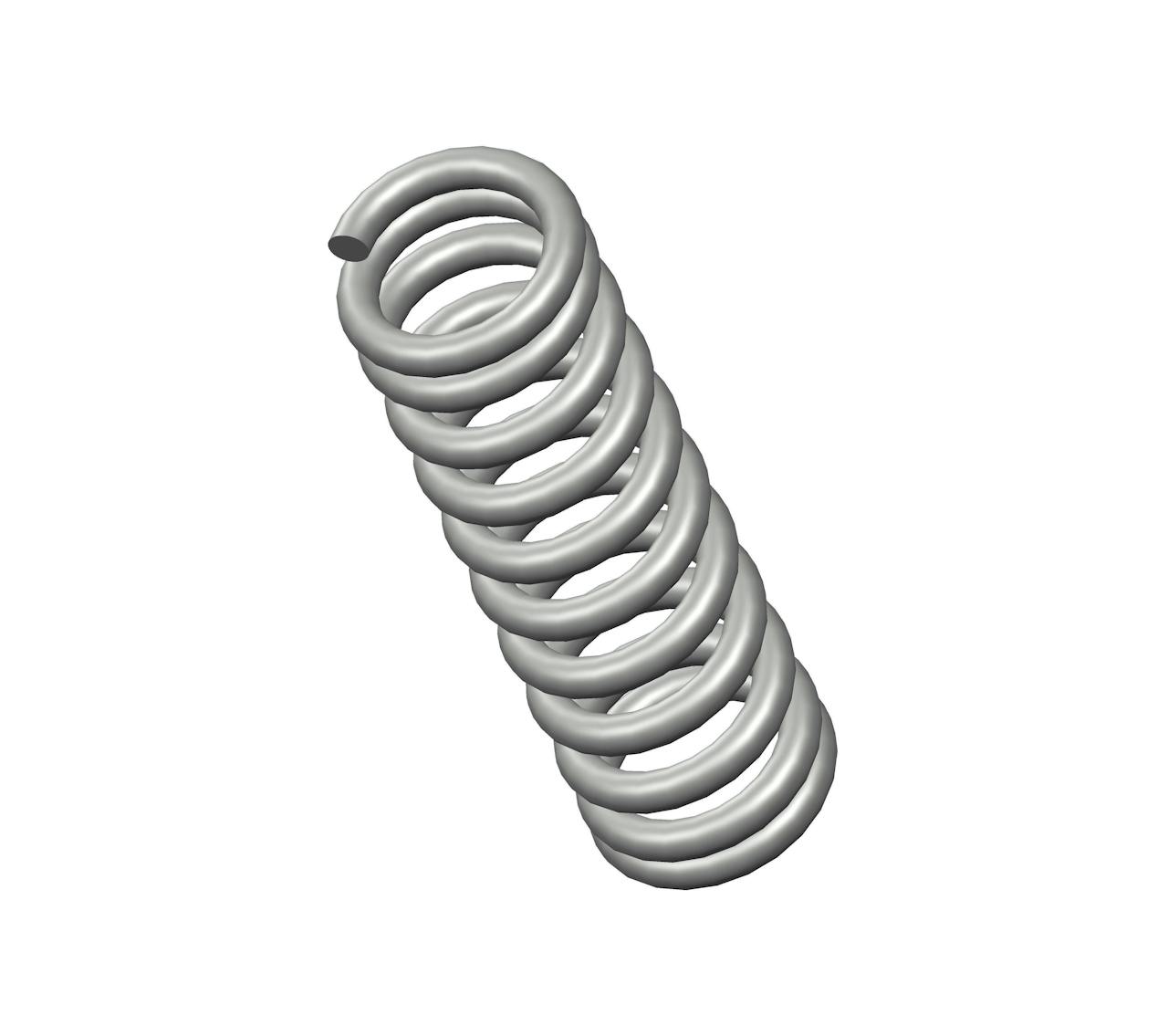

10007CS - 0.34" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 11 coils and closed ends. This spring features an O.D. of 0.1", and an I.D. of 0.068".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10007
Ends Closed
Finish None
Free Length 0.34 in
Inside Diameter 0.068 in
Material Music Wire
Outside Diameter 0.1 in
Part Type Standard
Rate 18 lbs/in
SKU 10007CS
Solid Length 0.19 in
Suggested Max Deflection 0.13 in
Suggested Max Load 2.3 lbf
Total Coils 11
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10007
Ends Closed
Finish None
Free Length 8.64 mm
Inside Diameter 1.73 mm
Material Music Wire
Outside Diameter 2.54 mm
Part Type Standard
Rate 3.15 N/mm
SKU 10007CS
Solid Length 4.83 mm
Suggested Max Deflection 3.3 mm
Suggested Max Load 10.23 N
Total Coils 11
Wire Diameter 0.41 mm
The 10007CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.016" diameter music wire, the 10007 spring design exhibits reliable strength across its 11 active coils, withstanding repeated compression cycles with a maximum load of 2.3 lbf without succumbing to fatigue.

We manufacture the 10007 design to provide a compression spring that is 0.34" long at rest and provides a consistent rate of 18 lbs/in along its recommended maximum of 0.13" deflection. For best results, your application should fully accommodate the inner (0.068") and outer (0.1") diameters of this spring and be designed for its closed end configuration.
