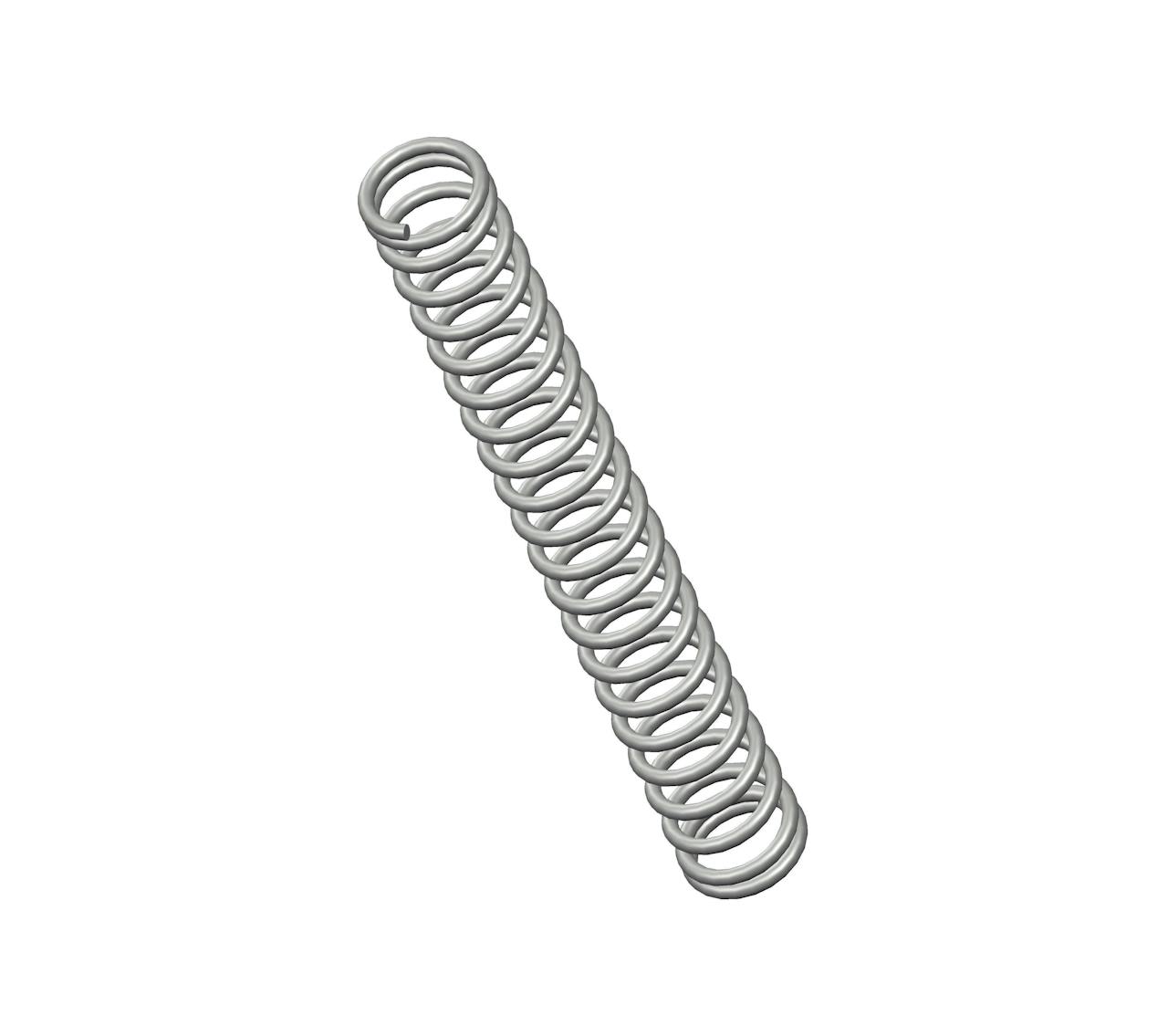

10002CS - 3" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 21.5 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.281".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 10002 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 3 in |
| Inside Diameter | 0.281 in |
| Material | Spring Steel |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 10 lbs/in |
| SKU | 10002CS |
| Solid Length | 1.06 in |
| Suggested Max Deflection | 1 in |
| Suggested Max Load | 10 lbf |
| Total Coils | 21.5 |
| Wire Diameter | 0.047 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 10002 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 76.2 mm |
| Inside Diameter | 7.14 mm |
| Material | Spring Steel |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 1.75 N/mm |
| SKU | 10002CS |
| Solid Length | 26.92 mm |
| Suggested Max Deflection | 25.4 mm |
| Suggested Max Load | 44.48 N |
| Total Coils | 21.5 |
| Wire Diameter | 1.19 mm |
The compression spring 10002CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 10002 compression spring design exhibits exceptional tensile strength and resilience.
The 10002 design is manufactured with a free length of 3", with an outer diameter of 0.375", an inner diameter of 0.281", and a total of 21.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 10 lbs/in.
The 10002CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 10002 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 10002 design is manufactured with a free length of 3", with an outer diameter of 0.375", an inner diameter of 0.281", and a total of 21.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 10 lbs/in.
The 10002CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 10002 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
