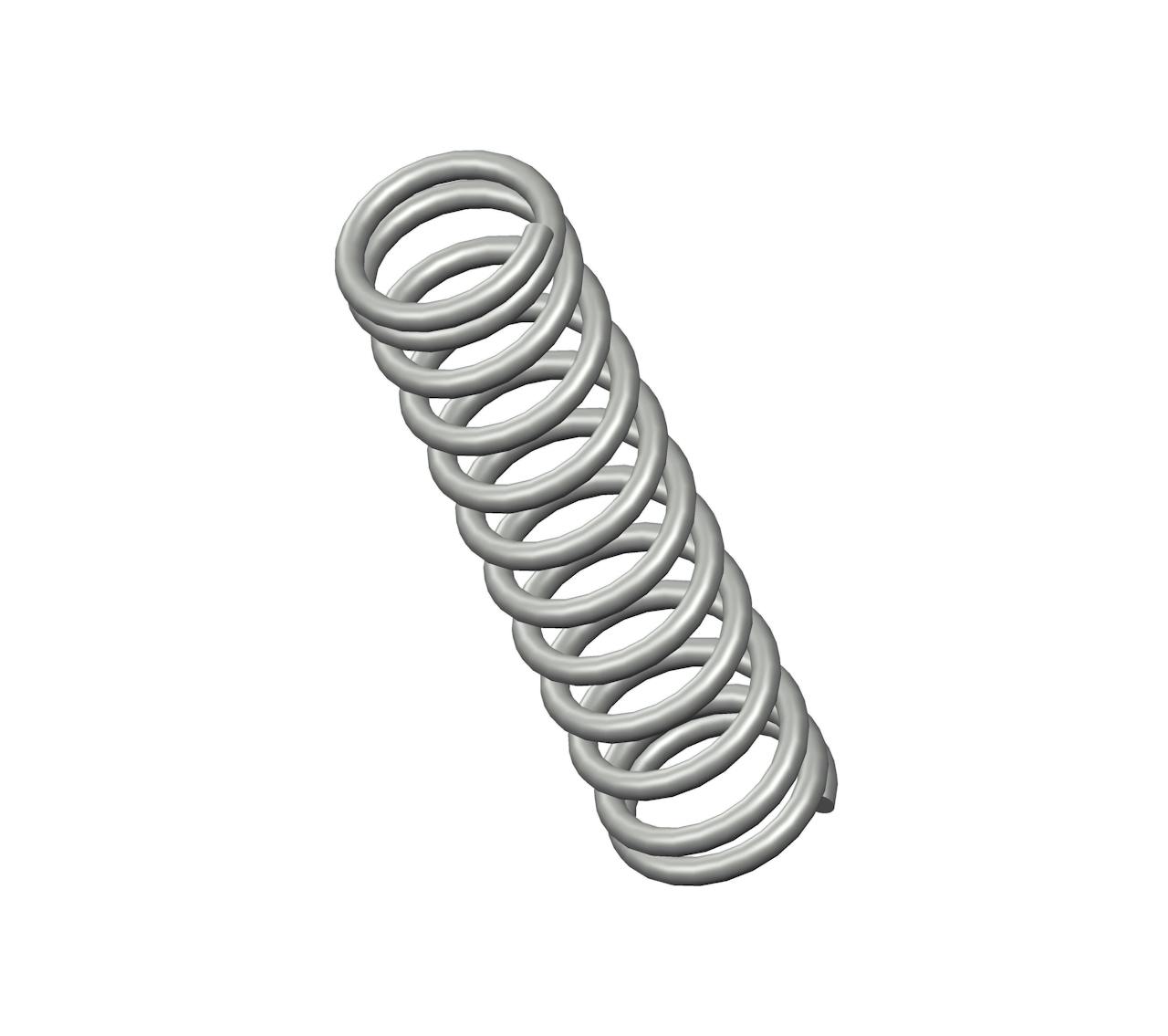

10001CS - 1.5" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 12 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.281".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10001
Ends Closed
Finish Zinc
Free Length 1.5 in
Inside Diameter 0.281 in
Material Music Wire
Outside Diameter 0.375 in
Part Type Standard
Rate 20 lbs/in
SKU 10001CS
Solid Length 0.61 in
Suggested Max Deflection 0.73 in
Suggested Max Load 15 lbf
Total Coils 12
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10001
Ends Closed
Finish Zinc
Free Length 38.1 mm
Inside Diameter 7.14 mm
Material Music Wire
Outside Diameter 9.53 mm
Part Type Standard
Rate 3.5 N/mm
SKU 10001CS
Solid Length 15.49 mm
Suggested Max Deflection 18.54 mm
Suggested Max Load 66.72 N
Total Coils 12
Wire Diameter 1.19 mm
The 10001CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.047" diameter music wire, the 10001 spring design exhibits reliable strength across its 12 active coils, withstanding repeated compression cycles with a maximum load of 15 lbf without succumbing to fatigue.

We manufacture the 10001 design to provide a compression spring that is 1.5" long at rest and provides a consistent rate of 20 lbs/in along its recommended maximum of 0.73" deflection. For best results, your application should fully accommodate the inner (0.281") and outer (0.375") diameters of this spring and be designed for its closed end configuration.
