Century Spring

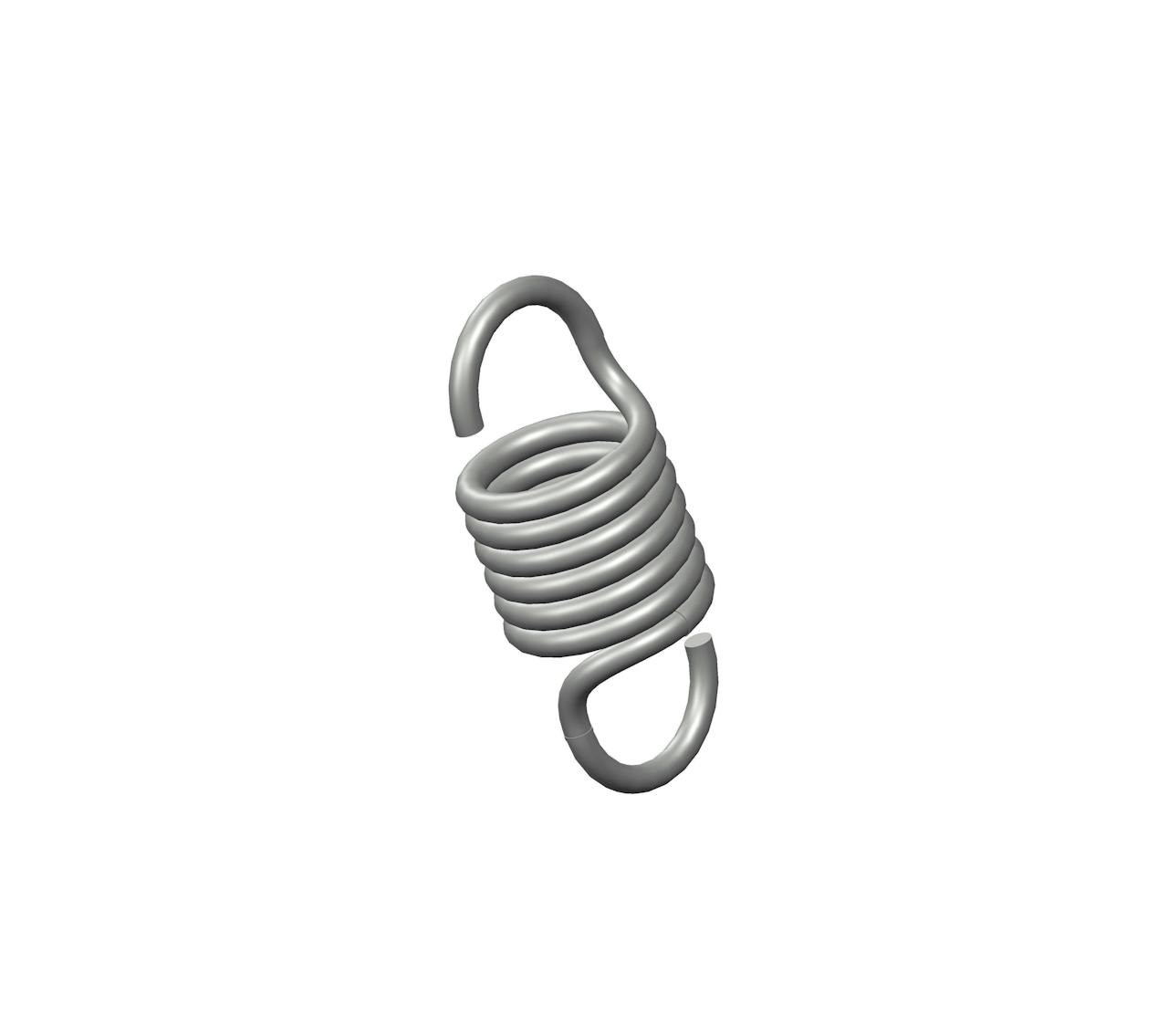

0316CS - 2 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.734 Inch and an initial tension of 13 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 316
Ends Machine Hook
Finish Zinc
Initial Tension 13 lb
Length 2 in
Material High Carbon Steel
Outside Diameter 0.734 in
Part Type Standard
Rate 88 lbs/in
SKU 0316CS
Sugg Max Deflection 0.43 in
Sugg Max Load 50 lbf
Wind Direction Left
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 316
Ends Machine Hook
Finish Zinc
Initial Tension 5.9 kg
Length 50.8 mm
Material High Carbon Steel
Outside Diameter 18.64 mm
Part Type Standard
Rate 15.41 N/mm
SKU 0316CS
Sugg Max Deflection 10.92 mm
Sugg Max Load 222.4 N
Wind Direction Left
Wire Diameter 2.67 mm
